High Performance 50ohms RF Coaxial Cable (3D-CCS-Al)

Name: High Performance 50ohms RF Coaxial Cable (3D-CCS-Al)
Brand: all-electronics-online.com
SKU: 766078415
Availability: InStock
Rating: 4.6 (89 reviews)

Price:	US $ 0.1-0.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3D-CCS-AL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	3D-CCS-Al RF Coaxial Cable
Inner Conductor:	1.00 Copper Clad Steel
Insulation:	3.00 Foam PE
First Shield:	3.10 Bonded Aluminum Foil
Second Shield:	3.60 Al-Mg Wire Braid
Jacket:	5.00 PVC/PE
Jacket Color:	as Per Request
Impedance:	50ohms
Origin Of Palce:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Al-Mg Wire Braid
Cover Material:	PVC/PE
Type:	Coaxial
Wire Core Material:	CCS
Model:	3D-CCS-Al
Brand:	Ottocable

Product Description

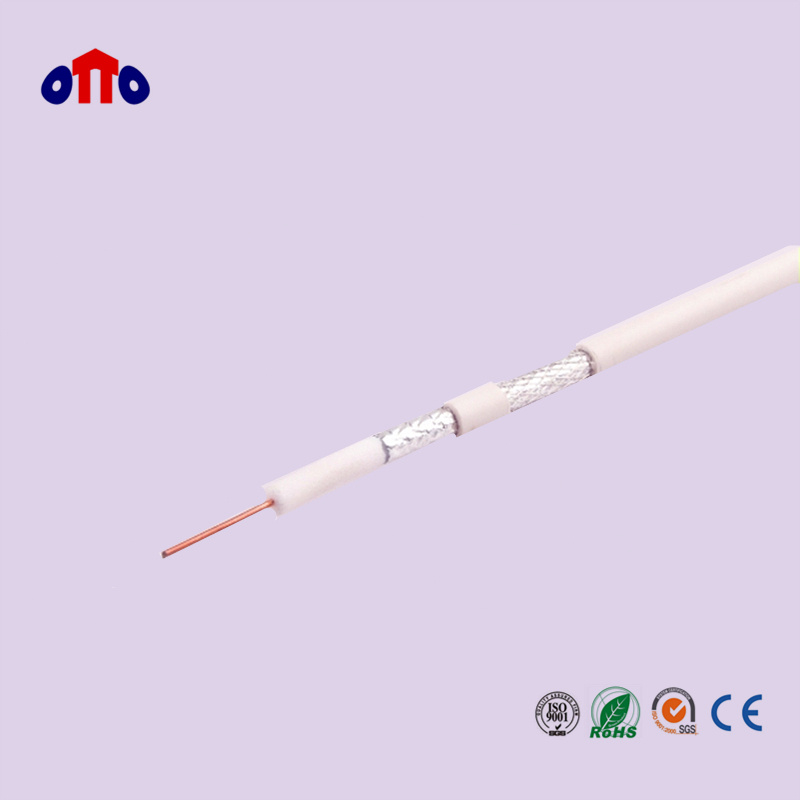

3D-CCS-AL

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Insulation First Shield Second Shield Jacket	Copper Clad Steel Foam PE Bonded Aluminum Foil AL-Mg Wire Braid PVC/PE	1.00 3.00 3.10 3.60 5.00	Per customer's requirements: The second shield could be 64,80,96 or 112 AL-Mg wires braiding; Jacket could be PVC or PE ;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
81.0
1.6
≤1.2 (50----3000MHz)
≥20 (50----3000MHz)
≥75
27.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
200 500 800 1000 2000 2500 3000	15.7 24.9 31.8 36.1 52.7 59.0 65.6

More Ideas
1)  If require conventional construction and materials, please click 3D-FB;
2)  If require lightweight and weldable shield,please click 3D-CCS-TCCA;
3)  If require lightweight and lower price,please click 3D-BC-AL or 3D-CCS-AL;
4)  If require high tensile strength,please click 3D-CCS-AL;
5)  For more 3D-FB assemblies,please click 3D ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Company Link:     http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

Company Information

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
