High Performance 50ohms RF Coaxial Cable 8d-Fb

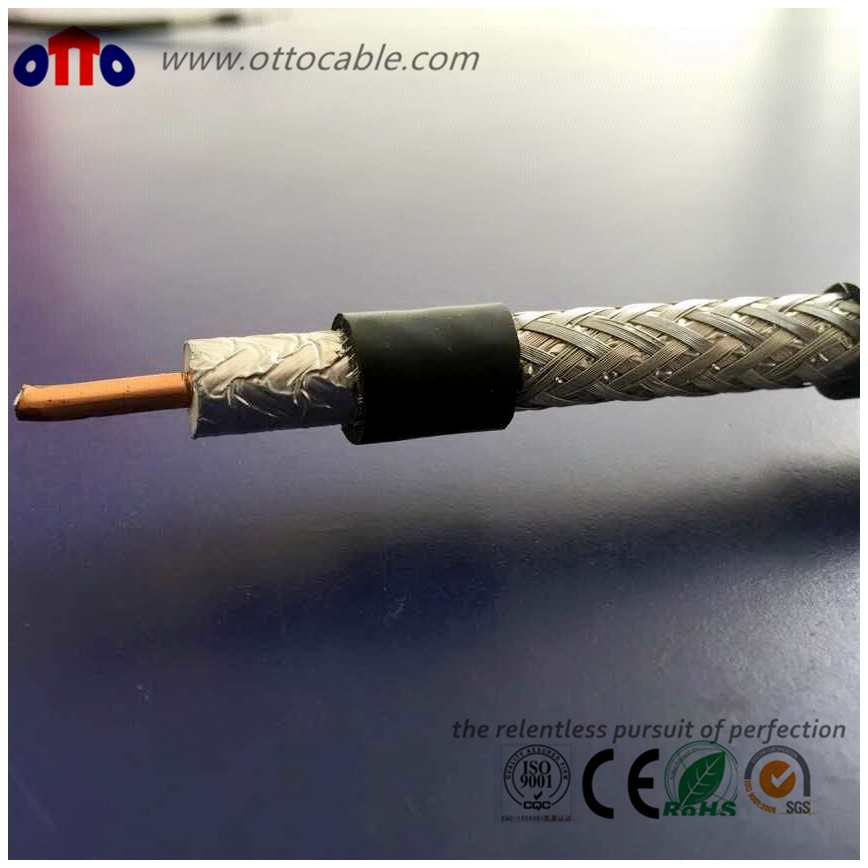

Name: High Performance 50ohms RF Coaxial Cable 8d-Fb
Brand: all-electronics-online.com
SKU: 766877965
Availability: InStock
Rating: 4.6 (72 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	8D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	8d-Fb RF Coaxial Cable
Inner Conductor:	2.80CCA/Bc
Dielectric:	7.80 Foam PE
First Shield:	8.00 Bonded Aluminum Foil
Second Shield:	8.70 Al-Mg Wire Braid/Tc/TCCA
Jacket:	10.60 PVC/PE/LSZH
Jacket Color:	as Per Request
Impedance:	50ohm
Origin Of Place:	Zhejiang, China
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Al-Mg Wire Braid/Tc/TCCA
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Model:	8d-Fb
Brand:	Ottocable

Product Description

8D-FB

Overview
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness, and has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the LMR400 coaxial cable;
·         Custom cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application

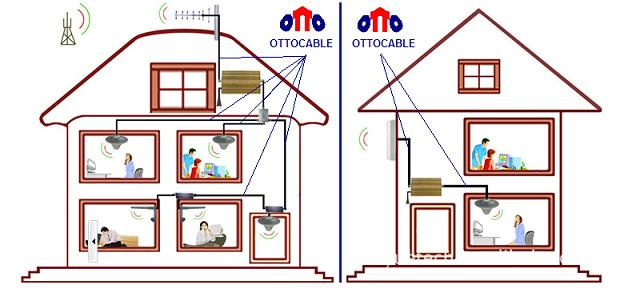

These 50 Ohm 8D-FB coaxial cables can be fixed kinds of connectors,such as N,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Communications RF Coax Cable

8D-FB

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper /CCA Foam PE Bonded Aluminum Foil TC Wire Braid/AL/TCCA PVC/PE/LSZH	2.80 7.80 8.00 8.70 10.60	Per customer's requirements: The second shield could be 128,144 or 168 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Dielectric strength(kV)
V.S.W.R
Return Loss
Screening Effectiveness(db)
Min. Bending Radius (mm)
Operating Temperature(0C)

50±3
82±2
82.0
1.6
≤1.3
≥20
≥80
55.0
-25 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
1200 1500 1800 1900 2000 2200 2500	17.4 19.8 22.1 23.5 25.4 25.9 27.6

More Ideas
1)  If require conventional construction and materials, please click 8D-FB;
2)  If require lightweight and weldable shield,please click 8D-CCA-TCCA or 8D-CCA-TC;
3)  If require lightweight and lower price,please click 8D-CCA-AL or 8D-CCA-TCCA;
4)  For more 8D-FB assemblies,please click 8D ASSEMBLIES;
5)  Any other requirements or queries, please click CONTACT US.
