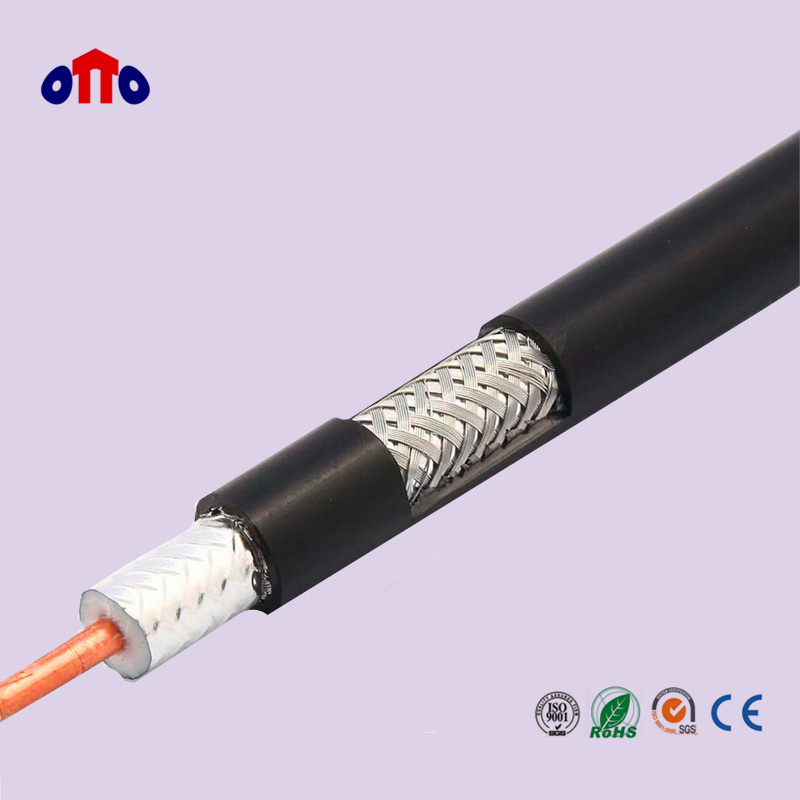

High Performance 50ohms RF Coaxial Cable LMR400

Name: High Performance 50ohms RF Coaxial Cable LMR400
Brand: all-electronics-online.com
SKU: 619691952
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR400 Coaxial Cable
Inner Conductor:	2.74 Bc/CCA
Dielectric:	7.24foam PE
First Shield:	7.39bonded Aluminum Foil
Second Shield:	8.13tinned Copper Wire Braid
Jacket:	10.29PVC/PE/LSZH
Jacket Color:	Black or White
Impedance:	50 Ohm
Outer Packing:	Carton Box, Pull out Box, Pallet
Place Of Origin:	Zhejiang, China (Mainland)
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	RoHS
Cover Material:	PVC/LSZH/PE
Type:	Coaxial
Model:	LMR400
Brand:	Ottocable

Product Description

RF Coaxial Cable(LMR400)

Application
Mainly be used in 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Construction
Inner Conductor: 2.74 BC/CCA
Dielectric: 7.24 FPE
First Shield: 7.39Bonded Aluminum Foil
Second Shield: 8.13Tinned Copper Wire Braid
Jacket: 10.29PVC/PE/LSZH

RF Coaxial Cable(LMR400)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	BC/CCA	0.108	2.74
Dielectric	Foam PE	0.285	7.24
First Shield	Bonded Aluminum Foil	0.291	7.39
Second Shield	Tinned Copper Wire Braid	0.320	8.13
Jacket	PVC/PE/LSZH	0.405	10.29

Electrical Characteristics
Impedance(Ω)		50±3
Impedance(Ω)		78.4
Velocity of Propagation(%)		85.0
Return Loss		≥20
Screening Effectiveness		≥90

Application
Mainly be used in4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

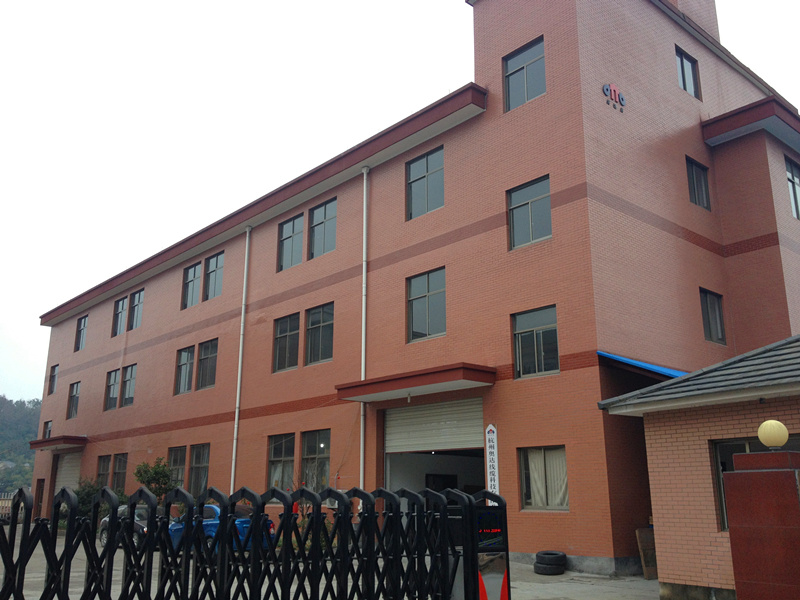

Company Information

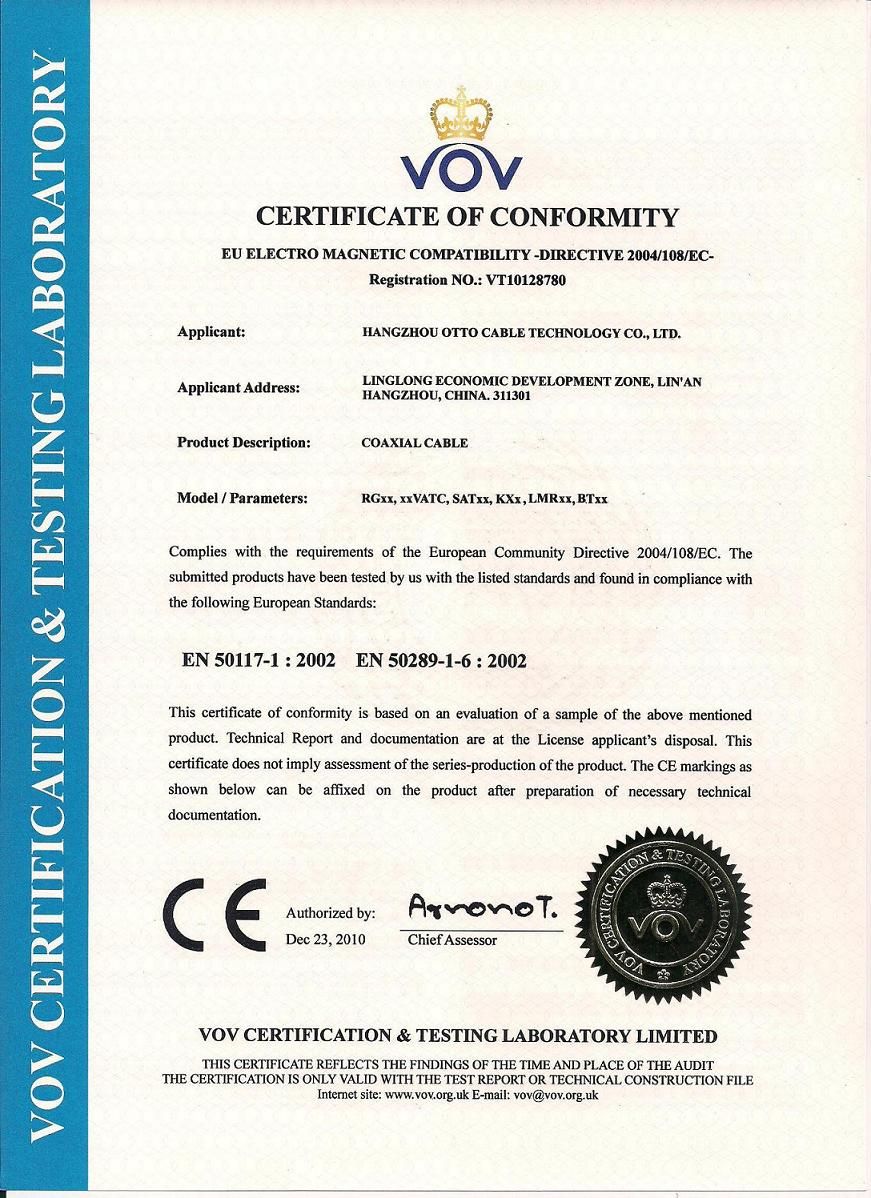

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
