High Performance 50ohms RF Coaxial Cable (LMR500)

Name: High Performance 50ohms RF Coaxial Cable (LMR500)
Brand: all-electronics-online.com
SKU: 619692112
Availability: InStock
Rating: 4.7 (57 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR500 Coaxial Cable
Inner Conductor:	3.61 Bc
Dielectric:	9.4foam PE
First Shield:	9.55 Bonded Al Foil
Second Shield:	10.29 Tc Braid
Jacket:	12.70PVC/PE
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc Wire Braid
Cover Material:	PVC/PE
Type:	Coaxial
Model:	LMR500
Brand:	Ottocable

Product Description

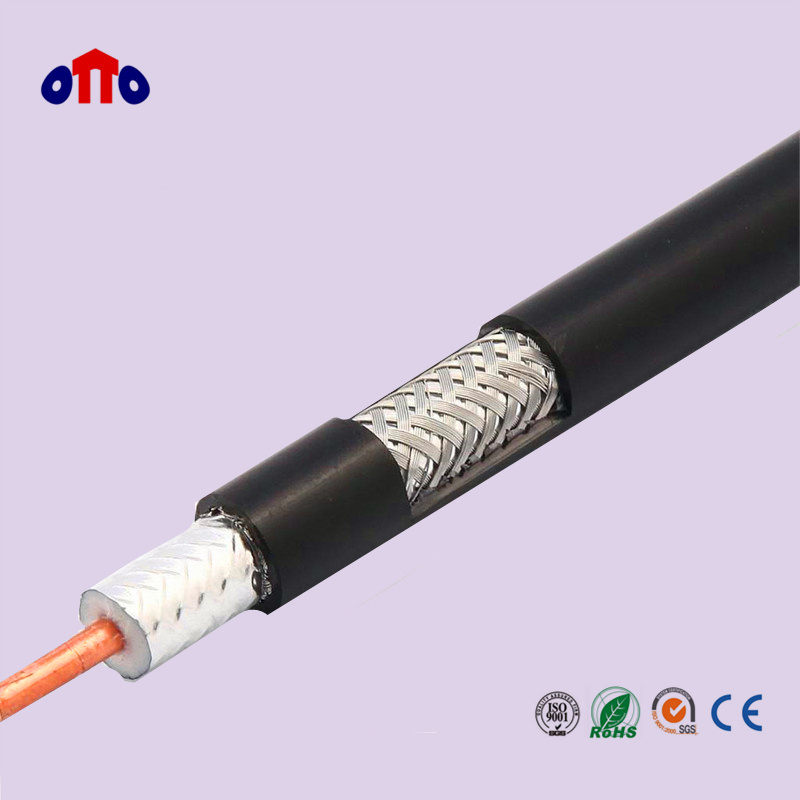

RF Coaxial Cable(LMR500)

Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.

Construction
Inner Conductor: 3.61 BC
Dielectric: 9.4 FPE
First Shield: 9.55 Bonded Al Foil
Second Shield: 10.29 TC Braid
Jacket: 12.70PVC/PE

RF Coaxial Cable(LMR500)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	Bare Copper	0.142	3.61
Dielectric	Foam PE	0.370	9.4
First Shield	Bonded Aluminum Foil	0.376	9.55
Second Shield	Tinned Copper Wire Braid	0.405	10.29
Jacket	PVC/PE	0.500	12.70

Electrical Characteristics
Impedance(Ω)		50±3
Impedance(Ω)		77.5
Velocity of Propagation(%)		86.0
Return Loss		≥20
Screening Effectiveness		≥90

Application
Mainly be used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, aeronautics and space industry, precise instrument.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

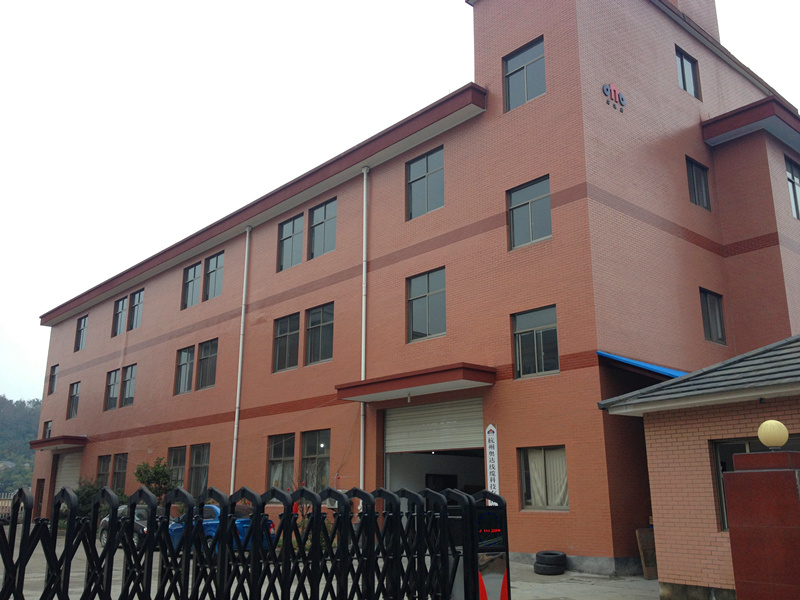

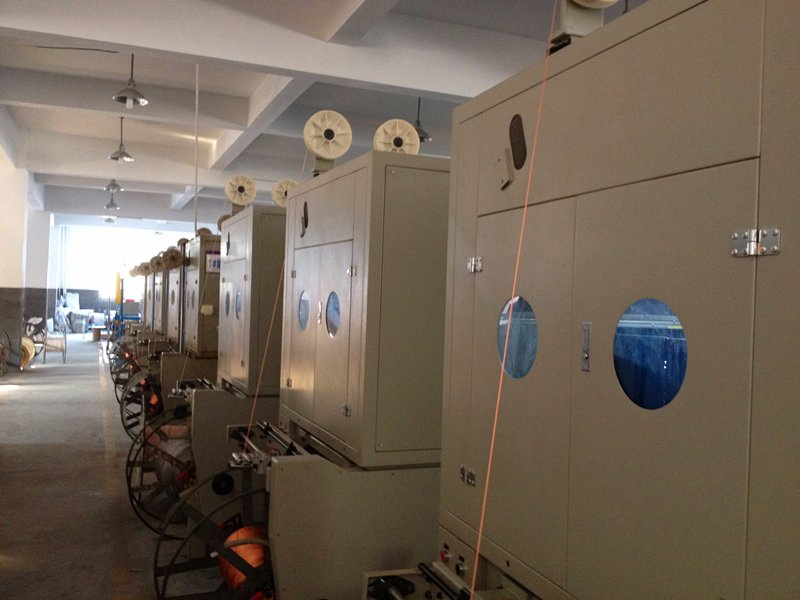

Company Information

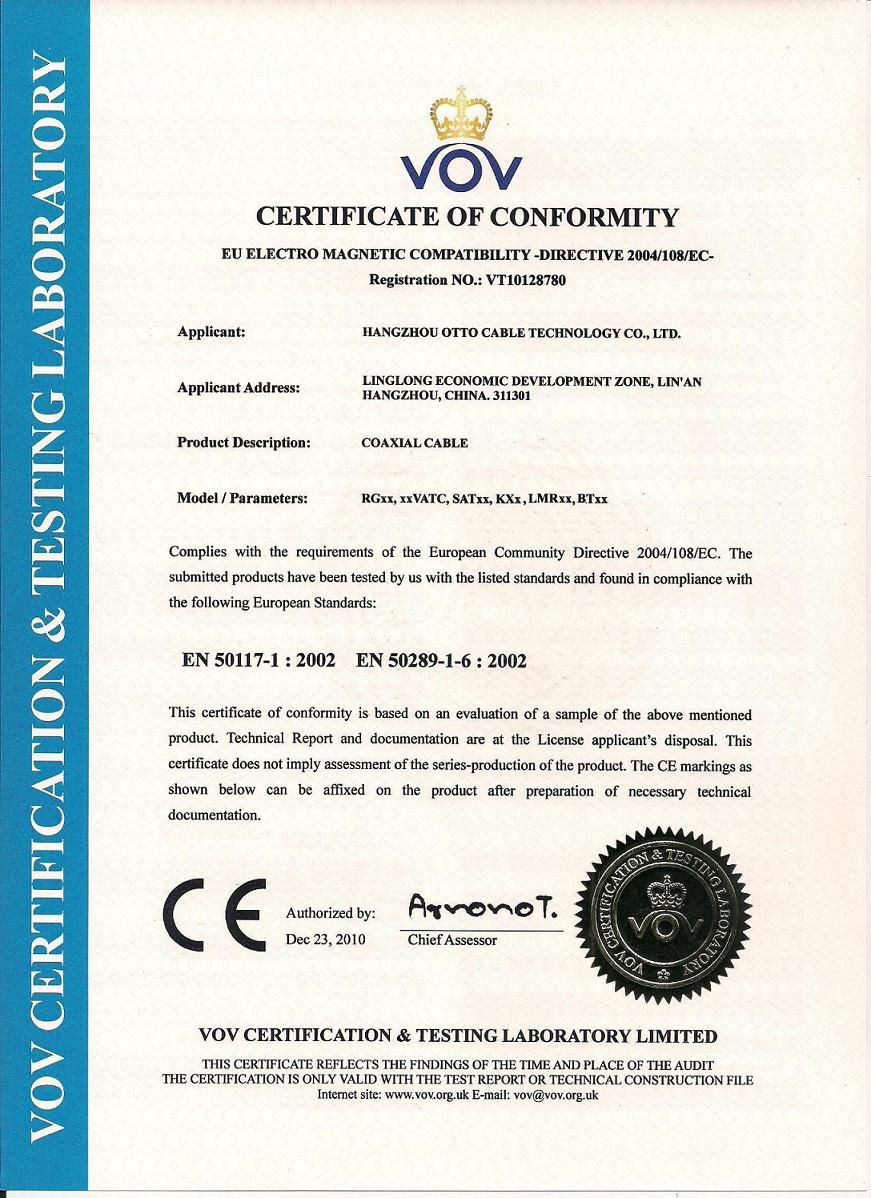

Certifications

Contact us

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
