| Prod Model: |
LPS-5E150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
150W |
| Input Voltage: |
170-250V |
| Output Voltage: |
5V |
| Output Current: |
30A |
| Application: |
LED Module,Strips,Wall Washer,Light Box... |
| IP: |
IP 67 / Customized |
| Name: |

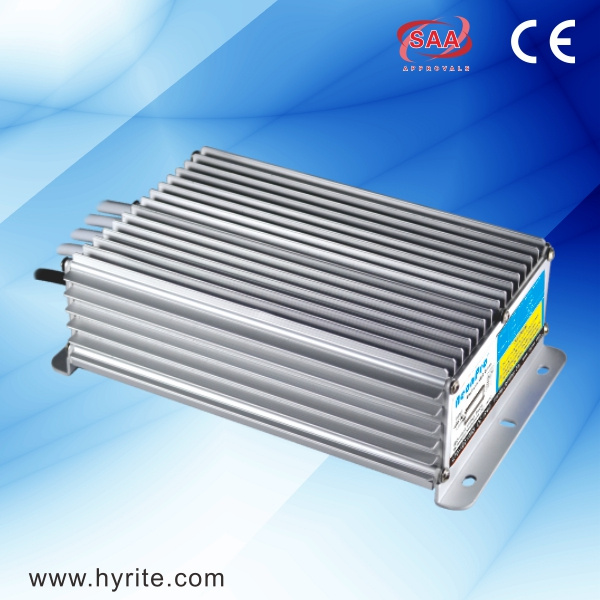

5V 150W Outdoor Waterproof LED Driver |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
AC170-250 |
| Brand: |
Neonpro |
Product Description
5V 150W High Performance Outdoor Waterproof LED Driver with Slim BodyFeature of outdoor waterproof LED Driver :External led power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
Seamless aluminum case, fully sealed & waterproof, IP67
Constant voltage output
100% burn-in test
Technical Specification of outdoor waterproof LED Driver | Model no. | LPS-5E150 |
|---|
| Input voltage | 170-250 VAC 50/60 Hz |
|---|
| Max. power | 150W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low |
|---|
| Efficiency | 86% |
|---|
| AC inrush current(max.) | Cold start, 40A@230VAC |
|---|
| Output voltage | 5VDC ± 5% |
|---|
| Output current | 30A max |
|---|
| Overload protection | 105% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40 degree |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP 67 / customized |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE/SAA |
|---|
| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2 (18cm) |
|---|
| Dimensions(L*W*H) | 283*139*68mm |
|---|
| Weight(kg) | 2.2 |
|---|
| Packing information | 10Pcs/ Carton, G.W23KG |
|---|
Applications of LED Driver* LED module
* LED strip
* LED-neon tube
* Bar light
* Other signage lightingImportant Parameter of LED Driver:* Store Temperature: -25~75° C
* Working Temperature: -25~40° C
* Work environment: Indoor or outdoor installations
* Waterproof Rating: IP67 Projects around the world:Our projects covering banks, shops and buildings all over the world.
* LED Power Supply suitable for Office lighting, Artwork lighting, Display case
* Home lighting
* Commercial lighting, such as down light, underground lamp, Panel light, Spotlight, Wall washer, etc.
* Hotel, Restaurant lighting
* Other public lighting
Our factory and production line:Hyrite is a professional manufacturer of LED power supply and LED module. We have more than 20 years experience in design, development and manufacturing of electronic power supplies. Including waterproof /rainproof/indoor LED power supply for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
(1) Office show
We have more then 300 staffs in our company and cover an area of 15000 in Guangdong, China with additional office in the USA
(2)Professionnal testing machine: SMT, Burn-in test machine...
(3) Production lines:
There are 12 production lines in our factory.
Our Exhibitions:Sign China; LED China; Guangzhou International Lighting Exhibition; Shanghai Int'l Lighting Expo; Light India; Hong Kong International Lighting Fair.
Shipping Method:* Ocean or Air transportation
* International Express:DHL FedEx TNT UPS EMS etc.Our Service & Advantages: * 24 hours Service for customers all over the world
* More than 20 years sales and manufacturing experience for LED Power Supply and Neon transformers in China.
* All of our products are sold to overseas market.
* Our products passed CE ROHS SASO TUV SAA UL approval. Welcome to our factory!Only 45 mins away from Guangzhou International Baiyun Airport.Contact Info:Company Name: Hyrite Lighting Co. (known as NeonPro)Address:15 Junye RD, Shishan Industry Zone C, Shishan, Nanhai, Guangdong,P.R.China, 528225Sales: +86 13434171059 Miss.SnowFax: +86-757-81200369
Tel: +86-757-81200188(10 lines)
Customer Service: 400 660 8083 (China), +86-757-81200368(Overseas)
Website: www.hyrite.com
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
