High Performance 75ohms Coaxial Cable (RG59B/U)

Name: High Performance 75ohms Coaxial Cable (RG59B/U)
Brand: all-electronics-online.com
SKU: 619748642
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 0.1-0.3/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG59B/U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg59b/U Coaxial Cable
Inner Conductor:	0.58 CCS
Dielectric:	3.70 Solid PE
Out Conductor:	4.50 Copper Braid 95% Coverage
Jacket:	6.10 PVC
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial
Wire Core Material:	Copper Clad Steel
Model:	Rg59b/U
Brand:	Ottocable

Product Description

MIL-C-17 Coaxial Cable(RG59B/U)

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Construction
Inner Conductor: 0.58 CCS
Dielectric: 3.70 Solid PE
Out Conductor: 4.50Copper Braid 95% coverage
Jacket: 6.10PVC

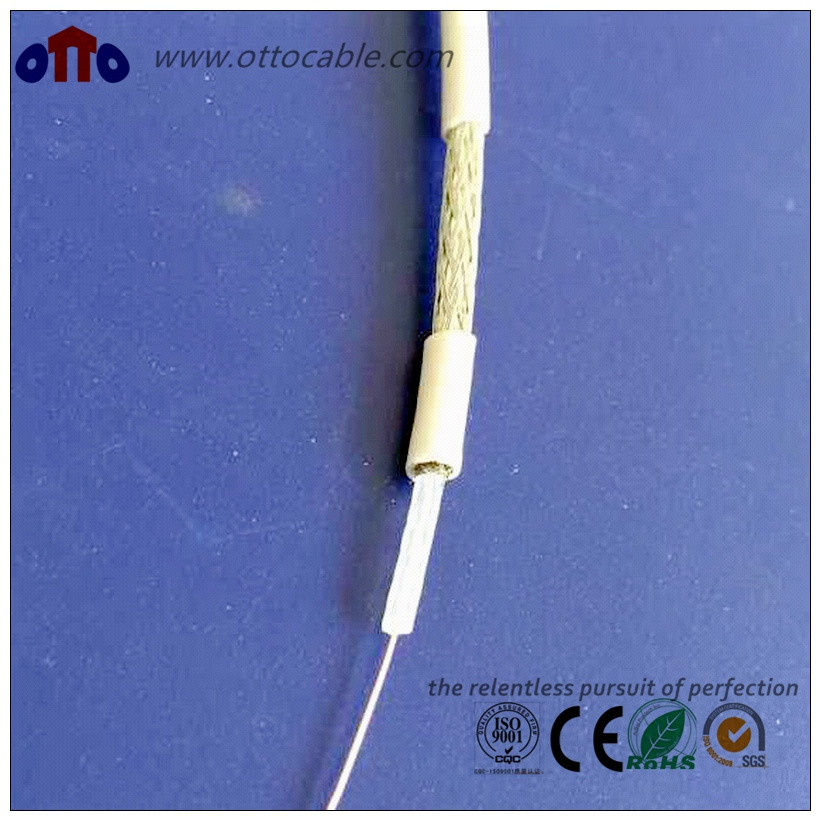

RG Coaxial Cable(RG59B/U)
Construction
Item	Material	Diameter(Inch/mm)
Inner Conductor	CCS	0.023	0.58
Dielectric	Solid PE	0.146	3.70
Out Conductor	Copper Braid 95% coverage	0.177	4.50
Jacket	PVC	0.240	6.10

Electrical Characteristics
Capacitance(pF/m)		67.0
Impedance(Ω)		75.0
Velocity of Propagation(%)		66.0
Conductor DCR(ohm/km)		160.8
Outer Shield DCR(ohm/km)		8.5
Max Operating Frequency(Mhz)		1000.0
Max Operating Voltage(VRMS)		1700.0
Operating Temperature(0C)		-40 to +85

Application
These kind of cables are serving for existing and next generation TV network and security monitoring and control systems.

Company Link: http://ottoding.en.made-in-china.com/

Packaging & Shipping

Our Services

Our company can fabricate coaxial cable assemblies for customer according to the customer's requirement ,like different length,different type connector and so on. We also can provide the detailed quality test report so that the performance is fine.

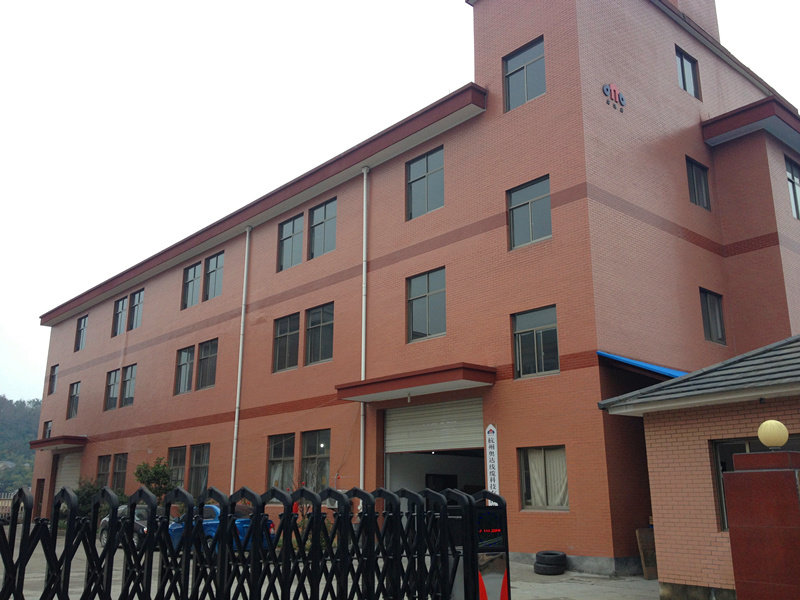

Company Information

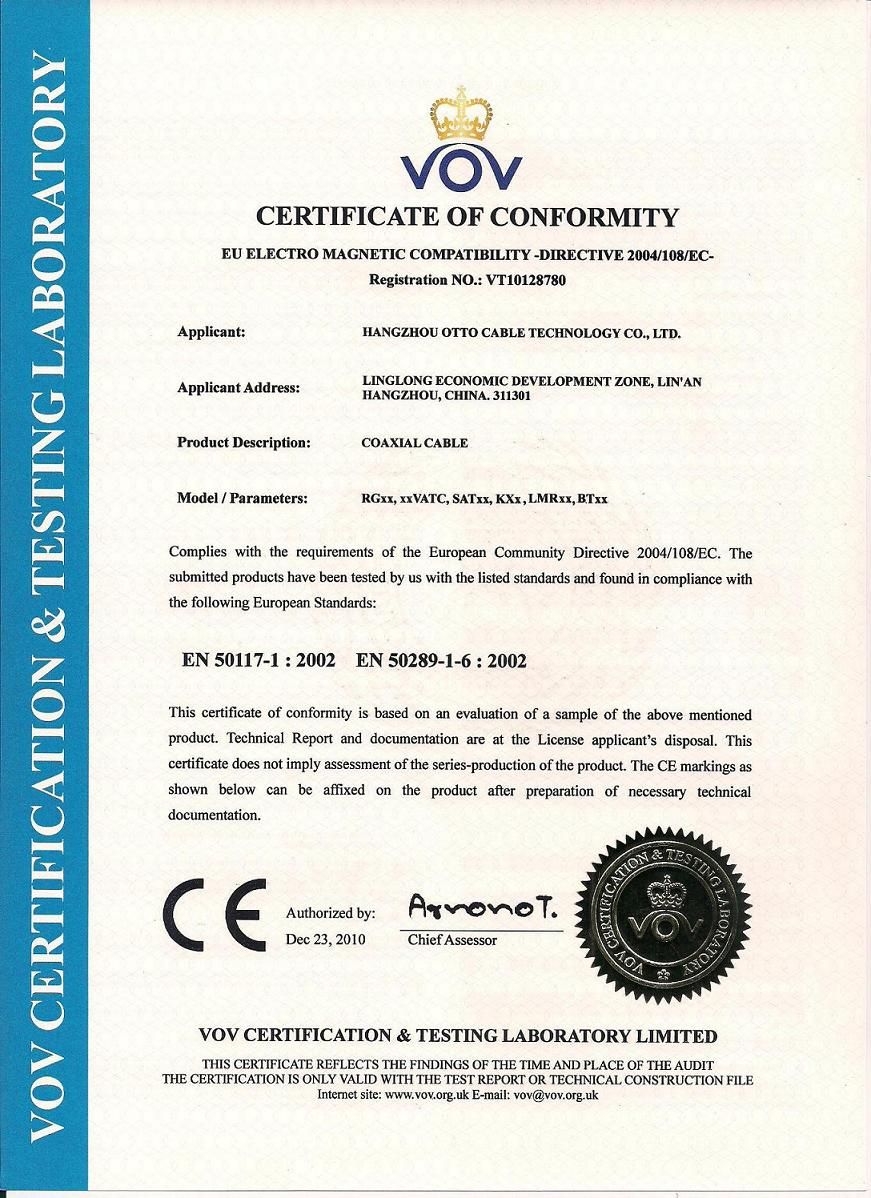

Certifications

Contact us

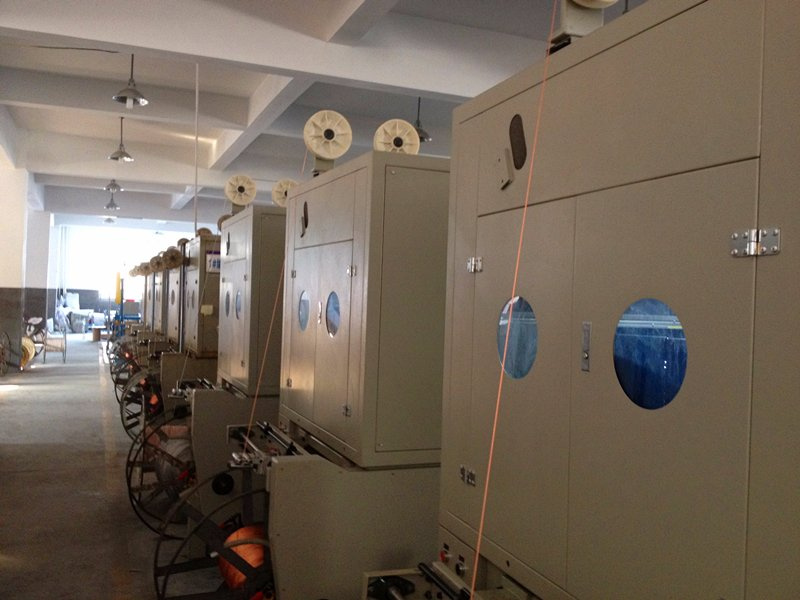

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
