High Performance Cjx2-0910 Cjx2 Series AC Magnetic Contactor

Name: High Performance Cjx2-0910 Cjx2 Series AC Magnetic Contactor
Brand: all-electronics-online.com
SKU: 820098945
Availability: InStock
Rating: 4.5 (127 reviews)

Price:	US $ 3.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-0910
Number Of Contact:	3p+No
Frenquency:	50/60Hz
Life Time (Electrical):	1 Million Times
Standard:	IEC60947

Product Description

Product Description

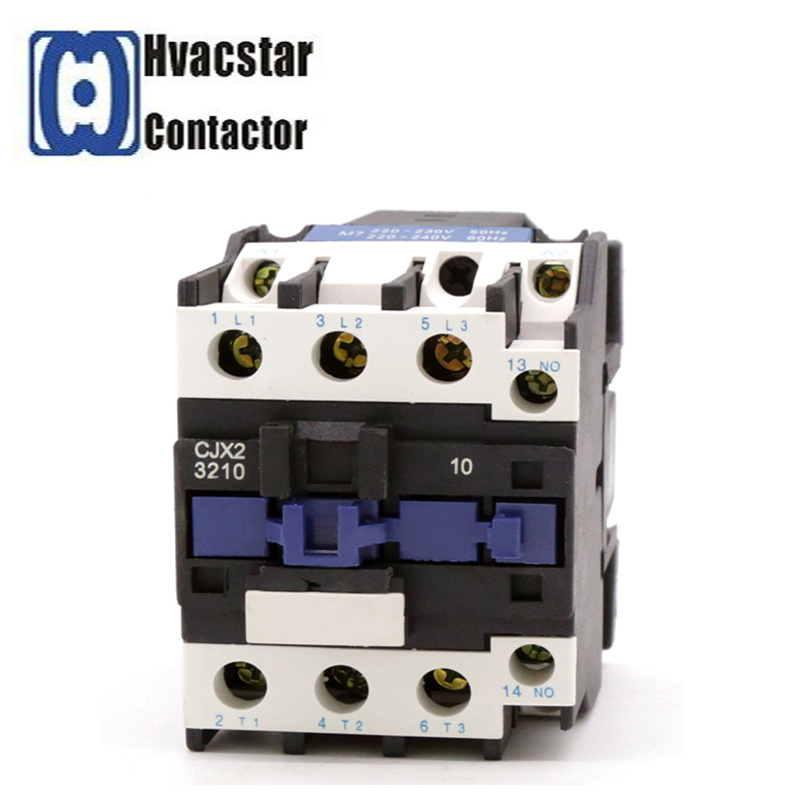

CJX2 series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay. It is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-4 and GB14048.4.

Product Specification

Type	Rated heat current (A)	Rated working current (A)		AC3 capacity of three-phase squirrel-cage motor AC3(KW)
Type	Rated heat current (A)	380V	660V	380V	660V
CJX2-9	20	9	6.6	4	5.5
CJX2-12	20	12	8.9	5.5	7.5
CJX2-18	32	18	10.6	7.5	9
CJX2-25	40	25	18	11	15
CJX2-32	50	32	21	15	18.5
CJX2-40	60	40	34	18.5	30
CJX2-50	80	50	39	22	33
CJX2-65	80	65	42	30	37
CJX2-80	125	80	49	37	45
CJX2-95	125	95	49	45	55

Matching coil volts

Voltage volts

110

220

230

240

380

400

415

440

500

660

50HZ

60HZ

50/60HZ
