High Performance Control Cabinet Frequency Inverter

Name: High Performance Control Cabinet Frequency Inverter
Brand: all-electronics-online.com
SKU: 818551375
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 120/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QD800
Dlivery Detail:	3~7 Days After Payment
Warranty:	12 Months
Output Power:	0.75kw-630kw
Output Voltage:	0~380/220VAC±15%
Output Frequency:	0~600 Hz
Output Current:	2.5A-253A
Application:	High Frequency Converter Transducer
Output Type:	Single
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Ozer

Product Description

QD800 series high-performance vector control technology, low speed high torque output, good dynamic characteristics, superior overload capacity, increase the user-programmable function and background monitoring software, communication bus, support for multiple PG card, combinations feature-rich, powerful, stable performance.
Specifications: Single phase 220v 0.4kw-2.2kw 0-500HZ
Three phase 380v 0.7kw-450kw 0-500HZ
Product Advantages:

1.It supports communication via Modbus-RTU,PROFIBUS-DP, CANlink and CNAopen
2.It support three control modes,namely,sensorless flux vector control(SVC),closed-loop vector control(FVC) and V/F control.
3.The background monitoring software helps to achieve function of parameter upload&download and a real-time oscilloscope.
4.The QD80pc1 programmable card enables you to write programs in ladder diagram
Its programming environment is compatible with that of the QD series PLC
5.we care about not only your investment income,but also the running cost and maintenance expenses. We will always engage in making you obtain the most return with the lowest investment to realize your profit maximization.

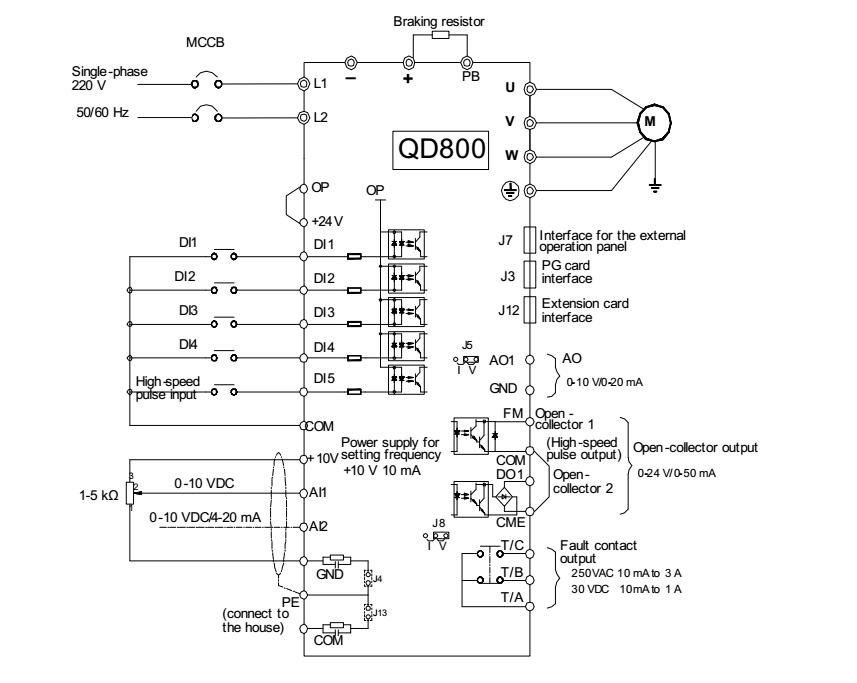

Wiring of QD800 series control circuit

Technology date:

Project		Specification
The basic function	The max frequency	Vector frequency scope:0-500Hz
	The max frequency	V/F frequency scope:0-500Hz
	Carrier frequency	0.5kHz-16kHz(self-adjusting)
	The frequency resolution of input	The setting figure: 0.01Hz
	The frequency resolution of input	*The simulation setting:(The max frequency)0.025%**
	The control mode	SVC
		FVC
		V/F control
	Start up torque	Type G:0.5Hz/150% (SVC); 0Hz/180% (FVC)
	Start up torque	Type P:0.5Hz/100%
	Overload capacity	Type G:The duration of 150% rated current is 60s The duration of 180% rated current is 3s
	Overload capacity	Type P:The duration of 120% rated current is 60s The duration of 150% rated current is 3s
	Torque Boost	AUTO-Torque Boost
	Torque Boost	HM-Torque Boost:0.1%-30%
	DC braking	DC braking frequency:0.00Hz-The max frequency
		Duration:0.0s-36.0s
		Current:0.0%-100.0%
	JOG control	The range of frequency:0.00Hz-50.00Hz
	JOG control	The duration of acceleration and deceleration:0.0s-6500.0s
	Simple PLC, Multi-velocity control	In the control of built-in PlC or terminal,there are 16 velocities.
	Built-in PID	Be easy to control the closed-loop control system
	AVR	Keeping the output voltage stability,when grid voltage instability.
	The control of over voltage and current	Auto-limited the voltage and current , preventing trip result from often brake-make.
	Fast current limiting function	Minimizing flow failures, protect the normal operation of the inverter
	Torque limit and control	"Excavator" characteristics, the torque limit automatically during running, prevent frequent over-current trip; The torque control closed-loop vector model is achieved
Individualized function	Outstanding features	Based on current vector control technology of asynchronous motor control
	Instantaneous stop constantly	Instantaneous power failure through load feedback energy compensation voltage is reduced, maintain frequency converter in a short period of time to continue running
	Virtual IOs	Five groups of virtual DIDO, suggested that logic control can be realized
	Timing control	Timing control function: set time range 0.0 Min to 6500.0 Min
	Motor switch	Two groups click parameters, which can realize two motor switch control
	Support multithreading bus	Support: four kinds of fieldbus Modbus, profibus-dp, CANlink, CANopen
	Motor overheating protection	Optional IO expansion card 1, click on the temperature sensor input analog input AI3 acceptable (PT100, PT1000)
	Support more encoder	Support the difference, open collector, the sale, rotating transformer, such as is cosine encoder
	A user programmable	Optional user programmable card, can realize the secondary development, compatible with common PLC programming way
	Strong background software	Support the inverter parameters and virtual oscilloscope function operation. Virtual oscilloscope can be used for frequency converter internal state graphic monitoring
The environment	Use place	Indoor, is not subject to direct sunlight, no dust, corrosion gas I, combustible gas, oil mist, water vapor, water or salt, etc
	Use place	Less than 1000 m
	The environment temperature	Minus 10 degrees Celsius to above 40 degrees Celsius zero (ambient temperature in 40 ~ 50 degrees, use the lower it)
	humidity	Less than 95% RH, no water condenses
	vibration	Less than 5.9 m per square (0.6 g)
	Storage temperature	To the above 60 degrees Celsius zero minus 20 degrees Celsius
	The IP rating	IP20
	Pollution levels	PD2
	The power distribution system	TN,TT
Project		Specification
The basic function	The max frequency	Vector frequency scope:0-500Hz
	The max frequency	V/F frequency scope:0-500Hz
	Carrier frequency	0.5kHz-16kHz(self-adjusting)
	The frequency resolution of input	The setting figure: 0.01Hz
	The frequency resolution of input	*The simulation setting:(The max frequency)0.025%**
	The control mode	SVC
		FVC
		V/F control
	Start up torque	Type G:0.5Hz/150% (SVC); 0Hz/180% (FVC)
	Start up torque	Type P:0.5Hz/100%
	Overload capacity	Type G:The duration of 150% rated current is 60s The duration of 180% rated current is 3s
	Overload capacity	Type P:The duration of 120% rated current is 60s The duration of 150% rated current is 3s
	Torque Boost	AUTO-Torque Boost
	Torque Boost	HM-Torque Boost:0.1%-30%
	DC braking	DC braking frequency:0.00Hz-The max frequency
		Duration:0.0s-36.0s
		Current:0.0%-100.0%
	JOG control	The range of frequency:0.00Hz-50.00Hz
	JOG control	The duration of acceleration and deceleration:0.0s-6500.0s
	Simple PLC, Multi-velocity control	In the control of built-in PlC or terminal,there are 16 velocities.
	Built-in PID	Be easy to control the closed-loop control system
	AVR	Keeping the output voltage stability,when grid voltage instability.
	The control of over voltage and current	Auto-limited the voltage and current , preventing trip result from often brake-make.
	Fast current limiting function	Minimizing flow failures, protect the normal operation of the inverter
	Torque limit and control	"Excavator" characteristics, the torque limit automatically during running, prevent frequent over-current trip; The torque control closed-loop vector model is achieved
Individualized function	Outstanding features	Based on current vector control technology of asynchronous motor control
	Instantaneous stop constantly	Instantaneous power failure through load feedback energy compensation voltage is reduced, maintain frequency converter in a short period of time to continue running
	Virtual IOs	Five groups of virtual DIDO, suggested that logic control can be realized
	Timing control	Timing control function: set time range 0.0 Min to 6500.0 Min
	Motor switch	Two groups click parameters, which can realize two motor switch control
	Support multithreading bus	Support: four kinds of fieldbus Modbus, profibus-dp, CANlink, CANopen
	Motor overheating protection	Optional IO expansion card 1, click on the temperature sensor input analog input AI3 acceptable (PT100, PT1000)
	Support more encoder	Support the difference, open collector, the sale, rotating transformer, such as is cosine encoder
	A user programmable	Optional user programmable card, can realize the secondary development, compatible with common PLC programming way
	Strong background software	Support the inverter parameters and virtual oscilloscope function operation. Virtual oscilloscope can be used for frequency converter internal state graphic monitoring
The environment	Use place	Indoor, is not subject to direct sunlight, no dust, corrosion gas I, combustible gas, oil mist, water vapor, water or salt, etc
	Use place	Less than 1000 m
	The environment temperature	Minus 10 degrees Celsius to above 40 degrees Celsius zero (ambient temperature in 40 ~ 50 degrees, use the lower it)
	humidity	Less than 95% RH, no water condenses
	vibration	Less than 5.9 m per square (0.6 g)
	Storage temperature	To the above 60 degrees Celsius zero minus 20 degrees Celsius
	The IP rating	IP20
	Pollution levels	PD2
	The power distribution system	TN,TT

Application :
It is used in wire drawing machine, film winding, coating machine, CNC machine tools, weaving machines, jacquard machines, fans, pumps, chemical fiber, textile, synchronous interaction, injection molding machines, lifting, elevator, machine tools, rolling mills, tube wire processing , lifting, lifting equipment, mill.

Packing and shipping:
Trade terms: FOB, EXW, CIF, CFR,FCA

Payment condition: TT, Western Union, PayPal, LC

Delivery time: 3-15days

Package: Standard carton package
Shipment: By sea, by air, or by express delivery like DHL and FeDex
