| Prod Model: |
MS-square |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usages: |
Cooling Tower |
| Energysaving: |
Save 30-50% |
| Lower Noise Level: |
Standard Ms-Round Model by 7~10 dB. |
| Port: |
Xiamen,Fujian |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Certification: |
SGS |
| Brand: |
Jumsen |
Product Description
JUMSEN COOLING TOWER , SAVE 30%-50% OF POWER
Jumsen series MSN cooling towers have been designed for cross flow type with Low Noise Motor and Fan. The compact design is suitable for Equipment Cooling, Industrial Process Cooling and Air Conditioning.
Product Features
Side Plate & Inlet Louver
Fiberglass Reinforced Polyester (F.R.P.) side plates and PVC inlet louver have been designed both for anti-acid, anti-alkaline, weather-proof, anti-corrosive and resistance to Ultra-violet, non-twisted and non-deformed.
Fan Drive & Fan Blade
The axial fan design is applied and can be adjusted based on actual operation air volume. The speed reducer is driven with multi-belts to ensure that there is larger contact area, low vibration and smooth transmission. The belts are protected with FRP casing so that they are not wetted and not gliding.
Lower Power Consumption
High efficient hydrodynamics "Venturi tube" fan stack with low resistance filling facilitates good ventilation and reduction of fan motor power to save electrical energy.
Water Sump
The water sump is made of FRP material and externally supported with hot-dipped-galvanized steel. The piping of water sump includes outlet water, auto filler pipe, quick filler pipe, over-flow pipe and drain pipe. The stainless steel suction strainer is installed on outlet pipe to block alien objects from entering. The basin partitions can be additionally installed for multiple cells so that the tower can be cleaned or maintained for the individual cell or partially, without affecting the operation of the whole system.
Water Distribution System
Hot water basins are installed on two sides of tower and distribution water falls by gravity into tower with low water pressure. This design leads the water to spread into the fillings evenly and achieve the best efficiency of heat exchanging. FRP distribution box inside can lower the inlet water pressure to prevent the water from splashing.
Efficient Performance
Unique design of vacuum-formed & round-chorded filling with ripple surface facilitate even spread & long duration of water drop and free of deposits & scales.
Light Weight, Less Space & Multi-Cell Installation
Compared with other types of cooling tower, R-LC features lighter operational weight and less installation space. Also, the combinative multi-cell structure is suitable for large cooling requirements and future expansion.
Ladder & Access Door
The access door and walkway equipped inside the tower are to ensure the convenience of maintenance and cleaning. The ladder provides accessibility for maintenance to operating fan, motor, and speed reducer.
Easy of Piping Works
Multiple-cell design with independent water basin, all piping connection, except inlet pipe, are gathered on the basin, Piping are reversible to meet with the site condition. Common water basin can be furnished as an option, cell partition for independent operation of each cell is also available as option.
contact detail
Name : Mr.Bryan Chen
Mobile : 86 - 592 - 5970673
If you have any question or requirements, please don't hesitate to contact us.Thank you for browsing our website and reading our products .

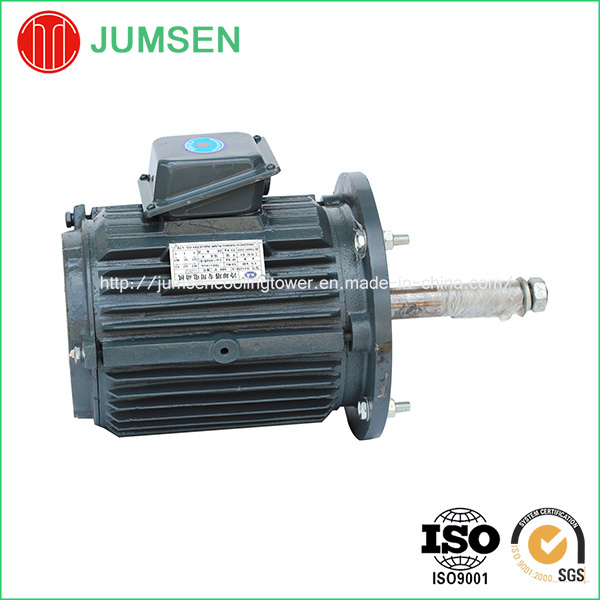

| Products name | industrial Cooling Tower Electric Fan Motor |
| Products Design | The compact design is suitable for Equipment Cooling, Industrial Process Cooling and Air Conditioning. |
| Services | We can supply comprehensive service for you with professional production, sales, shipping and after-service team. |
Jumsen Machinery Co., Ltd. Was founded in 2005. Our business include manufacture, sales, installation, maintenance of cooling tower. The company has been successful in China for over 10 years. With over 10 years technological experiences in the cooling tower industry, our cooling tower products are received high reputation in China for applications including:
Comfort Cooling - HVAC
Process Cooling - Industrial
Jumsen manufactures various types of cooling tower ranging from bottle type and square type counter flow cooling tower, square type cross flow cooling tower; CTI (Cooling Technology Institute) certified cooling tower, to a newly innovated energy saving cooling tower that save 30-50% of electricity consumption. In recent years, we have introduced the latest computer technology to assist in design, modelling, and analysis (on material, structure, capability). Uncompromising precision is what guarantees our clients the greatest economic benefits for their investment in cooling towers.
Our cooling towers are designed with high performance and an eco-friendly operation in mind. Jumsen has achieved great success in energy-saving, noise reduction, environmental friendly, quality improved and cost reduction of cooling towers. Jumsen is the only manufacture who has set perfect appraisal system of technological ability of cooling towers.
Owing to excellent quality and advanced management, Jumsen has not only been awarded the ISO9001 certificate, but also acquired the performance certificate of C. T. I. Meanwhile, series products of Jumsen like MS square cross flow cooling tower have been praised as "reliable products" by China Cooling Institute. Various honours are enough to prove that Jumsen's cooling towers have advanced technology and excellent quality.
