| Prod Model: |
Z900E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Altitude: |
Lower Than 1000m |
| Size: |
Compact Size |
| Control Type: |
Vector Control |
| Certification: |
CE ISO |
| Input Power380V: |
0.75~160kw |
| Startup Torque: |
G Type 0.5Hz/150% |
| Protection: |
Over Voltage |
| Input Power 220V: |
0.4-3.7kw |
| Export Markets: |
Global |
| Output Frequency: |
0~400Hz |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Current |
| Output Type: |
1/3 Phase |
| Switch Mode: |
Vector Control |
| Function: |
Multifunctional |
| Brand: |
Machtric |
Product Description
Product Description

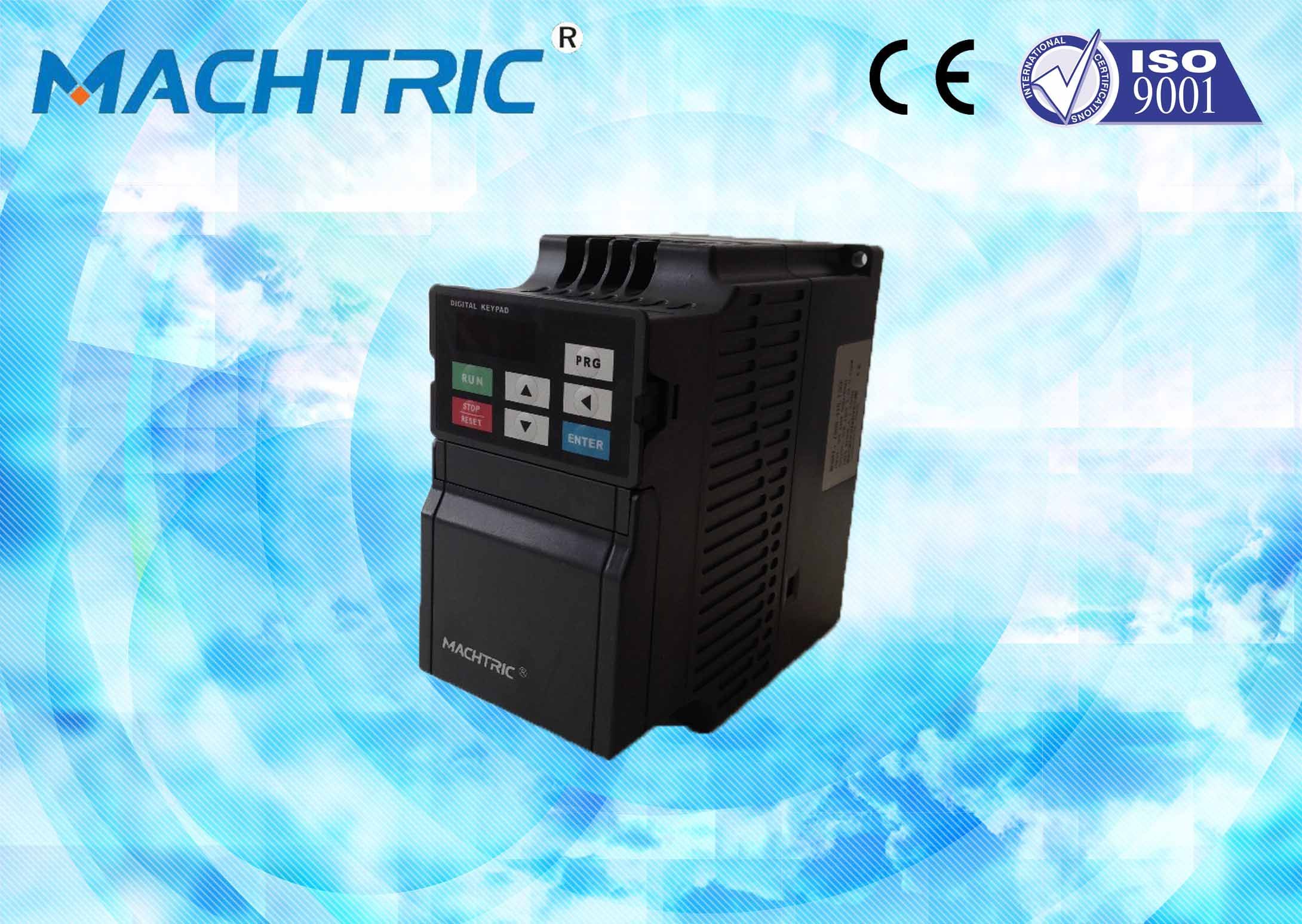

Z900E series Micro High-performance vector inverter
Application of Z900
* Food machinery: dumpling machine, mixer, encrusting machine, pastry machine
* Woodworking machinery: polishing machine, grinding machine, engraving machine
*CNC machines, treadmills, grinders, drilling machines, coating machines
*Small pumps, blowers, conveying equipment
*Industrial washing machines. centrifuges, air compressors, stone cutting machine.....
products specification:
Items |
Z900E |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V,380V:0~380V |
| Frequency Range | 0.10`400.00Hz |
| Control method | Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| Other Functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| Environment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
frequency inverter features:
· High precision", "high performance", "high cost-effective"
· High control precision;
· Rapid torque response;
· High starting torque;
· Various vector controls of motors are available;
· Diversified menu display modes;
· Function of built-in timer;
· Built-in virtual time-delay relay;
· Function of built-in operating module;
· Function of rapid current limiter;
· Excellent capability of power drive control;
factory:
- Monthly production capacity more than 10000 units.
- Customized specification is accepted.
- implement strict quality testing and control procedure to make superior quality.
- Certification:ISO 9001,ISO14001,OHSAS18001 & CE
- 20 years experience.
- Reasonable price and punctual delivery time
- 70-80 R & D personnel have many years experience
- Received the National Invention Award
Any interested in our items, don't hesitate to contact me.
