| Prod Model: |
YJ82 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Scope Of Application: |
Home |
| Model Number: |
Yj82 |
| Voltage: |
110-240V |
| Frequency: |
50/60Hz |
| Input Power: |
65W |
| Application: |
Moving Machinery |
| Structure: |
Electromagnetic |
| Certification: |
Ce/RoHS/VDE/TUV |
Product Description

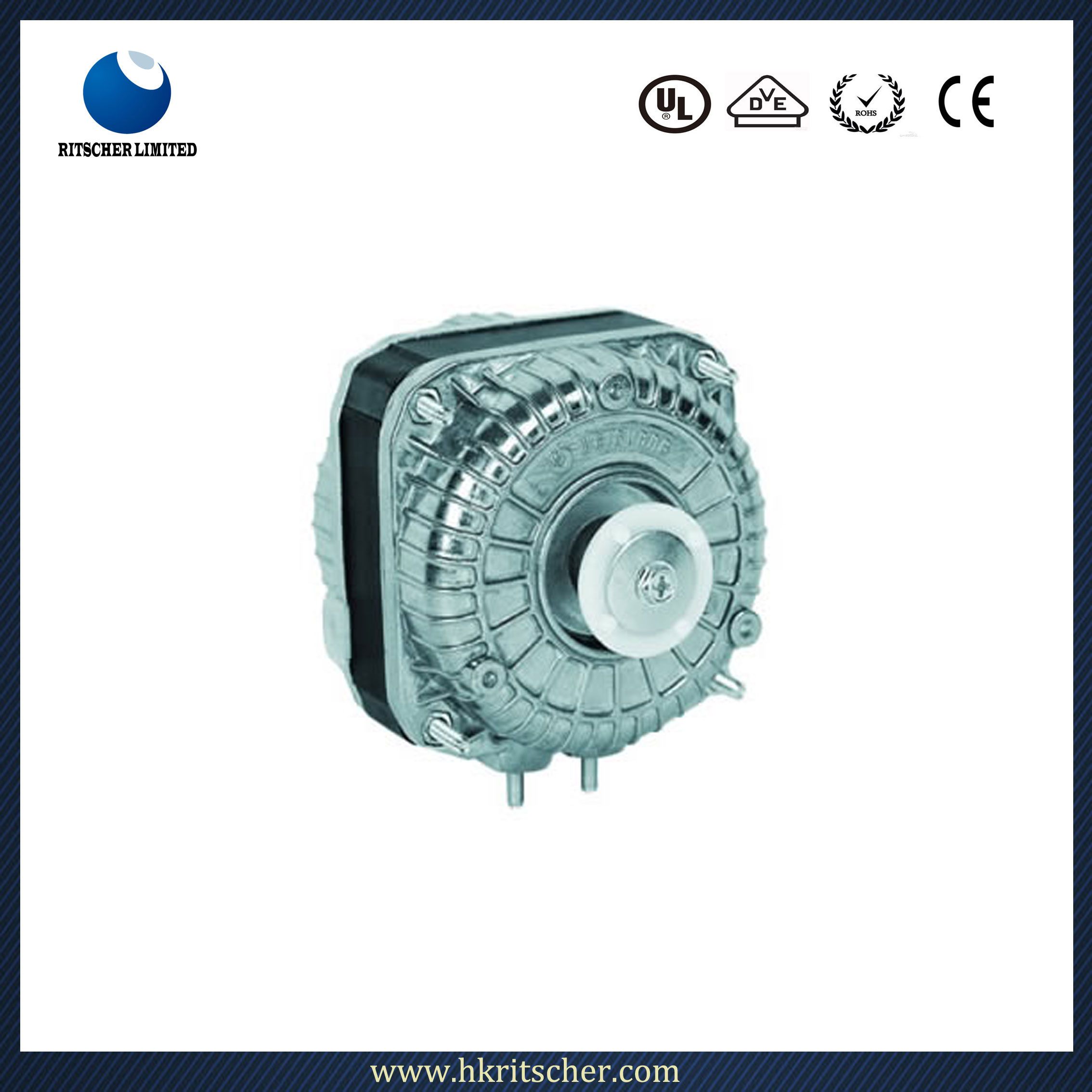

Shaded pole motor 82 series 82-19 typical used on Refrigerator,Ice Chest,Condensing plant,Ventilator Etc
Voltage(V):110-240
Frequency:50/60Hz
Current(A):0.60
Input Power:65W
Torque:100mN.m
Diameter of shaft:6-8mm optional
length of shaft :optioanl based on customer's requirment

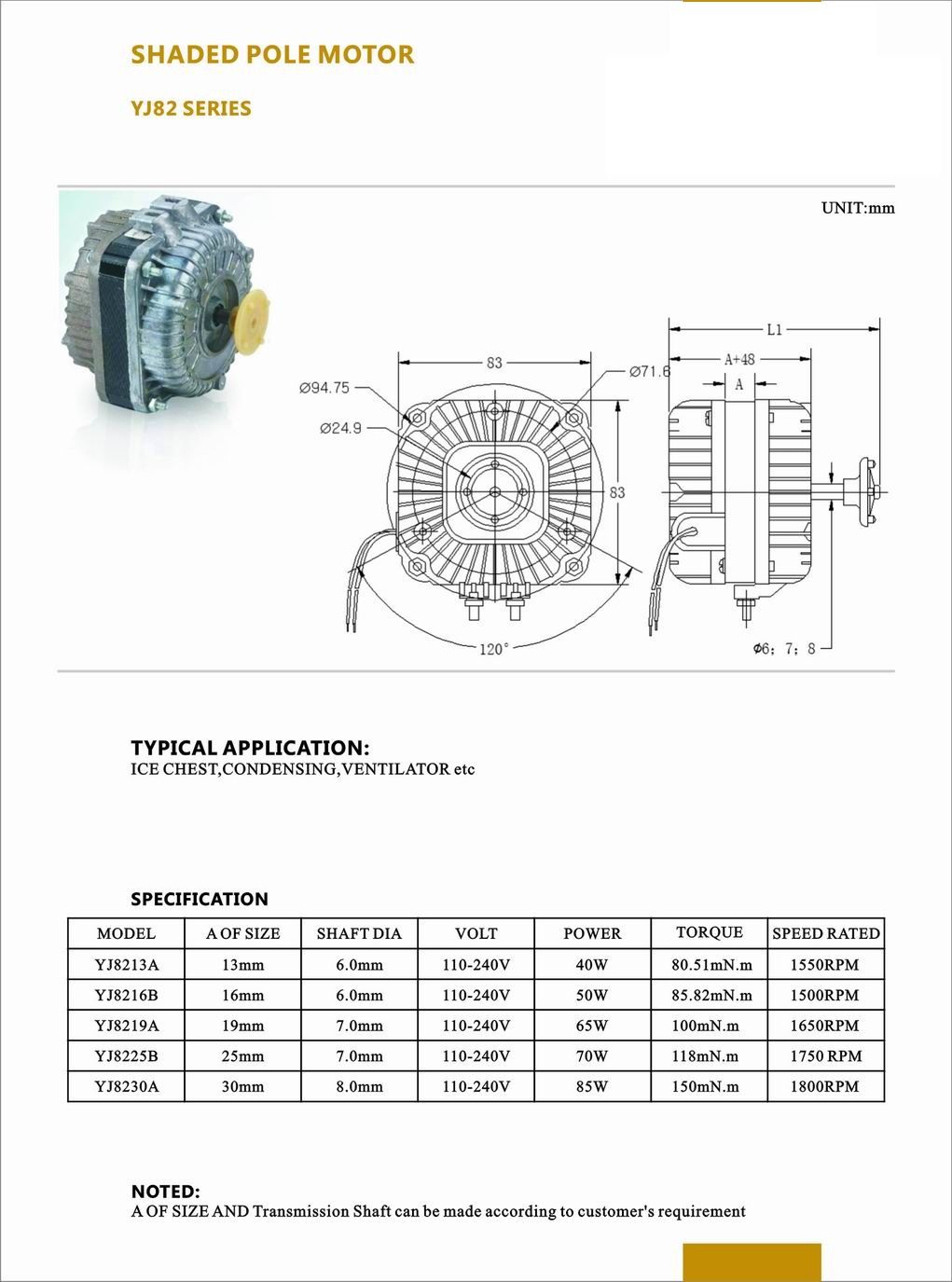

MODEL | STATOR SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) | SPEED RATED |
YJ8213 |
13mm |
5mm |
110-240V |
40W |
80.51mN.m |
1550RPM |
YJ8216 |
16mm |
6mm |
110-240V |
50W |
85.82mN.m |
1500RPM |
YJ8219 |
19mm |
7mm |
110-240V |
65W |
100mN.m |
1650RPM |
YJ8225 |
25mm |
7mm |
110-240V |
70W |
118mN.m |
1750RPM |
YJ8230 |
30mm |
8mm |
110-240V |
85W |
150mN.m |
1800RPM |

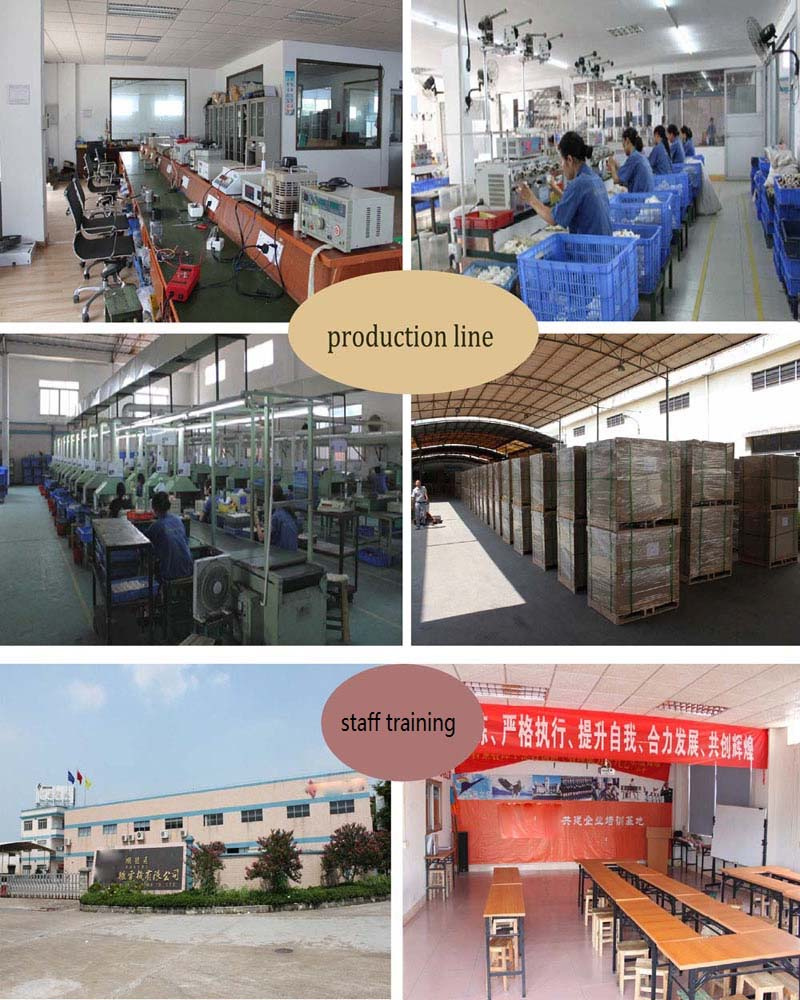

Ritscher group was established in 2006.we always focus on micro-motors for household and industrial electrical appliance.Currently, we have professional micro-motor factories separatlly located in Guangdong & Zhejiang province.It has 50,000 square meters plants and more than 500 employees, annual output is 5 million pcs and has 10 million pcs annual producing capacity.After years development,we built a great reputation in the domestic and oversea market and have the trust from our global customers.
