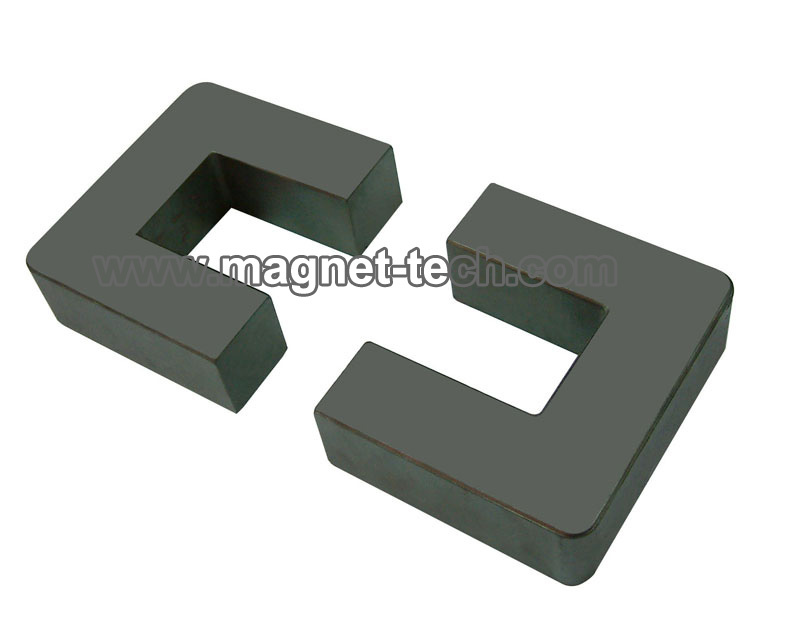

High Performance Large Size UF Core

Prod Model:	yx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Phase:	Single
Coil:	Amorphous Alloy Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer

Product Description

Features of UF core, UI core and UU core.
UF core, UI core and UU core, these Soft ferrite shapes are available in lamination materials (for stacking), powdered material (typically powdered iron), and ferrite materials. In laminated form, their features are similar to that of the "C" core, and can take full advantage of grain orientation while their laminated counterparts only take about 60% to 80%. UF core, UI core and UU core the heat dissipation is excellent and there is lots of room available for lead wires, but self-shielding is poor. UF core, UI core, UU core and other "U" cores have two core legs. Coils can be placed over either or both legs. Using coils on separate legs is great for high voltage isolation between coils. The mean turn length of two coils on separate legs (sharing the whole winding window) is smaller than 1 coil on one leg (occupying the whole winding window), hence the two coils connected in series has less winding resistance. "U" type cores, such as UF core, UI core and UU core may be used for "split-core" current transformers. And the series of U-type cores including UI8.5, UF9.8, UF10.5, UF15, UF12, UF16, UF19, UF25.4, UF30, UF33, etc

Application of UF core, UI core and UU core:
1. U-type cores are mainly used for power, pulse and high-voltage transformers, flyback transformers in B/W and color TV sets.
2. UF core: Mainly used for line filters in color TV sets
3. UI core: Line filters, Inverter transformers
4. UU core: Line filter transformers, Common mode choke, TV flyback transformers

For more detail info, please feel free to visit our website or inquire us at any of your convenience

Ying Jun
Senior technical manager
Yuxiang Magnetic Materials Ind. Co., Ltd
Add: Floor 16, Jinyuan plaza, # 57 Hubin Nan Road, Xiamen, China 361004
Mobile: +86 13850003134
TEL: 0086-592-2295387/2217138
FAX: 0086-592-2222216
(E-mail): mag(a)e-magnet(.)cn





Technical Parameters
Testing Range	0~0.1T / 0~1T / 0~10 T
Accuracy	DC± 0.5% F. S.       AC± 1% F. S.
Display	4 1/2   LED
Size (mm)	230× 290× 70
Weight	2kgs
Input	AC220V  / 50HZ
Power	10W
