High Performance Lithium Battery Pack for EV/Hev/Phev/Erev
| Price: |
Negotiable/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EV05 |
| Rated Voltage (V): |
323 (Customized) |
| Rated Battery Pack (Ah): |
37 (Customized) |
| Rated Battery Pack Energy (Kwh): |
12 (Customized) |
| Voltage Range (V): |
246-369 (Customized) |
| Max. Discharge Current (a): |
110 (Customized) |
| Max. Charge Current (a): |
85 (Customized) |
| Cycle Life (Times): |
>3500 (80% Dod) |
| BMS Working Voltage (VDC): |
12 |
| Thermal Management Mode: |
Liquid Cooling |
| Applications: |
EV, Phev, Passenger Cars |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
Customized |
| Standard Voltage: |
Customized |
| Usage: |
Bev/EV/Hev/Phev/Erev |
Product Description
About E-POWHuizhou Epower electronics co., ltd (E-POW) was founded in 2006, mainly engaged in Electronic Vehicle and ESS product development, production, sales and services, is a leading provider of battery management system(BMS) with high tech and high market share. With high performance and high reliability, our BMS has been mass produced and widely used in Electronic Bus for many major international events , as well as commercial vehicles and passenger cars.E-POW has conducted a wide range of cooperation with many well-known companies. The produced BMS has passed strict testing and trial use of car manufacturers, batch supply realized.E-POW E-Power have total 800 staffs, including more than 230 research and develop staffs, and has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, also builds strong cooperation relationship with famous BMS institutes such as Beijing Jiaotong University, South China University of Technology. The products have won Software Products certification. E-POW has owned more than 100 patents about BMS and passed TS16949, ISO 90001, OHSAS18001, ISO14001 ,IRIS (rail transact certification) etc. quality management system, and obtained the title of China High-Tech enterprise.Application:1. EV application: ODM, from 12v-600v, 20Ah-200Ah. 10KWH, 20KWH, 30KWH, 40KWH, 50KWH, 60KWH lithium ion car battery.It can used in all kind of electric vehicles, such as electric motorcycle/motobike, 3-wheels EV car, smart car, city car, commericial vehicle, logistics car, light weight EV, electric bus, AEV, BEV, HEV, PHEV, EREV, ULEV, LCV and so on. 2. ESS application: 1kwh, 3kwh, 5kwh, 7kwh, 10kwh .....solar energy storage battery, wind energy storage battery, off-grid energy storage battery.Product specificationBMS - Main technical parameters: | Item | Min. Value | Standard value | Max. Value | Unit | Remark |

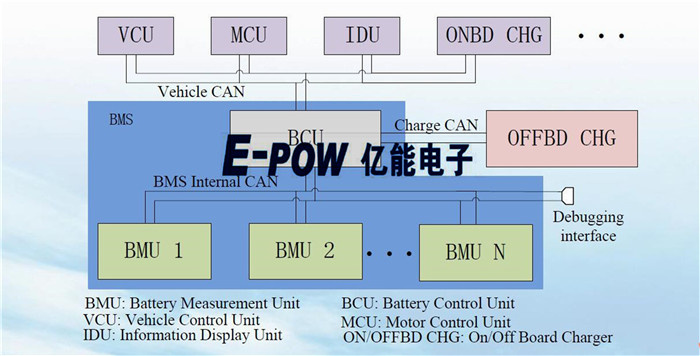

| Low-voltage power supply | Normal working range | 6 | 12 / 24 | 32 | V | |
| Rated working current | | 0.2/0.11
0.034/0.017
0.036/0.018
0.038/0.019
0.04/0.02 | | A | BCU
24S Slave BMU
36S Slave BMU
48S Slave BMU
60S Slave BMU |
| Dormancy power consumption | -- | 0.5 | 1 | mA | |
| Delayed power-off time | | 1 | 1 | s | |
| Digital input port | Vih | 5 | 12 | -- | V | |
| Vil | 0 | 1 | 2 | V | |
| Input impedance | 10 | 50 | 100 | KΩ | |
| Acquisition cycle | -- | 50 | 100 | ms | |
| Digital output port | Voh | 6 | 12 | -- | V | |
| Vol | 0.3 | 0.6 | 1 | V | |
| Output capacity | 10 | 10 | 100 | mA | |
| Analog input port | Detection range | 0 | 12 / 24 | 36 | V | |
| Detection accuracy | -- | ±0.2 | ±0.3 | V | |
| Acquisition cycle | -- | 50 | 100 | ms | |
| PWM input | Duty cycle range | 0 | | 100 | % | |
| voltage range | 0 | | 32 | V | |
| Detection accuracy | | | 1 | % | |
| Frequency Range | | 1 | 2 | KHz | |
| Low side switch | Rated current | 0 | 1 | 4 (100mS) | A | |
| On resistance | -- | 0.3 | 0.36 | Ω | |
| Turn off time | -- | 50 | 100 | us | |
| Opening time | -- | 50 | 100 | us | |
| High side switch | Rated current | 0 | 1 | 4 (100mS) | A | |
| On resistance | -- | 0.05 | 0.1 | Ω | |
| Turn off time | -- | 50 | 100 | us | |
| Opening time | -- | 50 | 100 | us | |
| Total current detection | Detection range | -- | ±300 | -- | A | |
| Detection accuracy (≤30A) | -- | ±0.3 | ±0.5 | A | |
| Detection accuracy (> 30A) | -- | <±0.5 | <±1 | % | |
| Acquisition cycle | -- | 5 | 10 | ms | |
| Total voltage detection | Detection range | 0 | 400 | 800 | V | |
Detection accuracy
(20 ~ 800V) | -- | 2 | 4 | V | |
Detection accuracy
(<20 or> 800V) | -- | 5 | -- | V | |
| Acquisition cycle | -- | 5 | 10 | ms | |
| Leakage current | | | 1 | mA | |
| NTC temperature detection | Temperature measurement range | -40 | | 125 | ºC | Slave BMU Function |
| Accuracy | -- | 1 | 2 | ºC |
| Acquisition cycle | -- | 500 | -- | ms |
| Temperature measurement number | 1 | -- | 10 | -- |
| Single cell voltage detection | Detection range | 0 | 3 | 5 | V | Slave BMU Function |
Detection accuracy
(2V ~ 5V @ -25 ºC ~ 55 ºC) | - | ±5
(0ºC~40ºC) | ≤±10 | mV |
| Acquisition cycle | -- | 20 | 30 | ms |
| Leakage current | | | 100 | uA | |
| Environmental adaptability | Temperature range | -40 | | 85 | ºC | |
| Relative humidity | 5 | | 95 | % | |
| Pressure | 86 | | 106 | kPa | |
| Weight | BCU (Battery Control Unit) Weight | 0.65KG |
| 24S-BMU weight | 0.63KG |
| 36S-BMU weight | 0.84KG |
| 48S-BMU weight | 1.01KG |
| 60S-BMU weight | 1.25KG |
Battery Pack - Main technical parameters:| Rated voltage(V): | 323 (Customized) |
| Rated battery pack capacity (Ah): | 37 (Customized) |
| Rated battery pack energy (KWh): | 12 (Customized) |
| Voltage range (V): | 246-369 (Customized) |
| Max. Charge current (A): | 110 (Customized) |
| Max. Discharge current (A): | 85 (Customized) |
| Cycle life (time): | >3500 (80% DOD) |
| BMS working voltage ( Vdc): | 12 |
| SOC estimation accuracy: | <5%~8% |
| Temperature difference: | <=3°C |
| Thermal management: | liquid cooling |
| Applications: | PHEV, passenger cars |

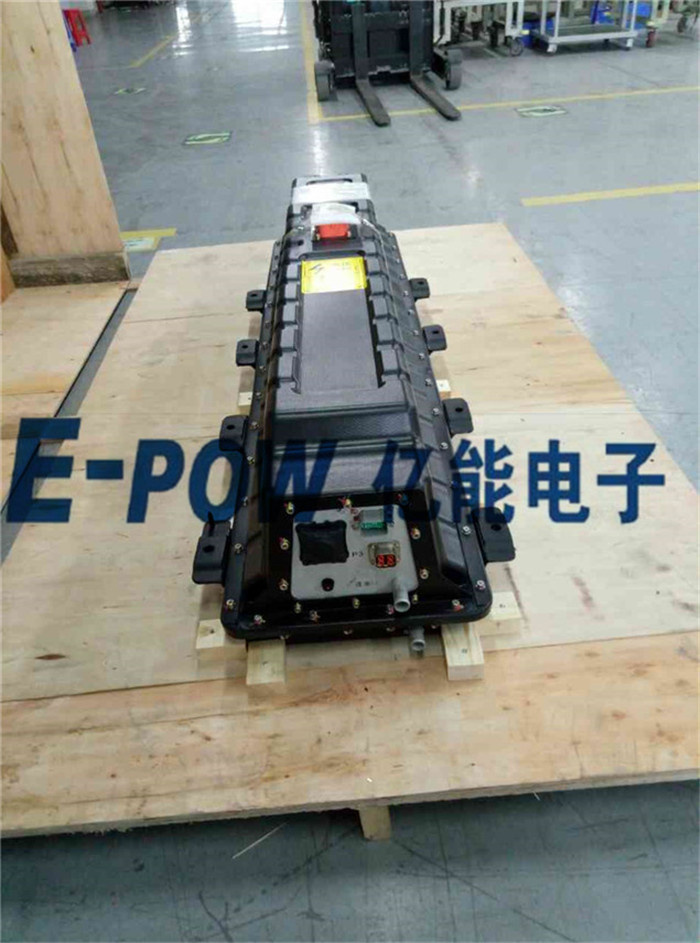

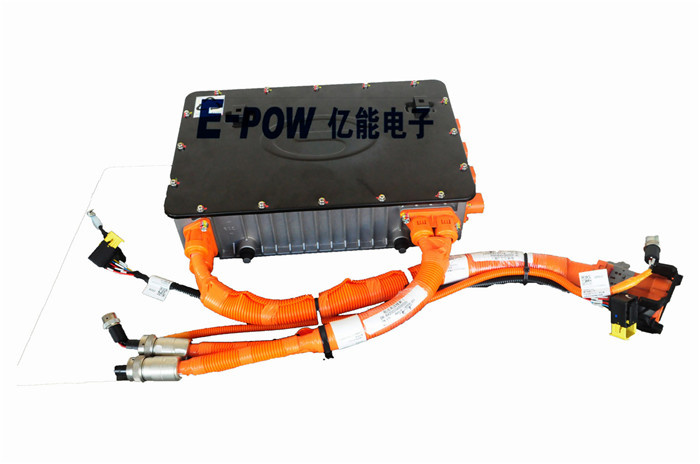

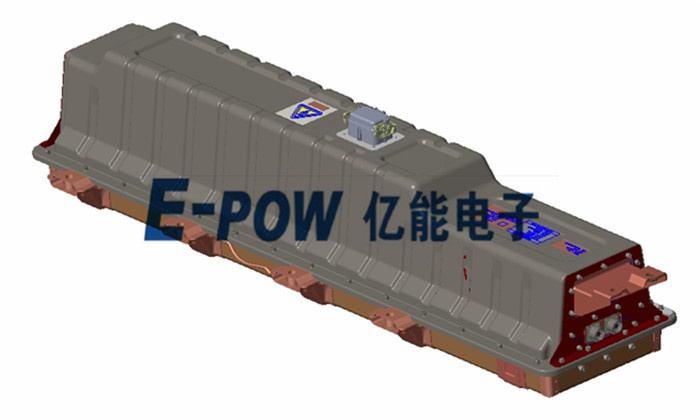

Product show
Our successful case: Olymppic Games(Beijing 2008), World Expo(Shanghai 2010), Asion Games(Guangzhou 2010), World Ecomic Forum Summer Davos (Tianjing 2010)For EV bus, commercial vehicles and passenger cars, etc. We are the only one designated lithium battery pack supplier of Fuxinghao CRH (China Railway High-speed)(350km/h). Battery quality control for after-saleAll of E-POW battery cells in a pack are with very high consistency.In a pack, each cell has its ownsole electronic code(ID number) for quality control after-sale. Assume one cell in a pack is damaged in any reason after several years later, we could provide a exactly same cell to the client to replace this damaged one(same voltage, capacity, impedance,etc.), in order to make sure all of the cells in this pack with very high consistency. E-POW has a strong system working for this.About E-POW
Huizhou Epower electronics co., ltd (E-POW) was founded in 2006, mainly engaged in Electronic Vehicle and ESS product development, production, sales and services, is a leading provider of battery management system(BMS) with high tech and high market share. With high performance and high reliability, our BMS has been mass produced and widely used in Electronic Bus for many major international events , as well as commercial vehicles and passenger cars.E-POW has conducted a wide range of cooperation with many well-known companies. The produced BMS has passed strict testing and trial use of car manufacturers, batch supply realized.E-POW E-Power have total 800 staffs, including more than 230 research and develop staffs, and has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, also builds strong cooperation relationship with famous BMS institutes such as Beijing Jiaotong University, South China University of Technology. The products have won Software Products certification. E-POW has owned more than 100 patents about BMS and passed TS16949, ISO 90001, OHSAS18001, ISO14001 ,IRIS (rail transact certification) etc. quality management system, and obtained the title of China High-Tech enterprise.FAQQ What is the MOQ ?A 100pcs Q Can I mix different designs? A Sure!Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger size orders.Q Can I add or delete items from my order if I change my mind ?A Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.Q Can I get the pre-production sample ?A Yes, we will send you pp sample, after you confirm, then we will start production.Q When you ship my order?A Normally 30 days after receiving your payment, but it can be negotiated based on order qty and production schedule. If special requirement, we can negotiate.Q How about the quality guarantee period?A three year! If special requirement, we can negotiate.Q How can you guarantee the production quality ?A Our production quality follow ISO9001, ISO16949, ISO 90001, OHSAS18001, ISO14001 ,IRIS, SGS, etc. standard . We have 10 years experience of QC team. We have strictly quality control system in our production process. We have many times inspection for each finished product before package,and Third party inspection acceptable.
Huizhou E-POWER electronics Co., Ltd was founded in 2006, advocating green, energy -saving and environmental protection as the future development concept, With R&D sales, manufacturing and services as a set, E-POWER is a professional supplier od battery management system and battery system assembly, Leading and with high market share in domestic. E-POWER moved to the new factory in Zhongkai that covers an area of 40000 square meters, equipped with advanced SMT production lines, automatic module lines, at the same time, including advanced test platforms such as charge and discharge, waterproof and dustproof, shock, extrusion, salt fog and so on to meet the production capacity and high quality products output. E-POWER successfully passed the TS16949, ISO14001 and OHSAS18001 certification, more than 400 patents have been applied and more than 300 patents have been authorized. E-POWER has strong technical strength, a number of employees with doctor and master degrees form a professionally technical team, obtained the tile of state High-Tech enterprise, With leading technology and high reliability team, our BMS have been widely used in Electric Bus for many maior international events like the Olympics Games(Beijing 2008), World Expo(Shanghai 2010), Asian Games ( Guangzhou 2010), World Ecomomic Forum Summer Davos(Tianjing2010 ).
As well as commercial vehicles and passenger cars of Changan, Great Wall, JAC, Beijing Automotive, GAC, Kinglong, Dongfeng, Foton, and so on. E-POWER has a conducted a wide range of cooperation with many well-know battery companies, such as Samsung, Toshiba, CALE, Guoxuan High-Tech, Lishen and so on.
