| Prod Model: |
GNC20 |
| Type: |
Ni-CD Battery |
| Usage: |
Engine Starting |
| Nominal Voltage: |
1.2V |
| Discharge Rate: |
Ultrahigh Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

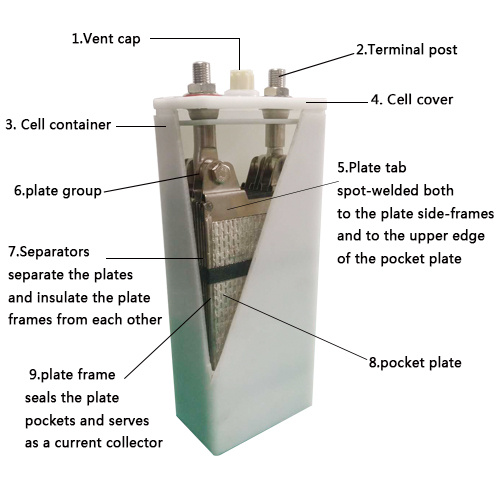

Cell Construction Features
High Performance Ni-Cd ultra high rate battery GNC20 for engine starting

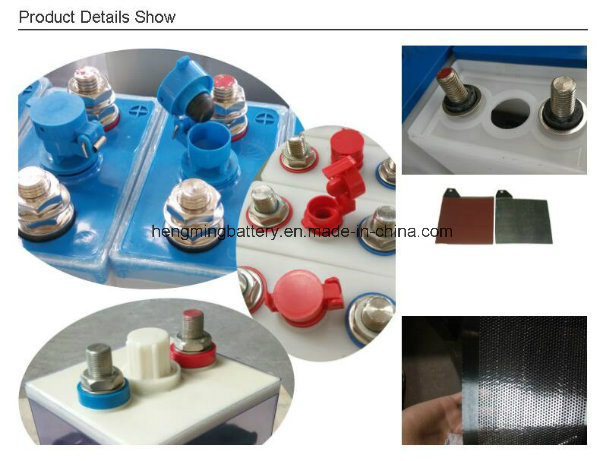

Product Details

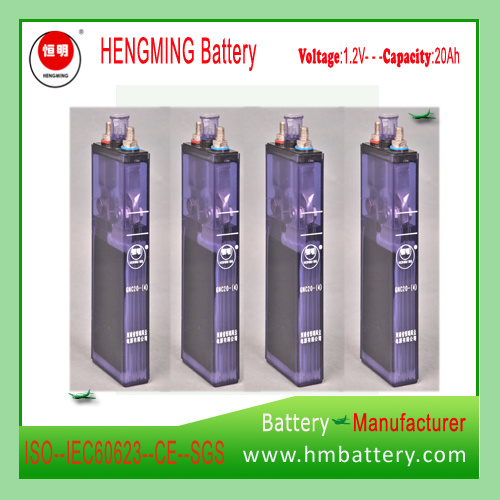

Model: GNC20=KPX20
Dimension: 138*61*266(mm), 81*43*266(mm)
Nominal voltage:1.2V/cell
Nominal capacity: 20Ah
Battery Characters:
1. long service life.
2. Excellent over charge and discharge capability.
3. Wide work temperature, can be used in-40~+45°C.
4. Excellent charge and discharge performance.
5. The battery has a high mechanical strength, it can be operated under the condition of shock and vibration.
6. High reliability.
7. Use and maintenance simply.
sintered series ni-cd rechargeable starting battery
sintered ni-cd battery with stable performance, be wide used as the starting energy.
as the special construction to keep this series battery with a high working performance.
max discharging current: 8C5A.
maintance: low& easy
wide working temperature: -40~+60ºC.
wide capacity: 10ah~250ah.
special dimension design: be accepted
Cell Capacity and Dimensions
| KPX=GNC(Ultra High Rate Type) Sintered----Sintered |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GNC5 | 1.2 | 5 | 81 | 26 | 163 | M8 | 0.51 | 0.05 | ABS |
| GNC10 | 1.2 | 10 | 81 | 26 | 163 | M8 | 0.62 | 0.06 | ABS |
| GNC10-(2) | 1.2 | 10 | 81 | 34 | 245 | M10 | 1.1 | 0.13 | ABS |
| GNC20 | 1.2 | 20 | 81 | 34 | 245 | M10 | 1.25 | 0.12 | ABS |
| GNC20-(2) | 1.2 | 20 | 138 | 61 | 266 | M10 | 2.8 | 0.5 | ABS/PP |
| GNC20-(3) | 1.2 | 20 | 81 | 43 | 266 | M10 | 1.7 | 0.2 | ABS/PP |
| GNC30 | 1.2 | 30 | 81 | 43 | 266 | M10 | 1.75 | 0.2 | ABS/PP |
| GNC30-(2) | 1.2 | 30 | 138 | 61 | 266 | M10 | 3 | 0.5 | ABS/PP |
| GNC40 | 1.2 | 40 | 81 | 43 | 266 | M10 | 1.85 | 0.2 | ABS/PP |
| GNC40-(2) | 1.2 | 40 | 80 | 35 | 235 | M10 | 1.5 | 0.16 | Nylon |
| GNC40-(3) | 1.2 | 40 | 138 | 61 | 266 | M10 | 3.3 | 0.5 | ABS/PP |
| GNC40-(4) | 1.2 | 40 | 100 | 85 | 138 | M10 | 1.6 | 0.2 | ABS |
| GNC50 | 1.2 | 50 | 81 | 50 | 266 | M10 | 2.14 | 0.25 | ABS |
| GNC50-(2) | 1.2 | 50 | 138 | 61 | 266 | M16 | 3.5 | 0.5 | ABS/PP |
| GNC60 | 1.2 | 60 | 81 | 50 | 266 | M10 | 2.2 | 0.24 | ABS |
| GNC60-(2) | 1.2 | 60 | 138 | 61 | 266 | M16 | 3.8 | 0.5 | ABS/PP |
| GNC70 | 1.2 | 70 | 138 | 61 | 266 | M16 | 4 | 0.4 | ABS/PP |
| GNC80 | 1.2 | 80 | 138 | 61 | 266 | M16 | 4.2 | 0.4 | ABS/PP |
| GNC80-(2) | 1.2 | 80 | 86 | 86 | 276 | M10 | 3.6 | 0.45 | PP |
| GNC80-(3) | 1.2 | 80 | 86 | 86 | 305 | M10 | 3.8 | 0.6 | PP |
| GNC90 | 1.2 | 90 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100 | 1.2 | 100 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100-(2) | 1.2 | 100 | 148 | 78 | 196 | M16 | 4.3 | 0.25 | ABS |
| GNC100-(3) | 1.2 | 100 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC110 | 1.2 | 110 | 138 | 61 | 266 | M16 | 4.5 | 0.4 | ABS/PP |
| GNC110-(2) | 1.2 | 110 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC120 | 1.2 | 120 | 138 | 61 | 266 | M16 | 4.6 | 0.35 | ABS/PP |
| GNC120-(2) | 1.2 | 120 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC130 | 1.2 | 130 | 139 | 79 | 295 | M16 | 5.6 | 1.4 | ABS |
| GNC140 | 1.2 | 140 | 165 | 105 | 350 | M20 | 9.5 | 1.9 | ABS/PP |
| GNC140-(2) | 1.2 | 140 | 139 | 79 | 362 | M16 | 9 | 1.7 | ABS/PP |
| GNC140-(3) | 1.2 | 140 | 139 | 79 | 295 | M16 | 6 | 1.3 | ABS |
| GNC150 | 1.2 | 150 | 165 | 105 | 350 | M20 | 9.5 | 1.8 | ABS/PP |
| GNC150-(2) | 1.2 | 150 | 139 | 79 | 362 | M16 | 9.3 | 1.6 | ABS/PP |
| GNC150-(3) | 1.2 | 150 | 139 | 79 | 295 | M16 | 6 | 1.2 | ABS |
| GNC160 | 1.2 | 160 | 165 | 105 | 350 | M20 | 9.5 | 1.75 | ABS/PP |
| GNC160-(2) | 1.2 | 160 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC160-(3) | 1.2 | 160 | 139 | 79 | 295 | M16 | 6.5 | 1.5 | ABS |
| GNC170 | 1.2 | 170 | 165 | 105 | 350 | M20 | 9.5 | 1.7 | ABS/PP |
| GNC170-(2) | 1.2 | 170 | 139 | 79 | 295 | M16 | 6.7 | 1.5 | ABS |
| GNC170-(3) | 1.2 | 170 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC190 | 1.2 | 190 | 165 | 105 | 350 | M20 | 9.9 | 1.7 | ABS/PP |
| GNC210 | 1.2 | 210 | 165 | 105 | 350 | M20 | 10.5 | 1.6 | ABS/PP |
| GNC230 | 1.2 | 230 | 167 | 162 | 343 | M16 | 13 | 2.8 | ABS/PP |
| GNC230-(2) | 1.2 | 230 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |
| GNC250 | 1.2 | 250 | 167 | 162 | 343 | M16 | 13 | 2.6 | ABS/PP |
| GNC250-(2) | 1.2 | 250 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |

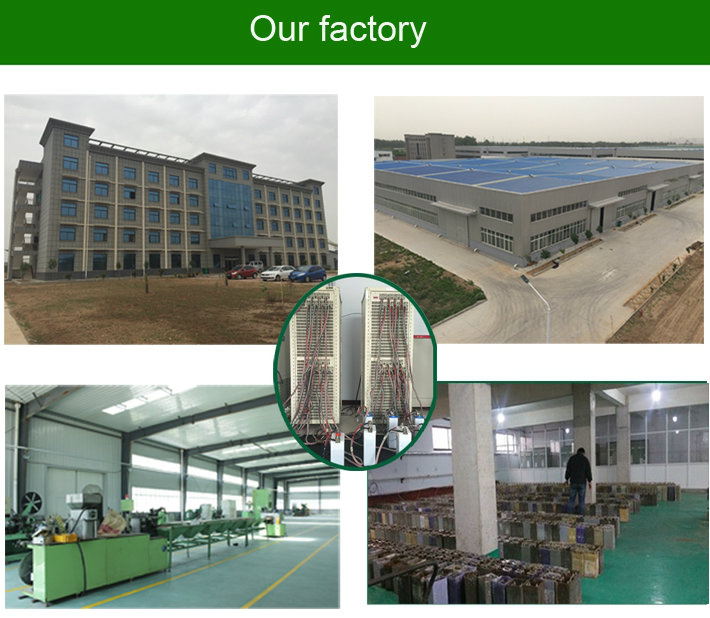

Our Factory
Company Instruction
Henan Hengming Fengyun Power Source Co.,Ltd. is a manufacturer with 200 employees; it was established in 1996, located in No.8 Xinhui Road, Xinxiang City, Henan, China. The workshops occupied an area of 14,000 square meters.
Henan Hengming Fengyun Power Source Co.,Ltd. has its own brand, they have passed ISO9001:2008 certification in 2010, ISO14001:2004 certification and OHSAS 18001:207 certification in 2012, obtained CE certificate for nickel cadmium battery and UK Intertek test report for nickel cadmium prismatic rechargeable battery in KPL,KPM,KPH,KPX series according to IEC60623 standard.
Henan Hengming Fengyun Power Source Co.,Ltd. has successful foreign trading experience in North America, Europe, Australia, Mideast, Southeast Asia, South Asia and East Asia,etc. now HengMing brand Products ni-cd battery, ni-fe battery, ni-mh battery welcomed by end users all over the world, welcome to visit our factory.

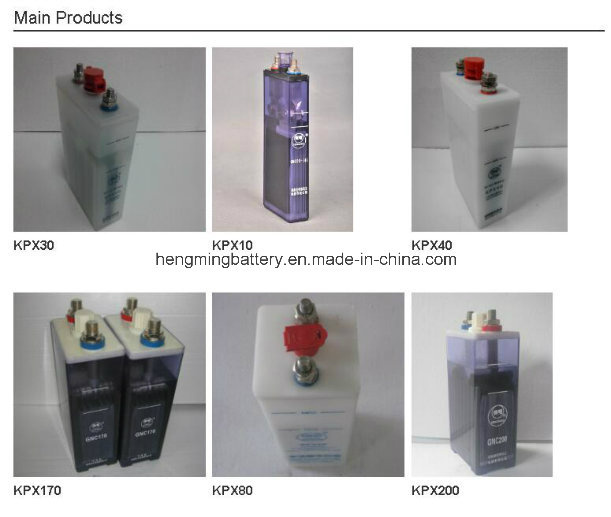

Main Products:
Hengming products can be divided three series: NI-CD(nickel cadmium) battery, NI-FE(nickel iron)battery,
NI-MH(nickel metal hydride)battery. From the performance by the useful wield can be divided four series: Ultra high rated,
High rated, Medium rated& Low rated.
Main Market:
South American, Europe, Asia(Mexico, Peru, Brazil, Canada, New Zealand, Australian, Indonesia, Malaysia, Singapore, Korea,
Vietnam, Burma, Thailand, Sudan, Iraq, Iran, Pakistan, Saudi Arabia, Kenya, Syria, Egypt, England, Spain, Poland,
Turkey… )
Production Ability:
Hengming annual output more than 50millions Ah to the world, and the highest production rate can meet 4.7millions Ah each
month. 10 production lines could be working in the same time.
Contact
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
