High Performance Outdoor Current Transformer

Name: High Performance Outdoor Current Transformer
Brand: all-electronics-online.com
SKU: 722337422
Availability: InStock
Rating: 4.4 (72 reviews)

Price:	Negotiable/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZW1-35Q
Key Word:	Current Transformer 5 5
Color:	Red
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

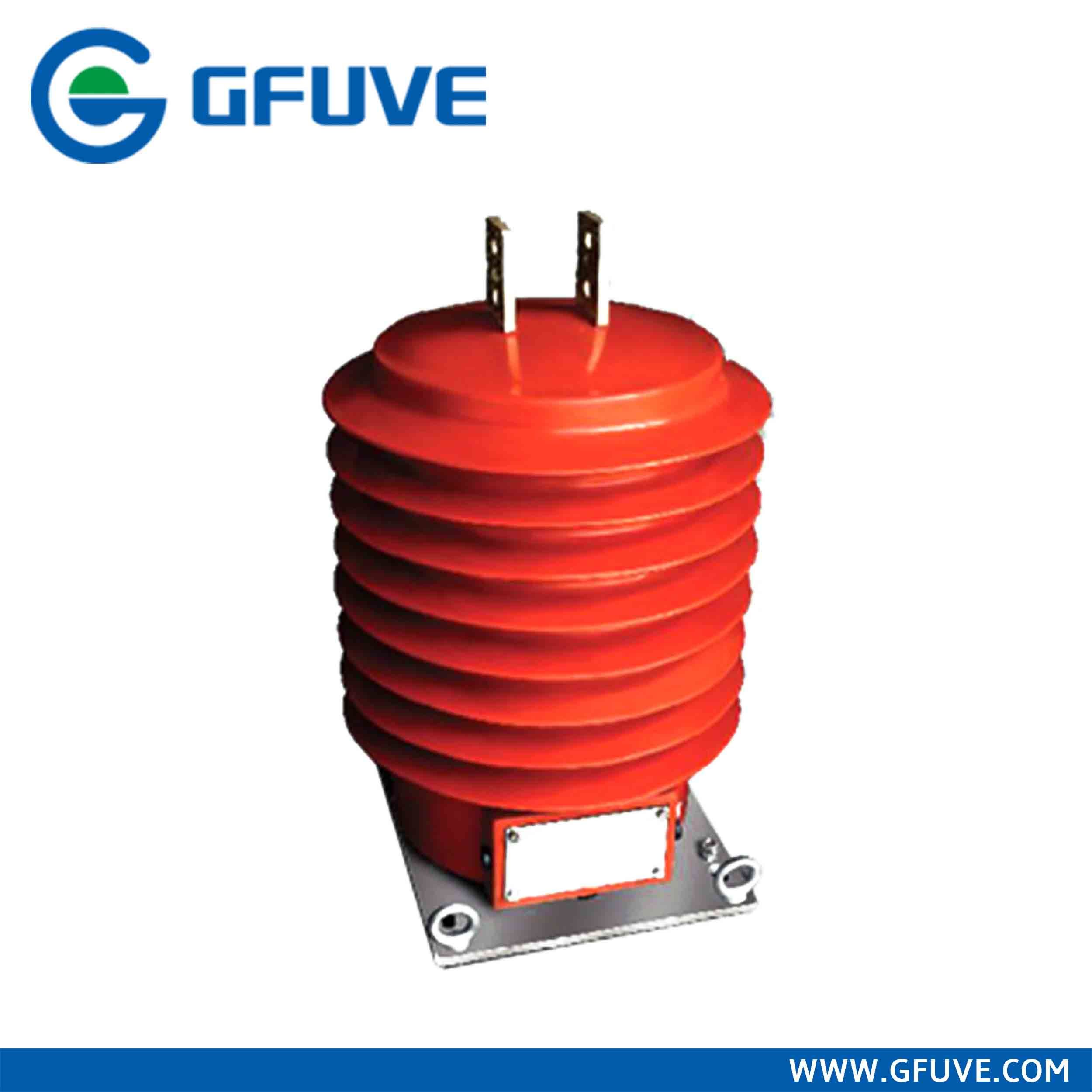

LZZW1-35Q Outdoor Current Transformer
Technical data

Rated primary current (A)	Ith/1S (KA r.m.s.)	Wt (KG) Idyn (KA peak)	Accuracy class combination	Rated secondary output(VA)							Surface creepage distance (mm)	Wt (KG)
			1S/2S	0.2 S	0.5 S	0.2	0.5	5P1 0	5P1 5	5P2 0
10	2	5	0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.5(S)/0.5(S) 0.2(S)/5P 0.5(S)/5P	10	10	15	30	50	30	20	1300	72
15	2.7	6.75
20,25	4	10
30	6.3	15.7
40	8.1	20.2
50	10.8	27
75	16.2	40.5
100	21.6	51.5
150	37.8	94.5
200,250
300,400	54	110
500,600	68.4	136
750,800	95.5	190
1000
1200,1500	140	200

For more information please click on our website: http://gfuve.com/

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
