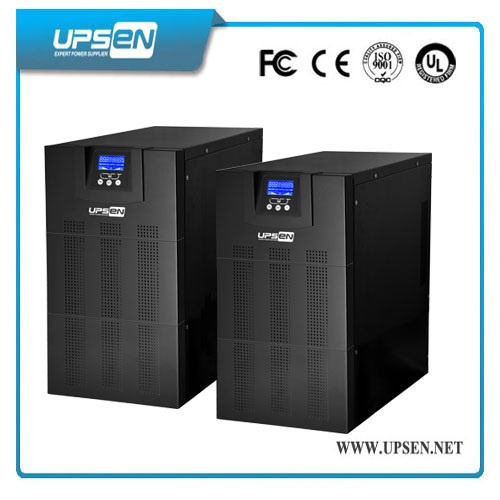

High Performance Power Supply Single Phase 6kVA-20kVA Online UPS

High Performance Power Supply Single Phase 6kVA-20kVA Online UPS
Price: US $ 1-200/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Queen Star Series 6-20Kva
Cabinet: Metal
Transfer Time: 0ms
Spart Parts: 2% Free
Phase: Single Phase
Type: On-line
Protection: Overvoltage
Brand: Upsen

Product Description

High performance Power Supply Single Phase 6kva-20kva  Online UPS
Model: High Frequency Online UPS Queen Star Series 6-20 Kva (1ph in/1ph out)

Key Features:
1:Input Power Factor Correction
2:Optional Emergency Power Off (EPO)
3:Over temperature and over voltage protection
4:External SNMP ,CMC or Dry contacts (optional)
5:Easy to Install & Easy to Operate & Easy to Solve
6:Low initial investment and flexible for future expansion
7:Intelligent battery management, extending the battery life
8:LCD Display with Advanced Monitoring for Easy UPS Management
9:Comprehensive display allows easy monitoring and access of UPS status
10:Wide input voltage and frequency range, adaptive for extreme adverse grid
11:With high speed switch, high voltage, large current, makes efficiency higher, driver circuit smaller, and improve the system efficiency and reliability

Applications
Television,Video Recorder,Education System,Medical Equipment,Financial System,Securities System,Outdoor lighting,Microwave Oven,Cooking etc.

Technical Specification
Queen Star Series Q6K-20Kva
ModelQ6KQ6KLQ10KQ10KL31Q10KL31Q15KL31Q20KL
Capacity6KVA/4800W10KVA/8000W15KVA/12KW20KVA/16KW
InputNominal Voltage220/230/240Vac380/400/415Vac
Voltage Range176~276Vac (1P2W+G)304~478Vac (3P4W+G)
Current 31A (max)50A (max)50A (max)75A (max)100A (max)
Frequency46~54Hz/56~64Hz
Power Factor≥0.99
OutputVoltage220/230/240± 2%Vac  (1P2W+G)
Frequency50/60Hz(adjustable)                                                                                      50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode)
Current 27.3A45A68A91A
Power Factor0.8lag
WaveformPure Sine Wave
Waveform DistortionLine load <2%Line load <3%
Back-up TimeFull Load≥7′Depends on external batteries bank's Capacity≥5′Depends on external batteries bank's Capacity
Half Load≥20′≥13′
Battery Nominal Voltage192/240Vdc
Transfer Time0ms
Overload Capacity >105% 1min, >120% 30s transfer to bypass, shut down in 1min
CommunicationSNMP,RS-232,USB+Intelligent Slot
Operating EnvironmentTemperature0C~40ºC
Humidity15%~90%
DimensionWidth (mm)260260260260260
Depth (mm)560533560533560
Height (mm)717501717501717
Net Weight(Kg)68187020283030
*Specification are subject to change without prior notice



Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.

We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.

We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.

We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
