High Performance Pressure Transducer Ppm-T330A

Name: High Performance Pressure Transducer Ppm-T330A
Brand: all-electronics-online.com
SKU: 820098055
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PPM-T330A
Accuracy Grade:	0.25%Fs
Pressure Range:	0...16~0...100MPa
Certification:	CMC

Product Description

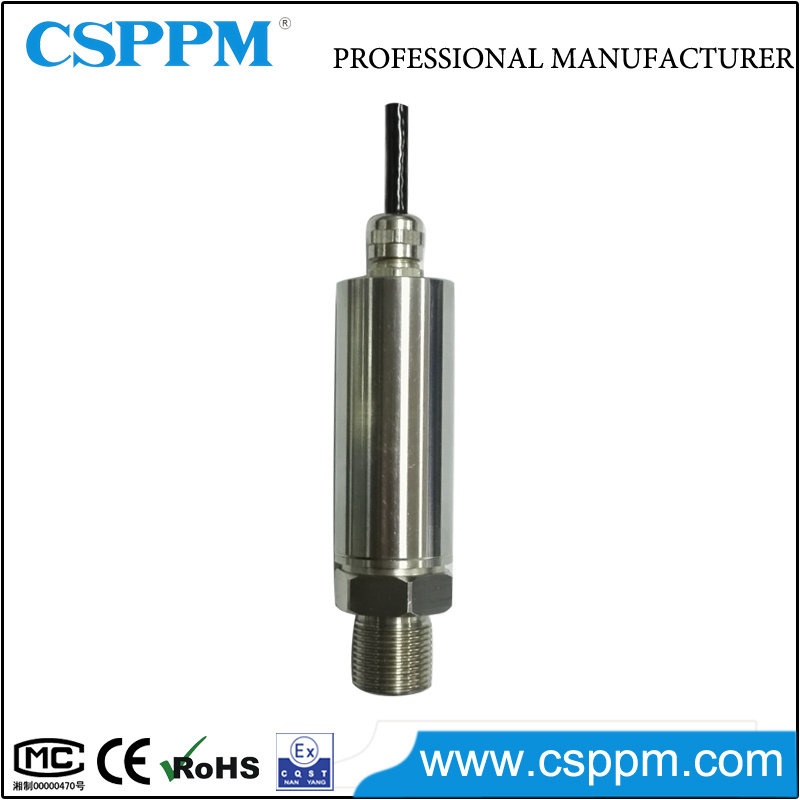

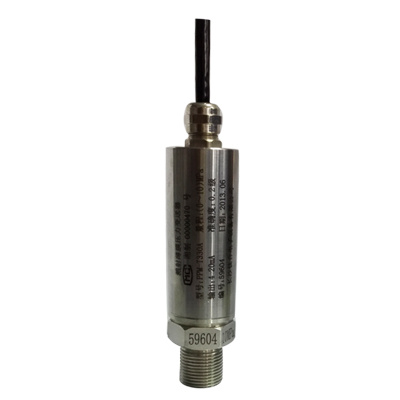

Model PPM-T330A Pressure Transducer

Description
The model PPM-T330A pressure transducer adopts thin-film sputtering technology. Each sensor was strictly temperature compensated for both zero and span. The PPM-T330A pressure transducer has been developed for loader weighing system and it can measure pressure and temperature signals simultaneously. This pressure transducer offers extremely high accuracy up to 0.25%FS. Different electrical connections are available, and it is convenient to install and configure.

Featrues
1. Shock and vibration resistance, resistance to pressure spikes
2. Resistance to high and low temperature
3. High long-term stability
4. High accuracy up to 0.25%FS
5. Customized services are available

Applications
1. Loader weighing system
2. Forklift weighing scales
3. Truck crane
4. Other construsction machineries

Specification

Measuring medium	Gas, liquid, steam
Pressure type	Gauge pressure(G), Sealed pressure(S), Absolute pressure(A)
Pressure range	0~16Mpa…25Mpa…35Mpa…40MPa …60Mpa…100MPa
Power supply	5VDC
Output signal of pressure	0.5-4.5VDC
Output signal of temperature	18B20
Nonlinearity	≤0.04% FS
Non-repeatability	≤0.02% FS
Accuracy	0.25%FS
Long-term stability	0.1%FS/year
Medium temperature	-40~125ºC
Operation temp	-40~+125ºC
Zero temp. drift	≤0.005%FS/ºC, ≤0.01%FS/ºC
FS temp. drift	≤0.008%FS/ºC, ≤0.015%FS/ºC
Response time	≤0.8ms(10%~90%)
output impedance	1500±50Ω,3300±50Ω,5500±1500Ω
Insulation resistance	≥500 MΩ/100V
Overpressure	200%FS (2 times FS)
Damage pressure	500%FS (5 times FS)
Vibration resistance	5~1000Hz
Shcok resistance	50g, 20ms
Process connections	M20×1.5,M16×1.5,M14×1.5,M10×1, or other process connections on request
Materials	Wetted parts: 17-4PH, 15-5PH Non-wettedparts: stainless steel 316, 1Cr18Ni9Ti
Ingress protection	IP67
Electrical connections	cable outlet

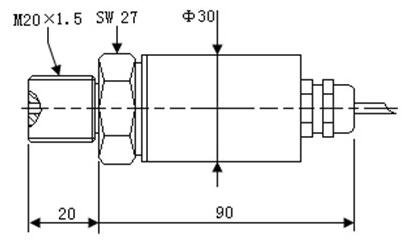

Dimensions in mm

Order information

Model PPM-T330A Pressure Transmitter
	Code	Pressure type
	G	Gauge pressure
	S	Sealed pressure
	A	Absolute pressure
		Code	Pressure ranges
		M	0~ X MPa
		K	0~ X KPa
			Code	Accuracy
			1	±0.5%FS
			2	±0.25%FS
				Code	Output signal
				V0	mV
				A1	4~20mA
				V1	0~5V DC
				V2	1~5V DC
				V3	0.5~4.5V DC
				V4	0~10V DC
				A0	Others
					Code	Operation temperature
					T1	-10~70ºC
					T2	-25~85ºC
					T3	-30~125ºC
					T0	Others
						Code	Power supply
						D1	5VDC
						D2	10VDC
						D3	24VDC(9-32)VDC
						D0	Other
							Code	Process connection
							M1	M20x1.5
							M2	M14 x1.5
							M3	M10x1
							G1	G1/4
							G2	G1/2
							N1	1/4NPT
							N2	1/2NPT
							F0	Other
								Code	Electrical connectiong
								W1	Cable outlet
									Code	Other
									P1	Commom
									P2	Non-cavity diaphragm
