| Prod Model: |
SH15-M |
| Rated Capacity: |
30 to 2500kVA |
| Input Voltage: |
6kv, 6.3kv, 10kv, 10.5kv, 11kv |
| Output Voltage: |
0.4kv |
| Connection Group Symbol: |
Dyn11 or Yyn0 |
| Impedance Voltage: |
4%, 4.5%, 5% |
| Name: |
Sealed Amorphous Alloy Electrical Transformer |
| High Voltage Tapping Ranges: |
5%, 2*2.5% |
| Color: |
Grey B05 or Optional |
| Frequency: |
50 or 60Hz Optional |
| Standard: |
IEC60076 |
| Application: |
Instrument |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description

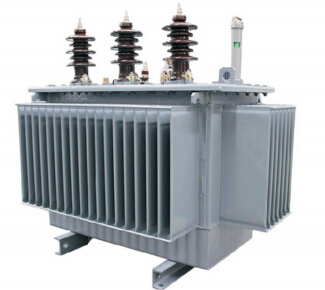

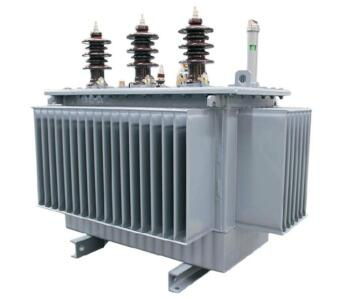

High performance sealed amorphous alloy electrical transformer
Product introductionThe transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.
Advantages Load loss of S(B)H15-M 30~1600/6~10 series transformer can be reduced by 15% on the basis of GB/T6451 standard. The no-load loss can be reduced by 70% on the base of GB/T6451 standard. Amorphous alloy transformer meets the standard JB/T10318-2002 Technical parameter of oil immersed type amorphous alloy transformer.
Technical Parameter of High Performance Sealed Amorphous Alloy Electrical Transformer
Rated
capacity(KVA) | Voltage construction drawings and tapping ranges | Connection Group Symbol | No-load
Loss(W) | Load Loss
(W)75ºC | No-load current (%) | Short-circuit impedance(%) |
High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage (KV) |
| 30 | 6
6.3
10
10.5
11 | ±5%
±2×2.5% | 0.4 | Dyn11
or
Yyn0 | 130 | 630/600 | 2.3 |
4.0 |
| 50 | 170 | 910/870 | 2.0 |
| 63 | 200 | 1090/1040 | 1.9 |
| 80 | 250 | 1310/1250 | 1.9 |
| 100 | 290 | 1580/1500 | 1.8 |
| 125 | 340 | 1890/1800 | 1.7 |
| 160 | 400 | 2310/2200 | 1.6 |
| 200 | 480 | 2730/2600 | 1.5 |
| 250 | 560 | 3200/3050 | 1.4 |
| 315 | 670 | 3830/3560 | 1.4 |
| 400 | 800 | 4520/4300 | 1.3 |
| 500 | 960 | 5410/5150 | 1.2 |
| 630 | 1200 | 6200 | 1.1 |
4.5 |
| 800 | 1400 | 7500 | 1.0 |
| 1000 | 1700 | 10300 | 1.0 |
| 1250 | 1950 | 12000 | 0.9 |
| 1600 | 2400 | 14500 | 0.8 |
| 2000 | 750 | 17400 | 0.20 |
5 |
| 2500 | 900 | 20200 | 0.20 |
High performance sealed amorphous alloy electrical transformer Why Choose us1.Specilized in manufacturing of oil-immersed power transformers,dry-type transformers, box-type substation,high and low voltage switchgear assembly and special-type transformers since 2008.
2.With the production capacity of value of 1000000kva,our transformers have been widely used in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.

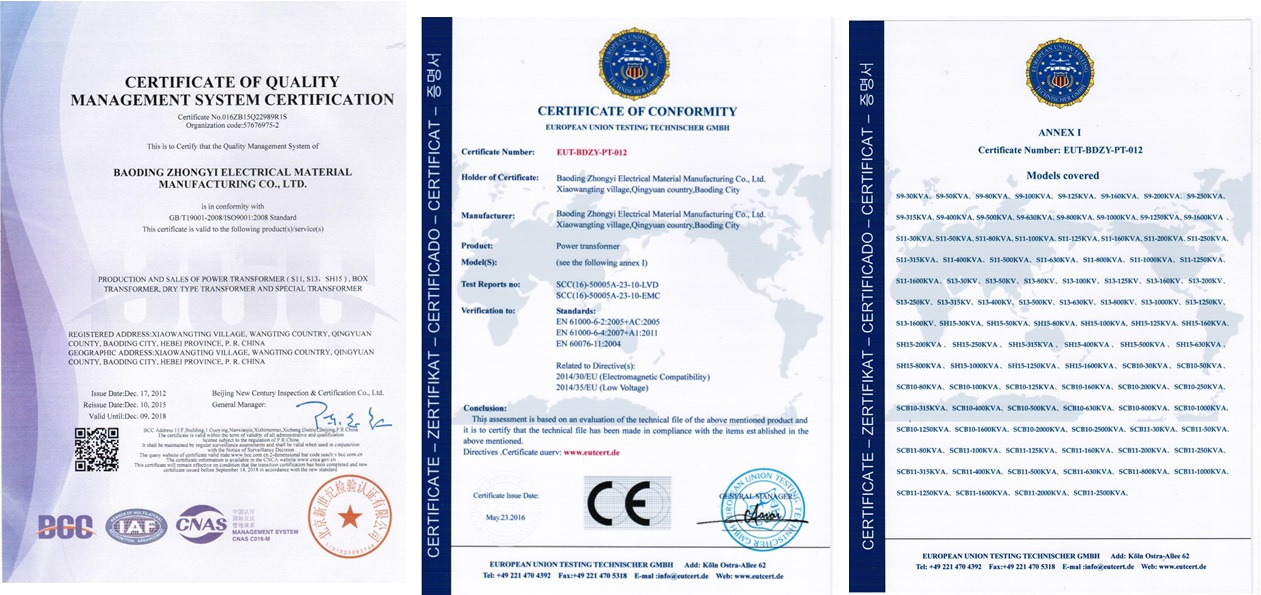

3.All our products are ISO9001-2015 and CE certified,we also have a strong R&D team to meet any requirements of yours.
4.With great experience of the international transformer projects.Certifications
High performance sealed amorphous alloy electrical transformerOur CompanyBuilt in 2008,Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City, with an advantageous geographical location and convenient transportation.
With an area of 30,000 square meters, and building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000.
Mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers.
With the whole set of the hoisting, tooling and testing equipments. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standard.

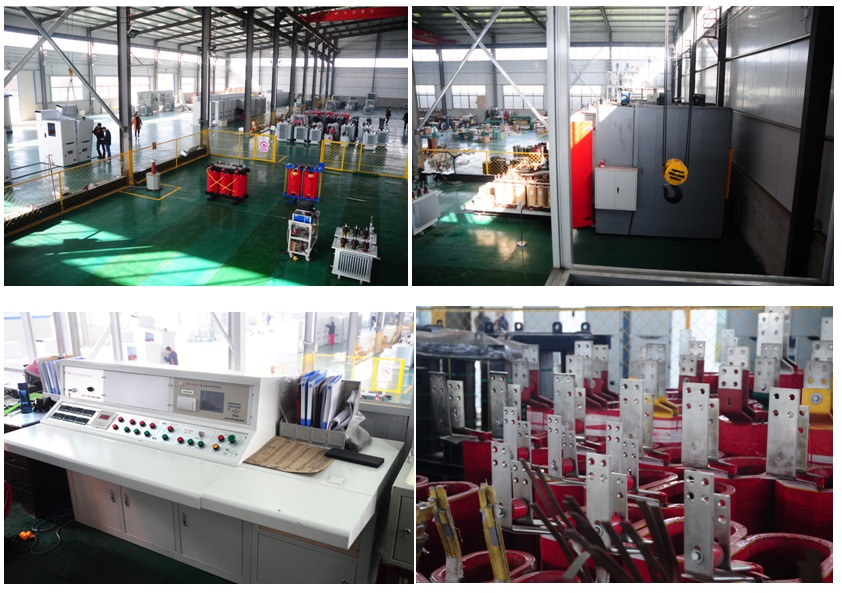

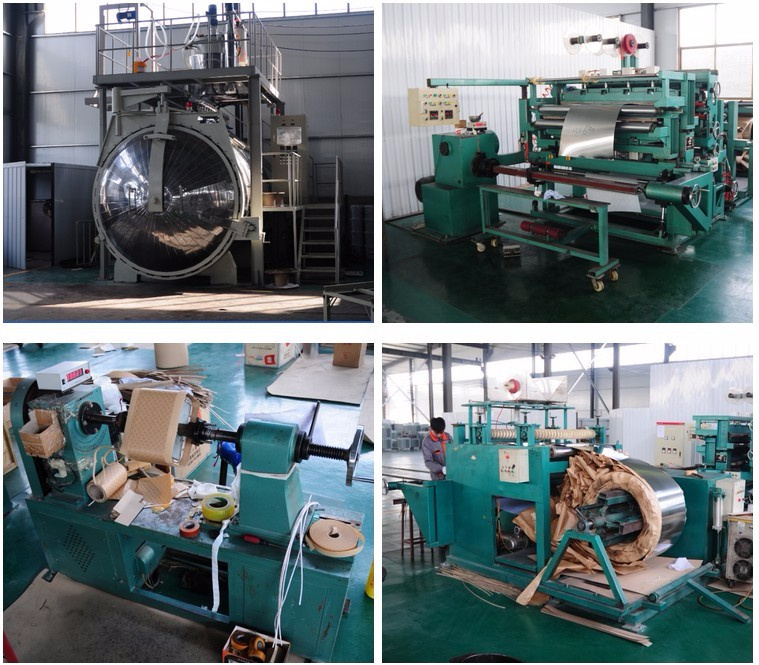

Our Facilities

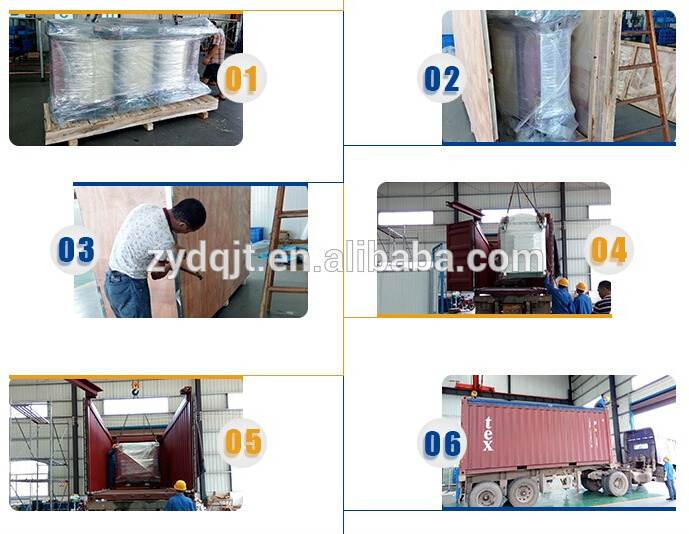

Packing&DeliveryPacking details
1.Wrapped with plastic film
2.Fixed in a wooden case
3.Wooden case on a palletDeliveryWIthin 15 work days after the payment received or as customers order quantity.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacture since 2008 with three factory of transformer housing and transformer core and all kinds of transformers,substation,switchgear.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock according to customers quantity.
Q: What about the OEM
A: Yes, OEM and ODM service is also accepted.
Q: What is your terms of payment ?
A: The payment term is 30% T/T in advance ,balance before shippment.
Contact us
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd.
Address: Baiyangdian Science and Technology City, Baoding, Hebei Province
Post Code:071100
Tel: 0312-5938898
Fax:0312-5938898
Website: www.zydqjt.com
Line:008615930223027
