| Prod Model: |
SG(B)10 |
| Rated Capacity: |
1600kVA |
| Noload Loss: |
2440W |
| Load Loss: |
11340W |
| Impedance Voltage: |
6.0% |
| Noload Current: |
1.0% |
| Standard: |
IEC60076 |
| Certificate: |
ISO9001 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Two-winding Transformer |
| Brand: |
Zhongyi |
Product Description
Product Description
Specifications:
1.Insulation Dry type power transformer
2.IEC Standards
3.High efficiency,low loss,low noise
4.Epoxy resin cast
5.Model:SCB10/SGB 10
6.Copper winding or alluminum winding
Applications
This kind SC(B)&SG(B) dry type power transformer is applied to power system of three-phase, 50Hz as well as 35kV and below, it is the main transformer equipment of medium and small-sized transformer substation, supplies power distribution, power and illumination for the industry and agriculture, Hotel airport, power plant, hospital, skyscraper, shopping center and residential areas.
|
Product Detail
SCB10 power distribution equipment step up or down cast resin dry type transformer
Standard | GB1094,GB 6450-86,GB/T10228-1997,meet with DIN42523,IEC726 |
Capacity range | 30-16000KVA |
Voltage class | 10KV-35KV |
Volt-regulation means | No-excitation volt-ragulation or on-load volt-regulation. |
Tapping range | +/-5%,+/-2*2.5%.+/-4*2.5% |
Frequency | 50 or 60Hz |
Number of phase | Three or single phase |
Coupling group tab | Yyn0,Dyn 11 or others |
Highest temperature-rise | 100K. |
Cooling method | Self-cooling(AN) of forced air cooling(AF) |
Protection Class | IP00,IP20,1P23 |
Insulation class | F |
Product Structure:
1.Iron core:
It is made of high-quality grain orientation cold rolled silicon steel sheet, and adopts 45° full-inclined joint structure and five-grade stepping.
2.Pouring coil:
It adopts F grade insulated copper conductor as the conductor, and adopts glass fiber and epoxy resin composite material for insulation.
3.Foil type coil:
It is automatically winded by foil type coil winding machine and adopts argon shield technology to perform internal welding.
Cast-foil Coil:
Adopting the entire section of copper foil, together with the F-class turn insulation, low voltage winding is wound by the special low-voltage foil winding machine.The foil coil resolves such understanding problems as large short-circuit stress, uneven ampere turn, poor heat dissipation, existing the winding spiral angle as well as unsteady manual welding quality due to low voltage and large current coil winding products.At the same time, the winding end in our company is treated with resin potting, solidification to make shape, moisture-proof and anti-fouling, the lead copper platoon is automatically welded by argon arc welding.
4.Temperature Control Device:The transformer adopts BWDK series of signal thermometer.The temperature components, are embedded in the upper half of the low-voltage coil, can automatically detect and dynamically display the work humidity of phase coils and also have the functions of over-temperature alarm and trip.

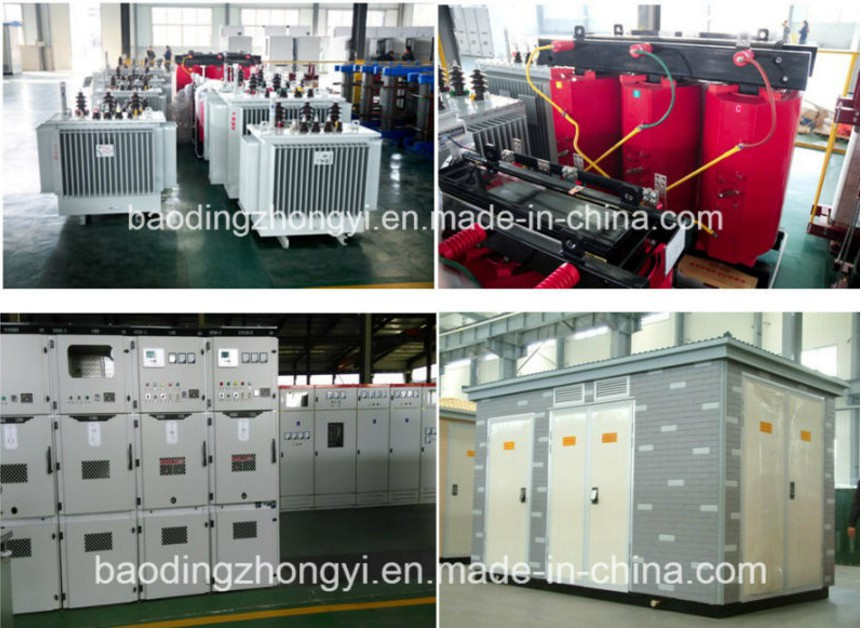

Different products
