High Performance Temperature Controller for Refrigeration Industry

Name: High Performance Temperature Controller for Refrigeration Industry
Brand: all-electronics-online.com
SKU: 824368675
Availability: InStock
Rating: 4.6 (32 reviews)

Price:	US $ 7.8-9.3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JD-109
Customized Voltage:	Available
Silk Print:	Available
Usage:	Refrigeration&HVAC
Sensor:	Ntc
Color:	Grey and Orange
Function1:	Deforst
Function2:	Compressor
Function:	Fan
Product Size:	75mm34.5mm85mm
Hole Size:	71mm*29mm

Product Description

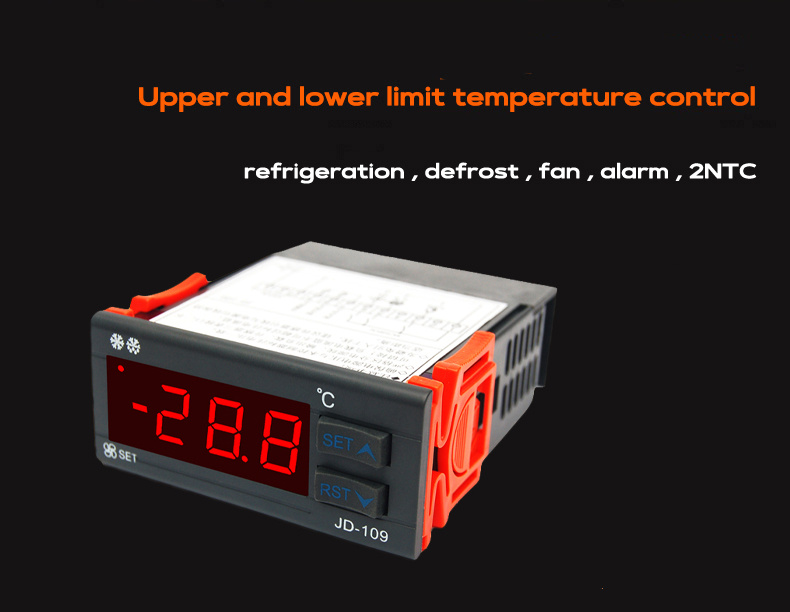

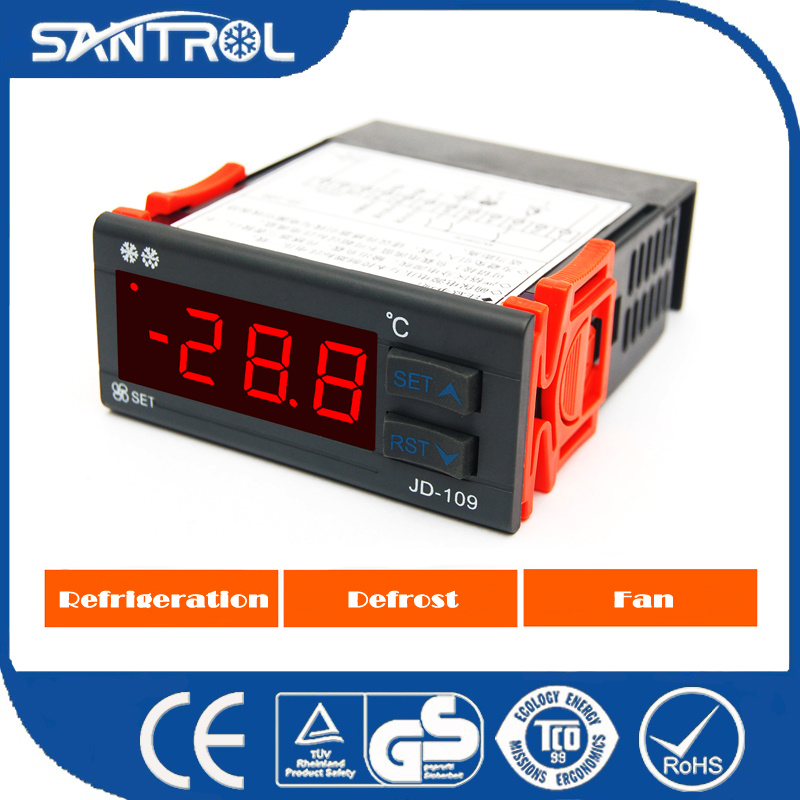

High Performance Temperature Controller for Refrigeration Industry JD-109

Product Features:
1.This product is a general temperature controller.
2.Refrigeration,transfinite alarm temperature,defrost,and other functions.
3.Compressor protection delay time is adjustable.
4.Suitable for freezers,cold storage,refrigerated trucks and other refrigeration industry.

Specifications and Technical Parameters:

Model number	JD-109
Power Supply	220VAC±10%;50/60HZ
Measure temperature range	-50ºC~120ºC
Resolution	0.1ºC
Accuracy	-50~99.9ºC(±0.1ºC),other range ±1ºC
Output contact capacity	8A/220VAC
Usage	Suitable for freezers,cold storage,refrigerated trucks and other refrigeration industry.

Technical Parameters:
1.Operating temperature:0ºC~60ºC;
2.Elative Humidity no more than 80%(no condensate)
3.Power supply:220VAC±10% 50/60Hz
4.Power consumption:≤3W
5.Measuring range:-50ºC~120ºC
6.Accuracy:-50~99.9ºC(±0.1ºC),other range ±1ºC
7.Relay contacts capacity:8A/220VAC

Installation Size:
1.Product size:75×34.5×85(mm)
2.Installation hole size:71×29(mm)

Product Display:

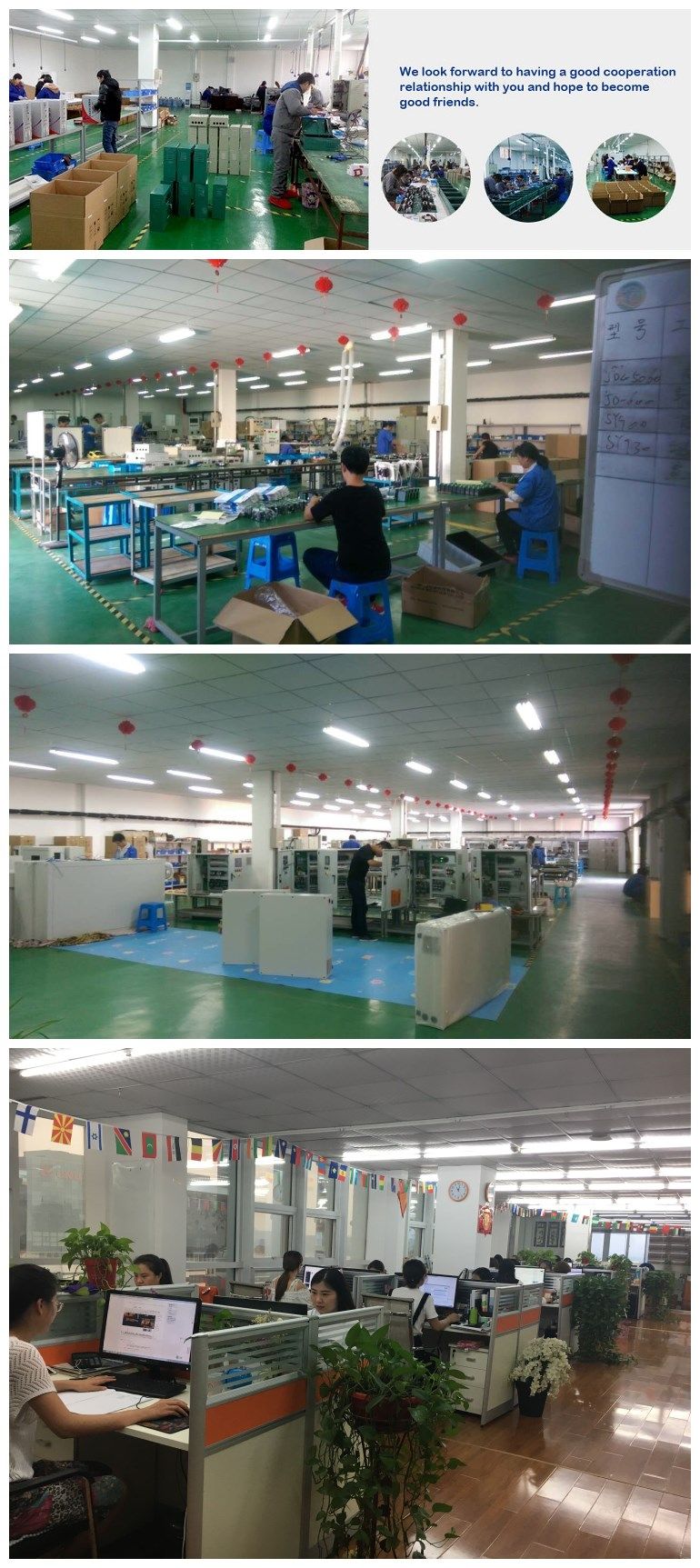

Company Information:

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD
Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..

QC:
All of products must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed

FAQ:
1.MOQ is 100 pieces.
2.OEM/ODM is welcomed!
3.Shipping terms:1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:7-25days(Depends on the Qty) after advanced payment received
4.Shipping way is depand on your choose.

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd

Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration

Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.

Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.

Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.

We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
