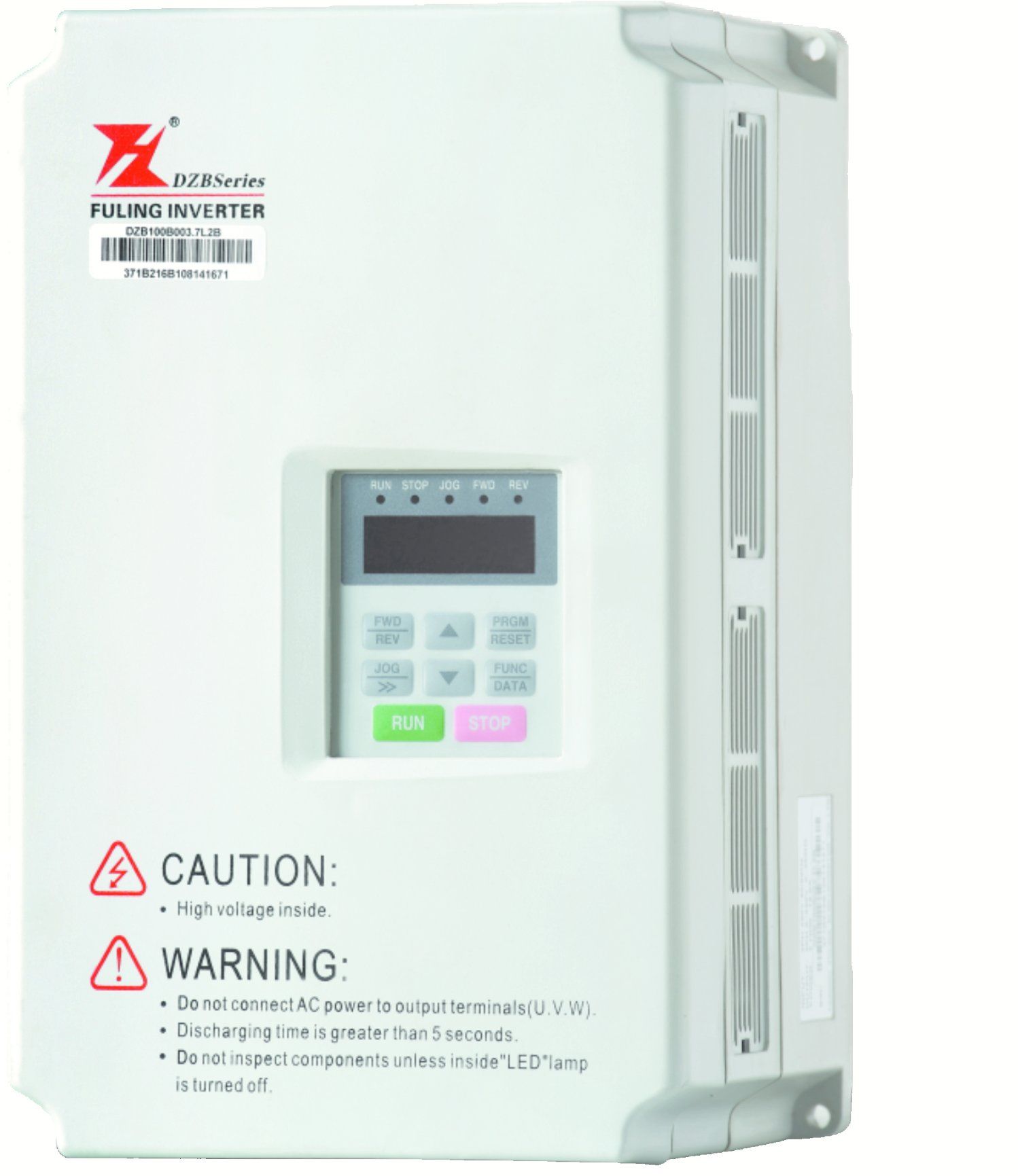

High Performance Three Phase AC Drive Low Voltage Variable Frequency Drive VFD (DZB312)
| Price: |
US $ 100-500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DZB312 series |
| Color: |
White |
| Certification: |
Ce, ISO9001 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Folinn |
Product Description
Product Description
Product overview
DZB312 series special inverter for carving machine is designed for carving machining industry, it adopts sine wave pulse width vector control technology with specialized macro code function built-in, it's easy for installation and debugging, reasonable wiring technology makes it stable and reliable.
Product features
It can realize 8 segment speed running for convenient macro card control
Adopt 32-bit microprocessor and sine PWM control
Unique core algorithm and low interference
Adopt independent air duct for many dust occasions
Automatic torque promotion and automatic slip compensation function
Output frequency range 0~600.0Hz,customized up to 2000Hz
Built-in standard 485 communication function
Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging
Technical parametersinput voltage:1AC220V±15% 3AC220V±15% 3AC380V±15%
Output power range:220V:0.75kW~15kW,380V:1.5kW~15kW
output frequency:0~600Hz,custom-made above 600Hz
Input frequency 47~63Hz,power factor≥95%
control mode:Non-PG vector control, V/F control
Source of operation instruction:given by panel, terminal and RS485 communication
Source of given frequency:given by panel figure, analog quantity, RS485 serial communications, multi-speed simple PLC and PID etc.
Overload capacity:130% rated current 60s,150% rated current 3s
Carrier frequency:1.0kHz~15.0kHz,and can be automatically adjusted according to temperature and load characteristic.Frequency resolution:the given digital value is 0.01Hz,and the analog quantity is given as the highest frequency plus 0.1%
Torque elevation:Manual torque can elevate 0~30%
Inching operation:frequency range:0.0Hz~ Maximum output frequency Inching acceleration and deceleration time:0~3600.0s
Simple PLC and multistage speed operation:it can realize up to 8 segments running
Automatic voltage regulation: When grid voltage fluctuation occurred, it can automatically maintain constant output voltageApplications * Woodworking engraving machine
* Advertising carving machine
* Stone engraving machine
* Process engraving machine
* Cylinder engraving machine, etc. Why choose Folinn?1. One of earliest inverter (AC Drive) manufacturer in China since 1994
(more than 20 years history)
2.TOP 10 inverter manufacturer in China many years continuous
3. CEEIA Council Member of Inverter Industry in China
4. National Torch Program
5. National High-tech Enterprise Our customerLSIS Co., Ltd -(Top of industrial electrical automation products manufacturer in Korea)
2008 Beijing Olympic stadium (National stadium)
Coca Cola Company Qingdao branch
SLOF ( Shengli Oil Field---Second largest oil production base in China)
Tsingtao Beer-(one of the global top 500 companies)
Shanghai East Pump(Group)-(Top pump brand in china)
etc......
Our AC drive have export to all over the world.Such as USA,Canada,Malaysia,Russia,Australia,Portugal,
Switzerland,Korea,Poland,United Arab Emirates,Viet Nam,Korea,,Pakistan,Kazakhstan,India,
Mexico,etc.
1. Payment
For small order by air or by express, it is 100% T/T in advance. For large order by sea, 30% deposit of the order value should be paid, 70%
of the balance payment should be done against the copy of bill of lading.
2. Delivery terms
Sample order: 3-7 working days for delivery. Large order: 14-20 working days for delivery.
3. Packing
Folinn standard packing (carton or wooden case), OEM packing (≥10,000usd per order)
4. Warranty
24 months from shipping date of B/L and lifetime technical support services. Main component: IGBT: Infineon-Germany (We are Infineon Technologies Global "best strategic partner"), Fuji Electric-Japan
Capacitor: Nichicon-Janpan,EPCOS-Germay,Jianghai& Yipin(World-class brand in China)
CPU: Texas Instruments-Germany,Avago Technologies-USA,SHARP-Japan,TOSHIBA-Japan
Bridge rectifier: SEMIKRON-Germany,SanRex-Japan,Microsemi-USA,SILING(World-class brand in China)

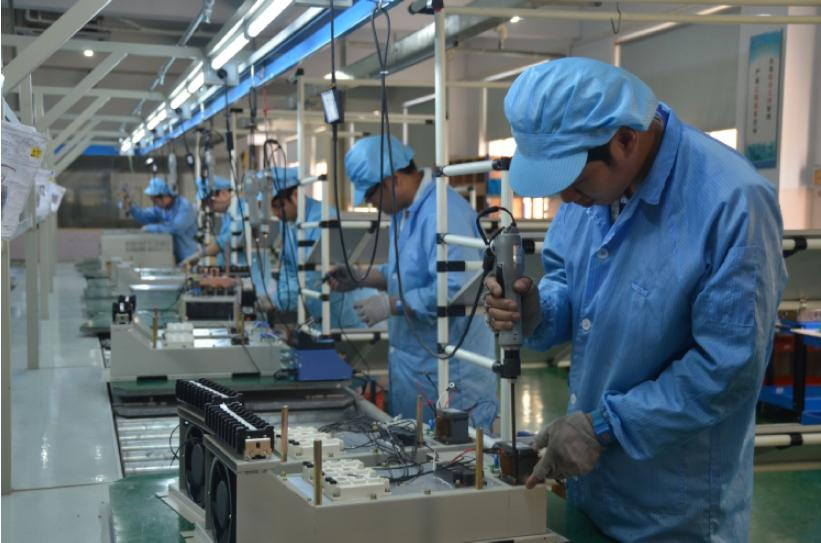

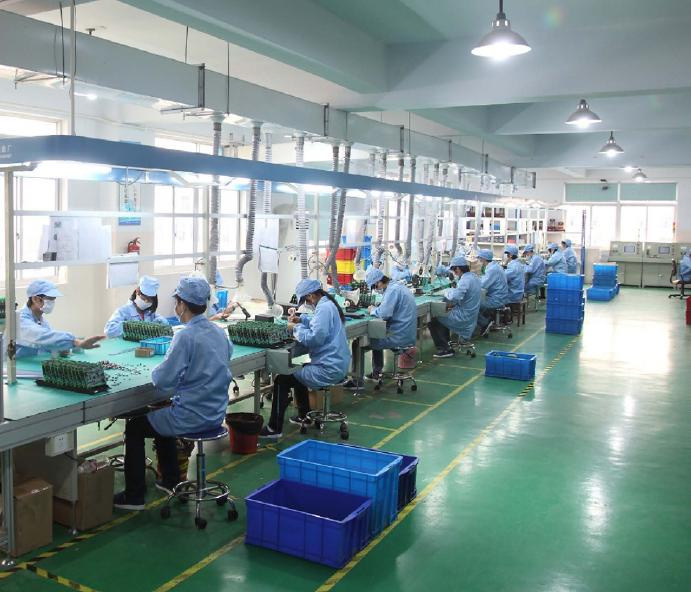

Factory & Workshop Features
Our Vision
To create a first-class enterprise in the electrical control field and low-carbon happy life
Core Values
Win-win Cooperation Value Creation
Quality Policy
Absolute Quality, Brand Creation
Core Values
Scientization, Systematism, Standardization, Professionalization, Informationization
Development History
1994 In Wenling, the city with the first Chinese private enterprise founded, Fuling started its first step
2000 "Taizhou Fuling Motor Co., Ltd" officially founded
2001 ISO9001: 2000 approved / CE approved
2004 Honored as one of the "Zhejiang Hi-Tech Enterprises"
2007 Elected as one of the first council members of CEEIA Inverter Department, Posted on inverter industry authority magazine "Inverter World" Honored as one of the "China Top 10 Brands", Chosen as the "Member of the Year of 2007" by CEEIA
2009 Became "the Best Commercial Partner" of Infineon
2010 Renamed as "Taizhou Fuling Electrical Co., Ltd" and registered capital increased to 5, 000, 000 USD
2011 Elected as one of the second council members of CEEIA Inverter Department DZB10HV series inverter has been approved as the "Zhejiang Technology Innovation Special Item"
2012 Newly increases 2 more brands: "FUREEN" and "B&B Power"
2014 Company was renamed from "Taizhou Fuling Electric Co., Ltd" to "Zhejiang New Folinn Electric Co., Ltd"
Company Profile
Zhejiang New Folinn Electric Co., Ltd. Founded in 1994, is located at Wenling, the youngest costal city in China, a well-known manufacturing base in Yangtze River Delta. Honored as a Zhejiang Hi-Tech Enterprise, we focus on R&D, manufacturing, sales and service for motor auto controlling products.
Taizhou Fuling is specialized in manufacturing HV(LV) & Low Voltage (LV) inverter, servo drive products, and new energy products. Based on our own solid industrial auto controlling technology and creative concept, we concentrate on driving technology improvement, device manufacture and
Update, devoting ourselves to providing every customer with the best quality product and service and pushing this industry forward. We stand on the principle of "Quality & Innovation is the industry's life", and realize it in our company moving steps, in order to keep ourselves and our customers growing together. Fuling sales network has been reached out all major parts of China and some other countries in Europe, South-East Asia, MID-East, America, and Oceania.
