| Prod Model: |
SY8000G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Sanyu |
Product Description

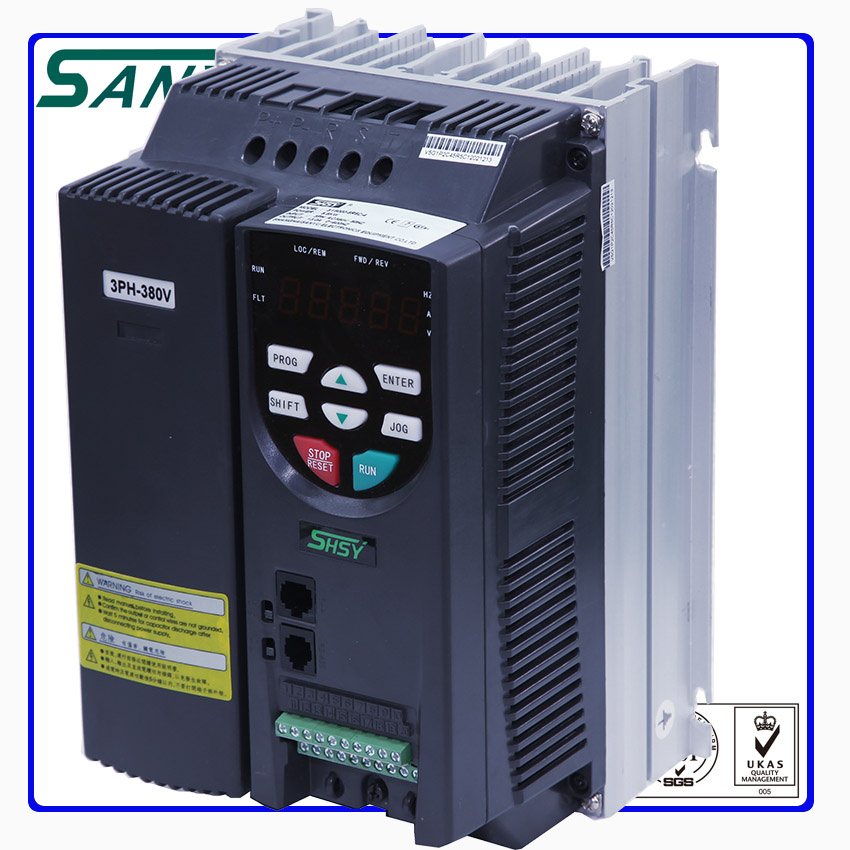

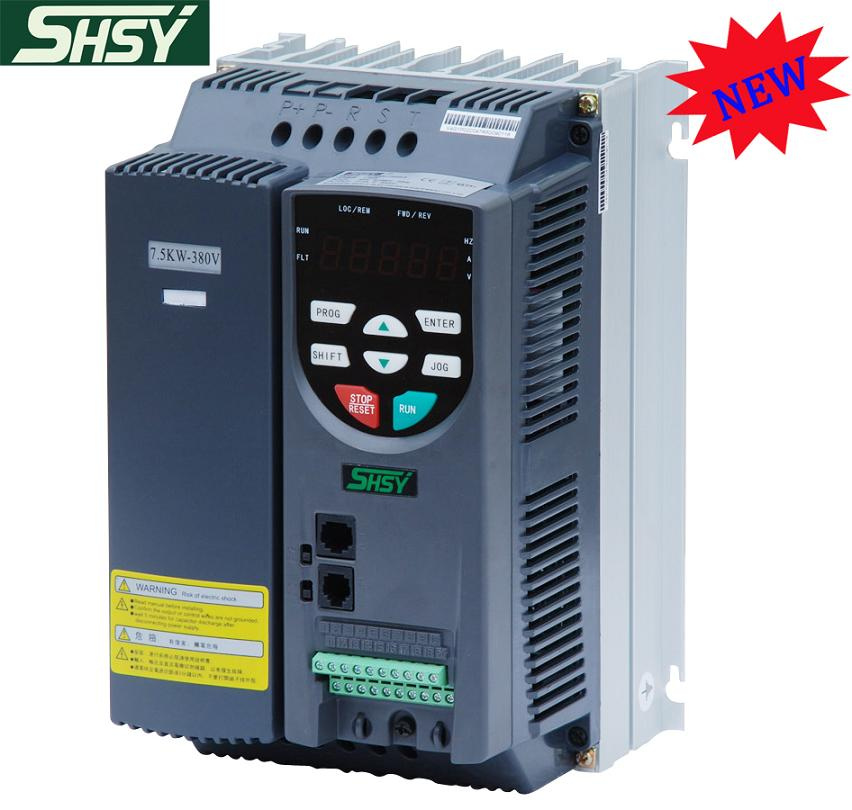

High Performance Vector Control Variable Frequency Converter (SY8000G)
Sanyu SY8000 10kw motor controller for sale, excellent performance, strong powerful, stable quality, sophisticated technology which widely applied to many industrial field, such as CNC machines, textile machinery, food machinery, printing machines, packing machines, woodworking machinery, etc.
Input/Output voltage characteristic
Output frequency range: 0~600Hz
Input voltage range: AC220V±15%, AC380V±15%
Functional Characteristic
Analog input AI1: 0~10V, AI2: 4~20mA
General control
Speed control precision ±002Max Speed
Open-loop vector: 0.5hz can output 150% rated torque
V/F1: 100, Open-loop vector1: 200
Technical Feature
Instantaneous power failure does not stop function
Rotating motor to realize no impact smooth starting
The function of user save parameters group and keyboard copy
Build-in automatic compensation and slip toreque compensation function
Parameters:
| Item | Description |
Input | Rated voltage, frequency | Single phase, 220V, 50Hz/60Hz; 3 phase, 380V, 50Hz/60Hz |
| Allowed fluctuation | Continuous voltage fluctuation: Within± 10%, instant voltage fluctuation: Within -15%10%; Voltage imbalance: < 3%; Frequency fluctuation: Within 5%. |
| Output | Voltage | Single phase, 220V & 3 phase, 380V |
| Output frequency | 0~600Hz. |
| Overload capability | 150% rated current, 1 minutes; 180% rated current, 1 seconds |
| Control trait | Command input mode | By LCD keypad, by terminals, by PC through serial communication port. |
| Control mode | Open loop vector control, V/F control. |
| Speed setting method | By keypad, by analog, by PC through serial communication port |
| Speed setting precision | Digital command± 0.01%(-10 +40)
Analog command± 0.1%(25° C± 10) |
| Speed setting resolution | Digital command: 0.01Hz; Analog command: 0.1% of maximum frequency |
| Speed control accuracy | Open loop vector control: ± 0.5%; (25° C± 10) |
| Speed regulation range | Open loop vector control: 1: 100 |
| Torque control response | Open loop vector control: < 200ms. |
| Start torque | Open loop vector control: 150% of rated torque at 0.5Hz. |
| Torque control accuracy | ± 5% |
| | Set reference voltage supply output | 1 port, +10V, 5mA |
| Control voltage supply output | 24V, 100mA |
| Analogy input | 2 terninal, No. 4 terminal is use for voltage, No. 5 is used for voltage and current input |
| Analog meter output |
1 terminal, 0/4~20mA or 0~10V available for it |
| DO frequency signal output | 1 port, high-frequency signal output(programmable) |
| Collector open-loop output | One terminal |
| Programmable relay output | Contactor capacity: 250V AC/3A or 30V DC/1A |
| Serial communication port | RS-485 connector RS485+, RS485- |
| 4 bits LED display | Setting frequency, output frequency, output voltage, output current, motor speed, output torque, switch value terminal, programming menu parameters and fault code. |
| Five indication lamp | Parameter unit, RUN/STOP status, special status, charging status. |
| Protection function | Protection function | Over voltage, under voltage, current limitation, over current, overload of inverter, overload of motor, overheat, overvoltage stallout, load short circuit, phase fault. |
| | Protection degree | IP21 |
| Cooling mode | Forced air cooling |
| Envirenment | Ambient termearture | -10° C, +40° C |
| Termperature | 90% RH(no condensation) |
| Storage termperature | -20° C, + 60° C |
| Application area | Indoor(no corrosive odor, dust) |
| Installation area | Altitude is not more than 1000meter, no dust, no corrosive oder, no direct sunlight. |
Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in "Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port" etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
FAQ:
Q 1. What's the payment term?
A. We accept T/T, L/C, D/P, West Union, PAYPAL, Money Gram, Cash.
Q 2. What's the delivery time?
A. Sample delivered in 5 days
We deliver 20'GP qty of this frequency inverter within 25 days.
We deliver 40'HQ qty of this frequency inverter within 35 days.
Q 3. What is the standard of package?
A. Frequency inverter are packed in standard carton or wooden case.
Q 4. What is the Warranty?
A. We offer 12 months warranty for this frequency inverter.
We also supply life time technique support.
Q 5. Do you accept OEM business?
A. We accept OEM/ODM for this frequency inverter.
Q 6. What is your production capacity?
A. 10000 pcs frequency inverter each month.
Q 7. Which market do you already sell?
A. We already cooperate with clients from more than 40 countries in Europe, South America, Asia, Middle east, Africa etc.
Your inquiry will get immediately response.

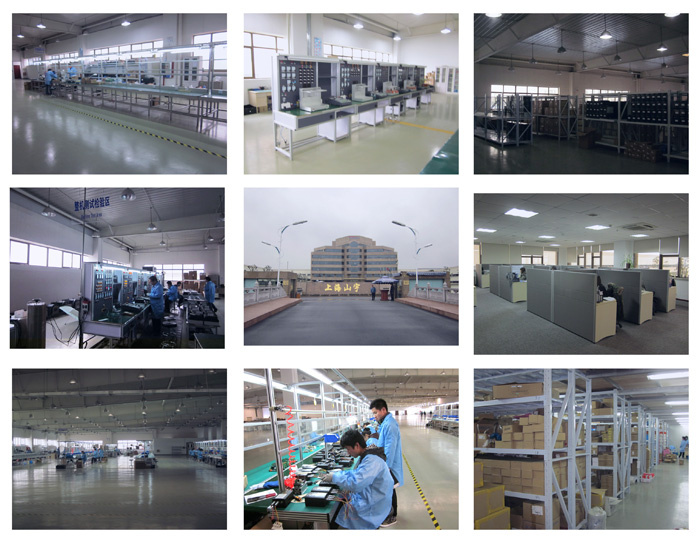

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.
SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.
In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.
Let's make a bright future together!
