High Permeability and Low Core Loss Nanocrystalline Gapped Core

Name: High Permeability and Low Core Loss Nanocrystalline Gapped Core
Brand: all-electronics-online.com
SKU: 781844475
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CORE AM ID/ODXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Low Remanence:	High Pulse Permeability
Application:	Audio
Coil:	Amorphous Alloy Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Separated Winding Transformer
Phase:	Single and Three

Product Description

Features:

Low remanence

High pulse permeability

Low core loss

Good frequency character and temperature stability

Applications:

Unipolarity pulse transformer

Switching power supply and choppers,triggers

Current leakage circuit breakers with DC bias

1.We can respond the inquires with two hours
2.The delivery time about 5days
3.Our products have more competitive price
4.Our products which from the top supplier have the best raw material and

best quality

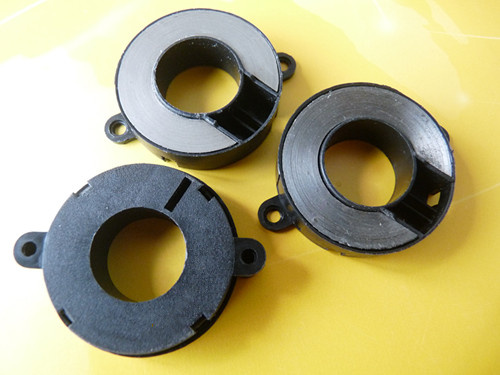

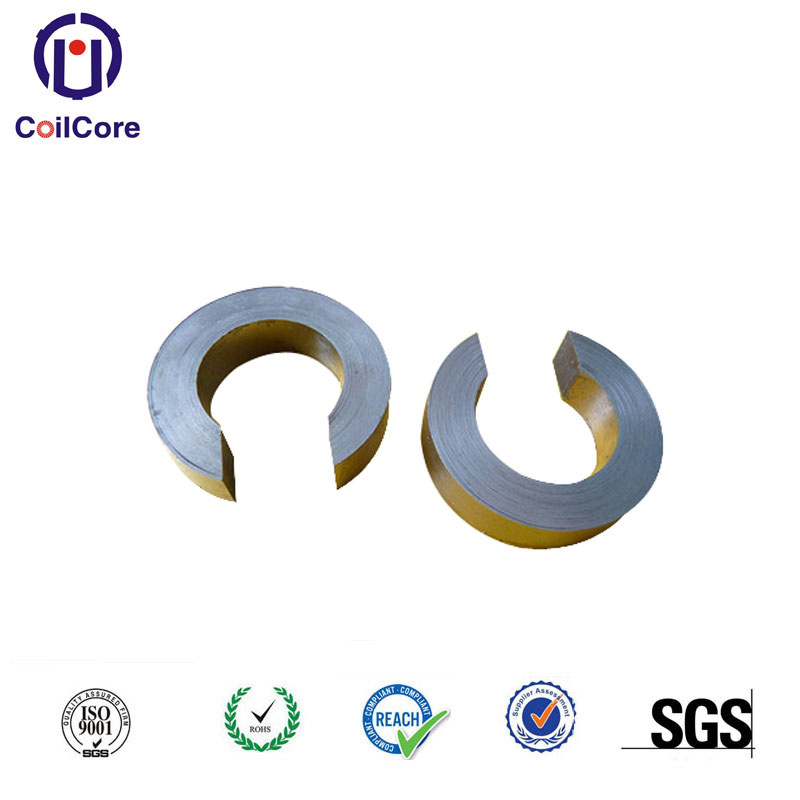

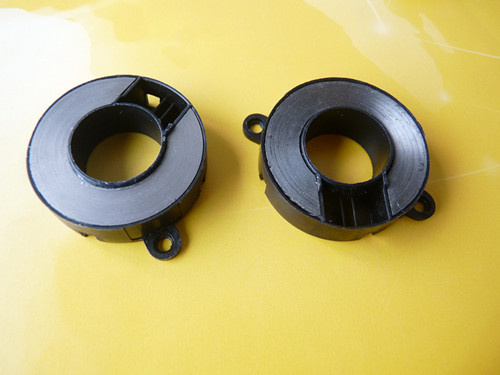

There are some pictures about the product

Description	100 µ are gapped toroids made from iron based METGLAS amorphous alloy 2605SA1. They offer a unique combination of high saturation induction (1.56T), high permeability and low core loss. MICROLITE® 100 µ cores are suitable in high frequency, energy storage applications. As with all other METGLAS products, 100 allow the use of significantly smaller sizes than other conventional soft magnetic materials.
Application	SMPS Output Inductors Differential Input Inductors PFC Inductors, Auto Inductors
Characteristics	High initial permeability: 5~20 times higher than ferrite core High saturate induction density: 2-3 times higher than ferrite core, not easy be saturated in high current fields Excellent temperature stability-with the serving temperature from 55 to 130"C for a long time. The Curie temperature is higher. The properties are not changeable easily even in unstable working temperature. Good frequency flexibility-better controlling to the noise in different frequencies. Higher anti-unbalanced-current: Specially made Nano-crystalline EMC Common Mode Choke Cores can guarantee 104 permeability when resist 80A/m unbalanced current bias field.
Specification Sheet	a-core build; b-window width; c-window height;d-strip width; e-core width;f-core length;Lm-length of magnetic path; Ac-section area;Mass-weight;

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
