High PF No Flicker LED Driver 3W 7W 12W 18W 30W 40W Optional Current 5 Years Warrenty

Name: High PF No Flicker LED Driver 3W 7W 12W 18W 30W 40W Optional Current 5 Years Warrenty
Brand: all-electronics-online.com
SKU: 734441692
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 1.2-4.2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Type:	LED Driver
Output Current:	300mA 350mA 500mA 700mA 800mA 1000mA
Lifespan:	50000hours
Warranty:	5 Years
Certificate:	Ce TUV
Cover Material:	PC
Flicker:	No
Usage:	Industry
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Sun Run

Product Description

high PF no flicker led driver 3-40w optional current 5 years warrenty

Home

Product feature:

1. Full protective insulation plastic shell with cable grips, meet IP20

2. Protections: Short circuit/ Over voltage/ Over temperature/ Over current

3.CE approved 5 years Warranty

4. Full Load burn-in test

5.Low cost, high reliability

6. Apply to LED indoor lighting, commercial lighting, residential lighting

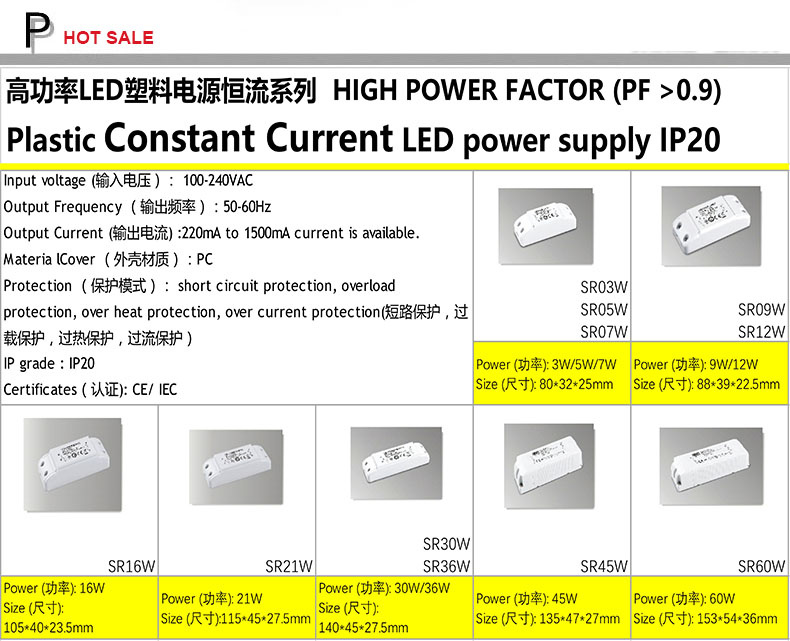

model	input voltage	constant current	operating voltage range	standby power	PF	Flicker	certificate	Dimenions
model	input voltage	constant current	operating voltage range	standby power	PF	Flicker	certificate	L(mm)	W(mm)	H(mm)
SR03WxxxMC-1	100v-240v	as required by clients	depend on output current and driver power	3w	0.6	no	ce	80	32	22
SR05WxxxMK-1	100v-240v			5w	0.6	no	ce	80	32	22
SR07WxxxMK-1	100v-240v			7w	0.6	no	ce	80	32	22
SR09WxxxSI-1	100v-240v			9w	0.6	no	ce	88	39	22.5

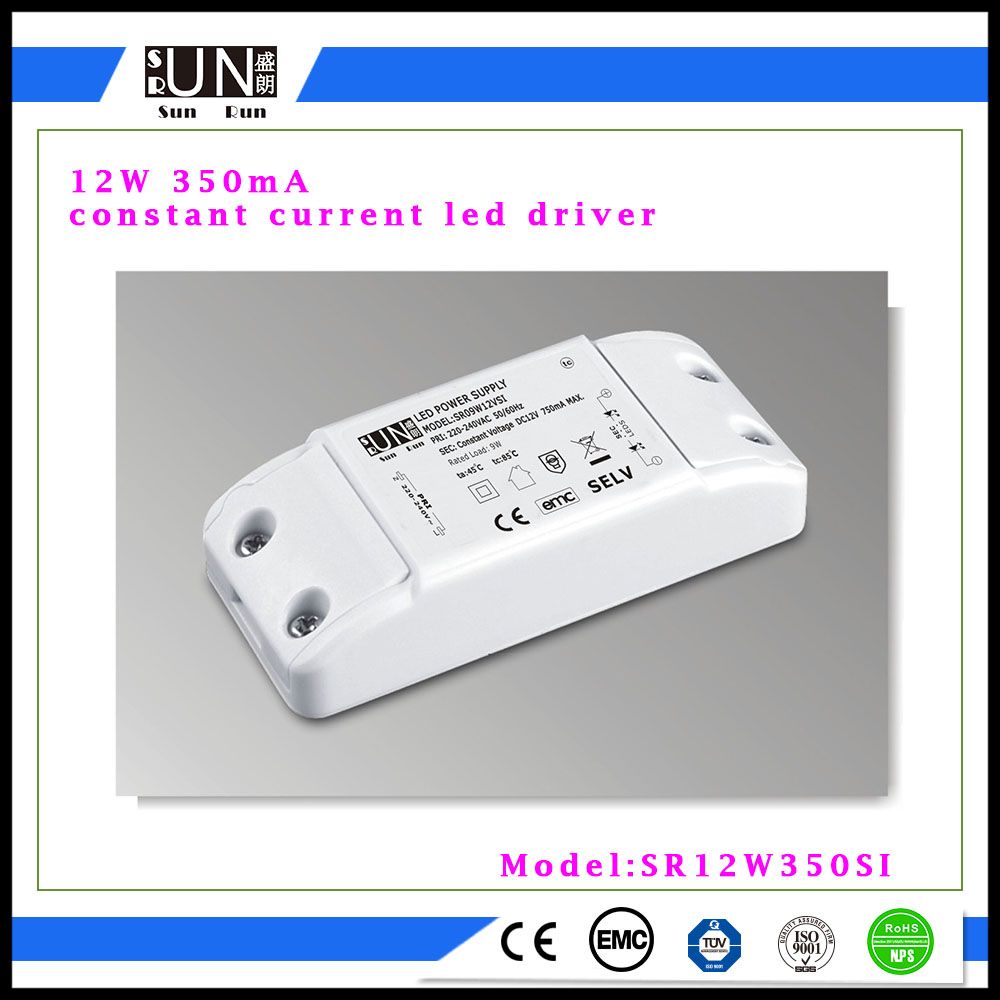

SR12WxxxSI-1	100v-240v			12w	0.9	no	ce	88	39	22.5
SR16WxxxMS-1	100v-240v			16w	0.9	no	ce	105	40	23.5
SR21WxxxMS-1	100v-240v			21w	0.9	no	ce	115	45	27.5
SR24WxxxMS-1	100v-240v			24w	0.9	no	ce	115	45	27.5
SR30WxxxBS-1	100v-240v			30w	0.9	no	ce	140	45	27.5
SR36WxxxBS-1	100v-240v			36w	0.9	no	ce	140	45	27.5
SR40WxxxBS-1	100v-240v			40w	0.9	no	ce	140	45	27.5

Sun Run Electronics Factory is located in Foshan City of Guangdong Province, we also have branch office located in Jiangmen City. We are engaged in the LED Power Supply / LED Linear lights research, development, design Production and sales together. We have adequate experience on OEM, ODM, but also have professional domestic and overseas engineers to ensure our design and innovation ability to grow in step with international level.

We are making a trial of ISO9001: 2008 quality management system standards, including set up strict material control and suppliers management system. And we adhere to the automatic manufacturing primarily, which can effectively reduce the costs and repair rate. In addition, we executes 100% full load aging after once product testing, double inspection before shipping. All processes compliant with RoHS.

Sun Run Electrics are mainly produce indoor and outdoor high power LED power supply/ LED driver and LED linear lights for lighting projects.

All of our constant current and constant voltage design scheme are with open-circuit protection, short circuit protection, over-load protection, and automatic restore function.

Advantage on: Creative design, safety, reliability, environmental, cost-efficient, long life time, easy installation. Mostly we exported to Europe, South America, Asia, Australia, Africa, and other regions. Even have ELT/ DLC/ SAA/ CB/ CE, TUV, IEC / RoHS certifications. The innovative design we consider the high efficiency, high Power Factor, environmental-friendly and energy-saving, which is our super ordinate goal.

Sun Run Electronics, quality assurance, perfect after-sales service!
