High Power 1000W Constant Voltage LED Power Supply with Ce

Name: High Power 1000W Constant Voltage LED Power Supply with Ce
Brand: all-electronics-online.com
SKU: 780847305
Availability: InStock
Rating: 4.8 (110 reviews)

Price:	US $ 110-117/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CV-12E1K-B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	12V
Output Current:	83.3A
Input Voltage:	180-250V
Input Current:	8.0A
Max. Power:	1000 W Max
Output-Type:	Constant Voltage
Power Factor:	Low
Efficiency:	>83%
Cooling:	Built-in Electric Fan
Operating Temperature:	-25~40oc
Usage:	Industry
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

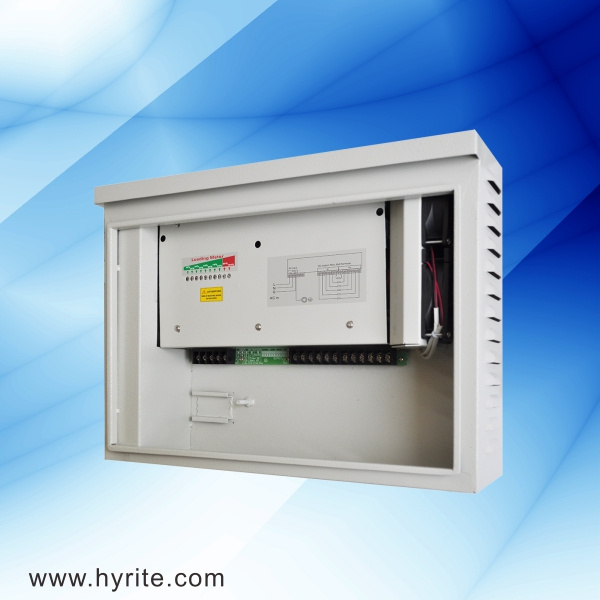

High Power 1000W Constant Voltage LED power supply with Ce

1.Breif Introductions:
-Rainproof led power supply 12V/24V
-Designed for large size outdoor signage, decoration or lighting projectss
-Unique aluminum chimney heat sink, best heat dissipation performance
-Designed for direct outdoor installation, no extra external box or cover needed.
-Optional built in power switch, timer or power consumption meter offering convenient maintenance features.
-2 years warranty,CE

2.Our main products include:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA
-IP45 Rainproof constant voltage LED power supply with CE UL
-IP20 Indoor constant voltage LED power supply with CE
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

3.Technical Specification:

Model no.	CV-12E1K-B
Input voltage	180-250 VAC 50/60 Hz
Max. power	1000 W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	>83%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	83.3A max
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 23
Cooling	Built-in electric fan
Connection input/output	Input:terminal Output: terminal(six)

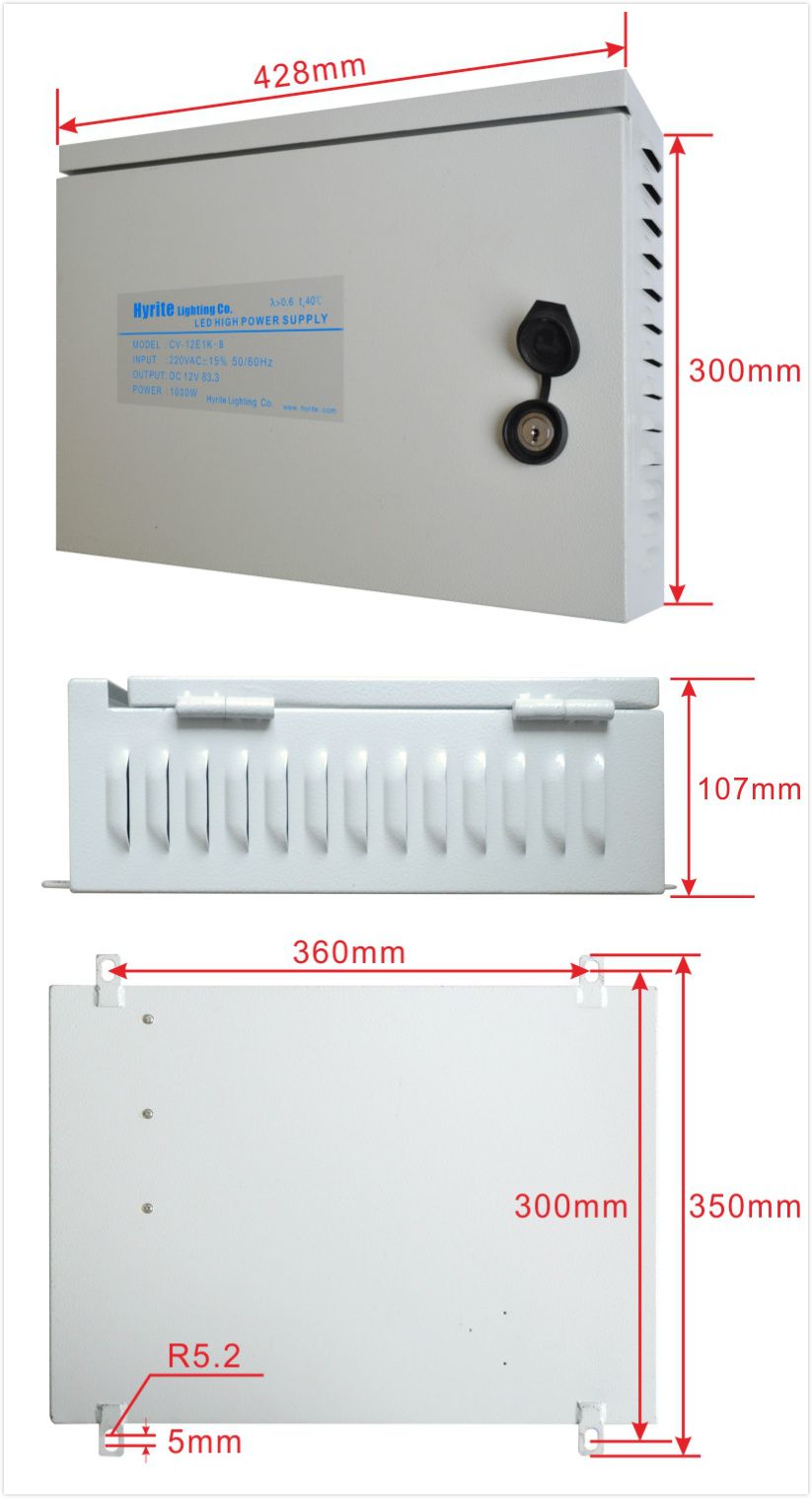

Dimensions(LWH)	360330115 mm
Weight(kg)	7.2
Packing information	1 Pcs/ Carton, G.W 8 KG

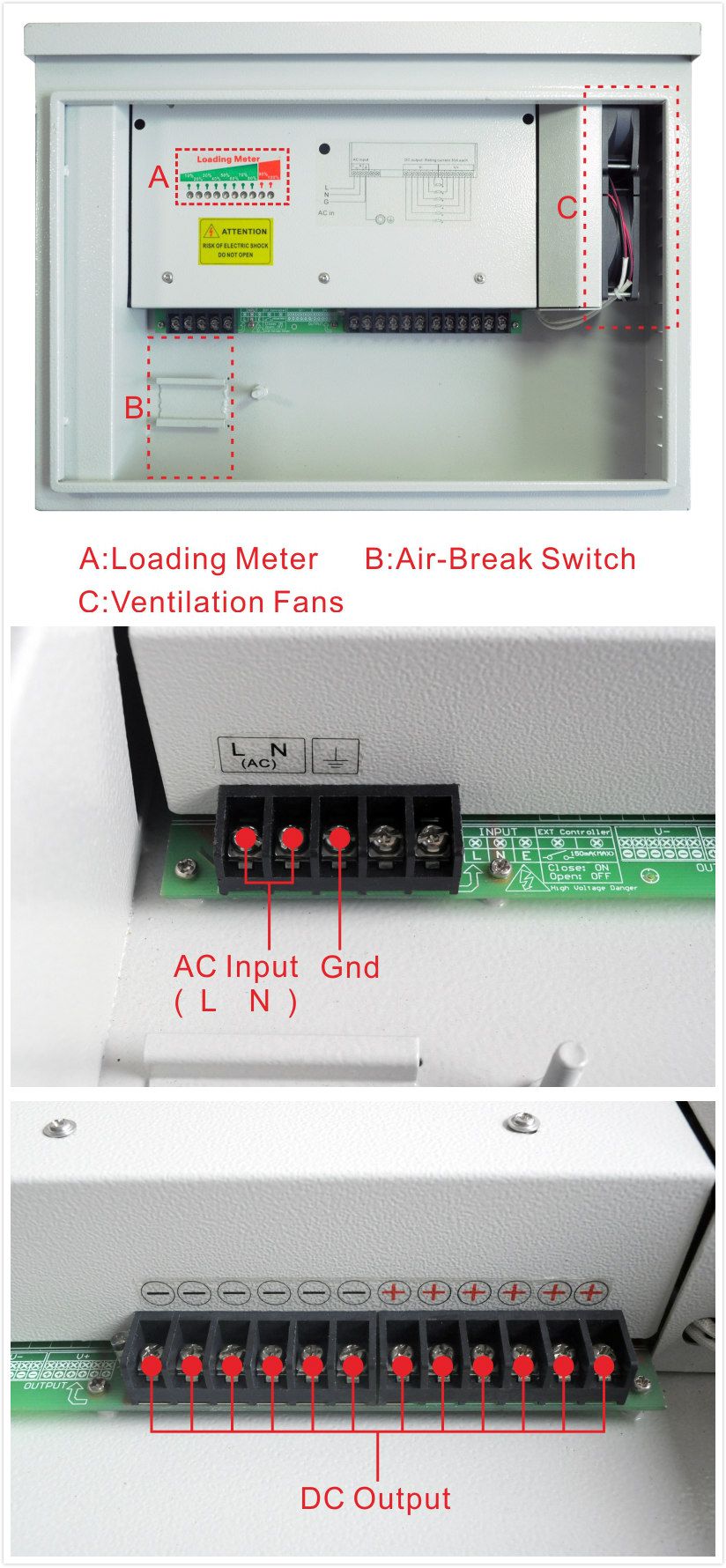

4.Product Details

\

5.Payment Terms:
-T/T,30% despites before production,70% balance to be paid before delivery
-Western Union

6.Projects&Workshops

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
