High Power 12V Hydraulic Micro DC Motor with 2500rmp

Name: High Power 12V Hydraulic Micro DC Motor with 2500rmp
Brand: all-electronics-online.com
SKU: 828985025
Availability: InStock
Rating: 4.7 (146 reviews)

Price:	US $ 45-55/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZD1215
Volt:	12V
Current:	260A
Power:	1.6kw
Weight:	7.2kg
Protect Feature:	IP44
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Type:	Zd1215
Brand:	Sanghao

Product Description

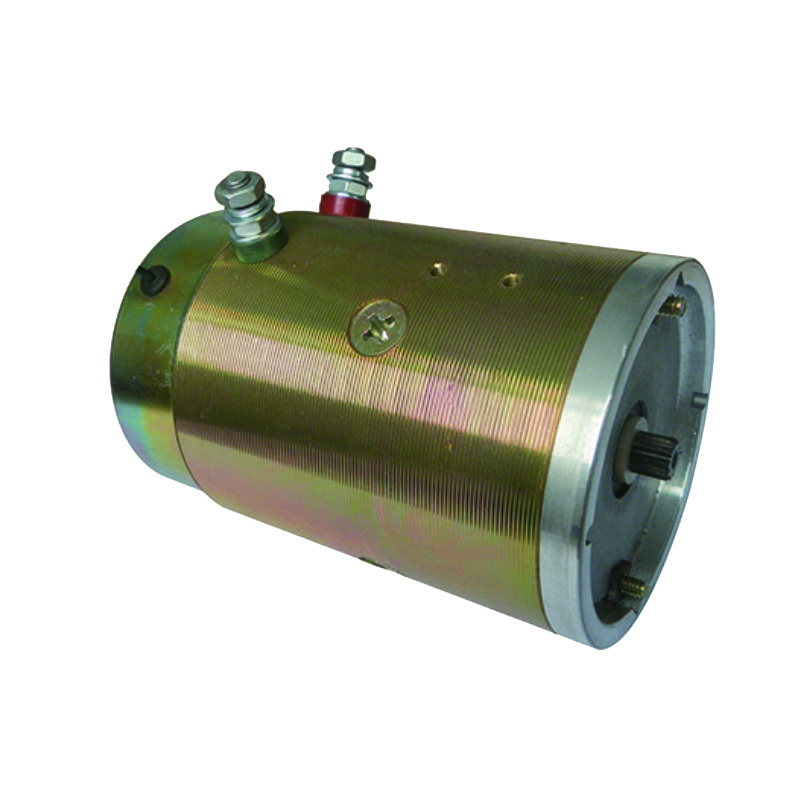

High Power 12V Hydraulic Micro DC Motor with 2500rmp

1. Motor Description

Type: ZD1215
Volt: 12V
Power: 1.6kw
Current: 260A
Speed: 2500r/min
Protect Feature: IP44
Duty: 2min-7.5%ED
Rotation: CW
Weight: 7.2kg

2. Comparison of 12V and 24V

Type	ZD1215	ZD2415
Volt	12V	24V
Power	1.6KW	2.2KW
Current	260A	155A
Speed	2500r/min	2600r/min
Protect Feature	IP44	IP44
Rotation	CW	CW
Weight	7.2kg	7.2kg

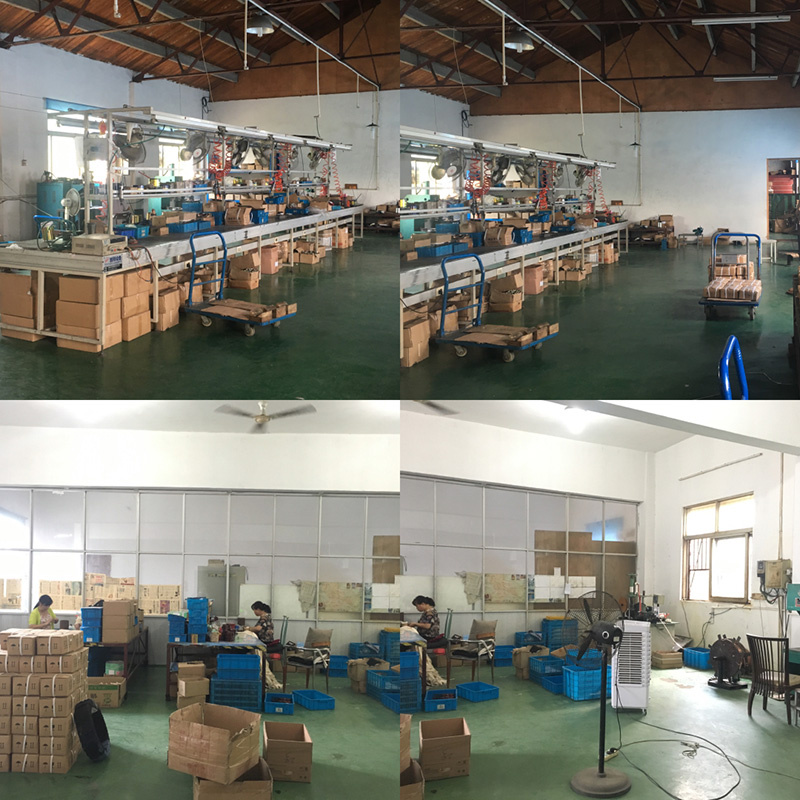

3. Motor Workshop
Our factory can produce more than 60 various kinds dc motor to satisfy the client demand and our engineer is still making new research on the new kinds and replace the old motors.

4. Package
carton box+wooden pallet

5. The Application of Motor
Dump truck, van wing door, vehicle tailboard and ect especially the hydraulic power units, all of them will use our dc motor to provide the driving. Our dc motor can be used for car, driving tools and etc.

6. Our Services
a. patient salesmen to help you know more about our company and products.
b. specialized engineer to help you learn how to use the motor
c. good quality control before the package
d. OEM and ODM services both can be provided.

7. FAQ
A. Are you a manufacture or trading company?
We are a manufacture which has our own company and located in Changzhou, Jiangsu.
B. Do you provide the sample?
Absolutely yes! We are glad to provide the sample which can make our future business.
C. Do you accept customized?
Yes, if the client can send us the sample we have the engineer to do this.
D. How long you can get the products?
If our exist products, we will arrange package and send them out immediately.
If need to do it, it should depend on your qty, around 20days will send them out.

Welcome to contact me freely if you want to know more about our factory and product!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
