| Prod Model: |
18650 |
| Charge Time: |
4h |
| Warranty: |
1year |
| Battery Style: |
China / LG / Samsung |
| Charge Temperature: |
-20-50ºC |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Rated Capacity: |
4.4ah |
| Standard Voltage: |
36V |
Product Description
Overview
Specifications
Place of Origin:Guangdong, China (Mainland) Brand Name:REVESI Model Number:36V 4.4AH
Composed Type:10S2P Type:Li-Ion Components:Lithium
Size:135*57*85mm Voltage:36V Weight:1kg
Nominal Capacity:4.4Ah Application:E-scooter, self balance scooter
Product Name:36V 4.4AH Electric Scooter Lithium Battery Certification:ROHS,MSDS,CE
Warranty:12 Months Charging Time:1-2H Working temperature:-10C°-60C°
Cycle life:1000 Times Charging Current:0.5C Max Charge Protetion Voltage:42V
Charge Method:CC-CV
Packaging & Delivery
Packaging Details: Original package or according to customer requirement.

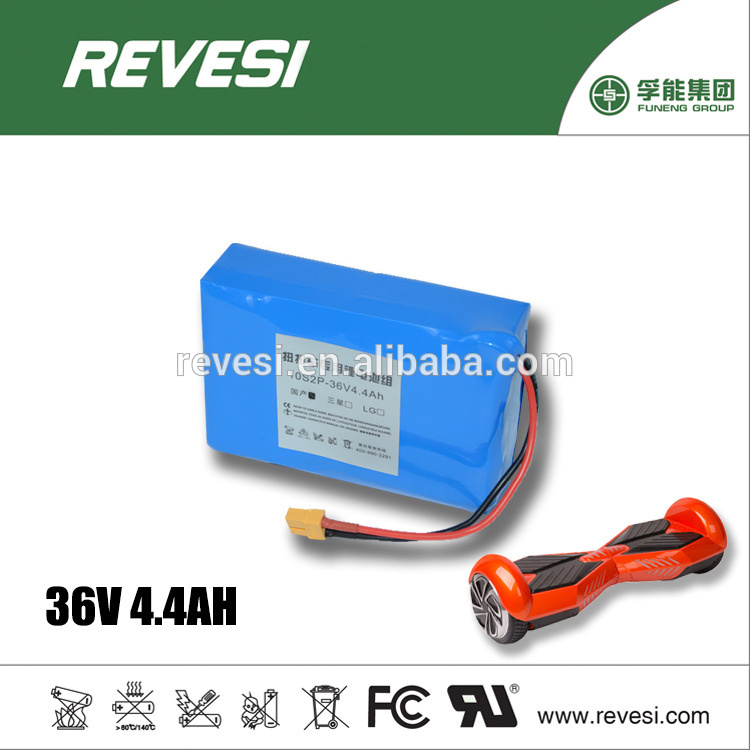

Delivery Detail: Shipped in 10 days after payment Self Balance scooter 36V 4.4AH
Rechargeable Li-ion Battery Pack
Product Description| Samsung battery pack | Specification |
| Nominal Voltage | 36V |
| Nominal Capacity | 4.4Ah(0.2C discharge) |
| Size | 135*57*85mm |
| Weight | 1kg |
| Composed Type | 10S2P |
| Max Charge Protetion Voltage | 42V |
| Charging Current | 0.5C |
| Charging Time | 1-2H |
| Charge Method | CC-CV
(constant current and constant voltage ) |
| Max Discharge Current | 2A |
| Recharge Cycle Life | More than 500times |
| Working Temperature | Charge | 0~45°C,45~85%RH |
| Dis-charge | -20~60°C,45~85%RH |
| StorageTemperature | One month | -20~60°C,45~85%RH |
| and Humidity | Three months | -20~45°C,45~85%RH |
| | One year: | -20~25°C,45~85%RH |
| Protection Fuctions | Over charge, Over discharge,
Over load, Short Circuit |
| Warranty | 12 months |
Advantages
1.Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 500 times deep cycle 80% capacity left,4 times of lead acid battery
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH/Ni-Cd battery, 1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Safety Precaution
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway.
The main application
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment
Testing Process
Our comprehensive testing procedure guarantees the quality that we promise to our customers.
We ensure that we only ship out goods which we have tested and approved with the following testing methods used:
| -Impact Test | -Heating Test |
| -Vibration Test | -Over charge Test |
| -Drop Test | -Over discharge Tes |
| -Pulling Test | -Altitude Simulation Test |
| -Puncture Test | -Short Circuit Test |
FAQ
1. SHIPPING: We will ship by Fedex,UPS,TNT,DHL door to door.Shipping time is 3-5 working days.
2.Discount:if you order above 5pcs per order please contact with us we can give you some discount.
3.Guarantee;1 year warranty,if there is any quality problem in one month we can return the money after you provide the proof.
4.All the battery we use high quality cell and BMS,we 100% test every battery before shipping.Rest assured purchased!
Any question will be highly appreciated!
