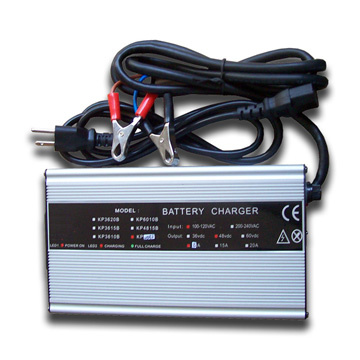

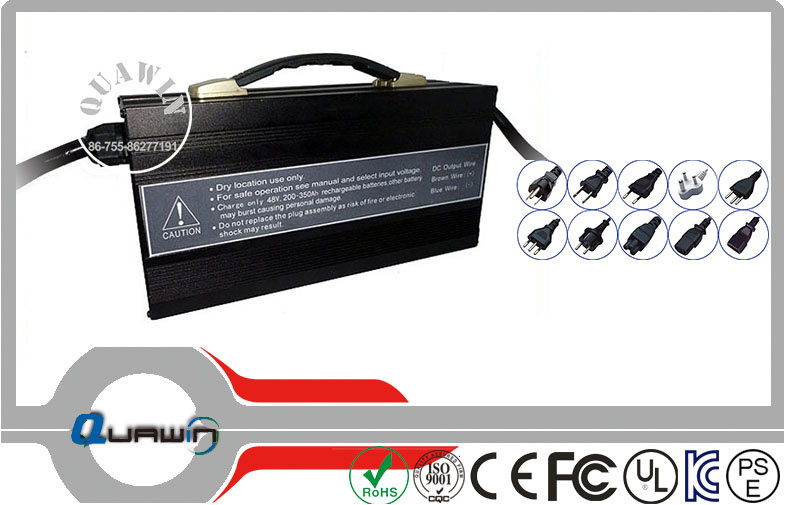

High Power 48V 15A Lead Acid Charger

High Power 48V 15A Lead Acid Charger
Price: US $ 20/Piece
Trade Terms: FOB,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QW480-150-S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Desktop Type: Yes
Warranty: One Year
Delivery Date: 15days
Type: Lead-Acid Battery Charger
Charging Type: Electric Charger

Product Description

Lead Acid Charger High Power 48V 15A

Specification
Max. Output power Input voltage Output voltage Output current range Combined regulation
550W 110Vac +58.8+/-0.2Vdc 7.5-8.5A +/-0.2V

Environmental condition
No. Item Technical specification Remark
1 Humidity 5~95% With package
2 Altitude ≤3000m Work normally
3 Cooling The power supply is cooled by 48VDC ball-bearing fans forced air Working under full load


No. Item Technical specification Remark
1 Rated input voltage 1100Vac 110Vac single input
2 Input voltage range 90 ~ 132Vac
3 AC input voltage frequency 50-60 Hz


Output characteristic
No. Item Technical specification Remark
1 Fast charge voltage 58.8+/-0.2Vdc
2 Floating voltage 55.2Vdc
3 Constant current 8.0A
4 Switch current 1.6A
5 Power efficiency ≥90%
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
