| Prod Model: |
BBG-EB-4830S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Electric Vehicle |
| Structure: |
Icr18650 2200mAh 14s14p |
| Case Dimension: |
292*193*97mm(Customized) |
| Working Current: |
45A |
| Peak Current: |
90A |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Standard Voltage: |
48V |
| Usage: |
E-Vehicle |
| Electrolyte: |
Li-ion |
Product Description

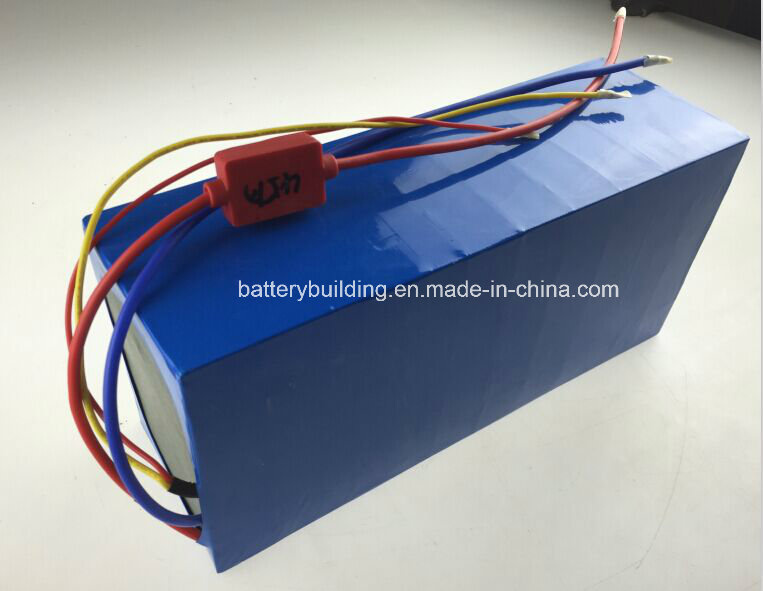

High power 48V 30Ah lithium battery pack for e-vehicle
Features
1. 48V 30Ah rear rack type lithium-ion battery
2. 800 times cycles
3. Stable performanc
4. No memery effect
5. High energy density
6. ICR18650 2200mAh 14S14P
Details
| NO | Item | General Parameter | Remark |
| 1 | Model | BBG-EB-4830S | |
| 2 | Standard capacity(0.5C) | 30Ah | |
| 3 | Rated voltage | 48V | |
| 4 | Max. charge voltage | 58.8V | Single Ave. charge Voltage: 4.2V |
| 5 |
Over charge protection
| Over charge detection voltage | 4.40±0.025V | |
| Over charge release voltage | 4.3±0.025V | |
| 6 | Standard charge current | 5A | C |
| 7 | Charging time | About 6-7 hours | X C |
| 8 | Discharge cut-off voltage | 38.5V | Single Ave. Discharge Voltage: 2.75V |
| 9 |
Over discharge Protection
| Over discharge detection voltage | 2.5±0.05V | |
| Over discharge release voltage | 2.75±0.05V | |
| 10 | Max. continuous discharge current | 45A | C |
| 11 | Peak discharge current | 90A | C |
| 12 | Short circuit protection | Detetion delay time | XXμs | Release condition | Cut-off load |
| 12 | Battery dimension | 292*193*97mm(customized) | |
| 13 | Total weight(Approx.) | About 10kg | |
| 14 | Operation temperature | Standard | 0ºC~45ºC | |
| Discharge | -20ºC~65ºC | |
| Storage | -20ºC~65ºC | |
Payment Terms
1.We accept bank transfer(T/T) ,PayPal,Cash.
2.If you prefer other payment method,please contact us by email.
Shipping Terms
1.Samples order: sending by Express ( DHL/ UPS/ FEDEX/ TNT )
2.Bulk order: sending out by air/express/sea.
Warranty Instructions
1.We provide 2 years Warranty.
2.Warranty code: quality problems, defective goods can be fixed or replacement; Man-made damage, inflowing water, fault operation leading to short circuit or burning, damaged by carrier is out of our warranty.
3.Goods should be returned in original condition to qualify for a replacement or repair.
Advantages
1.OEM&ODM manufacture, design any of special shape, dimension and other requirements battery packs.
2.Good quality, competitive price, fast delivery, excellent service.
3. Wonderful package, stable shipment, 100% testing and inspection before shipment to insure the quality.
4.CE, RoHS, UN38.3, UL, MSDS certificates.
5. Quick action&response,every inquires will be relied within 24 hours.
More models:
Model | Style | Material | Voltage | Capacity | Dimension | Weight | Charger |
| Include BMS and housing |
| (V) | (Ah) | L*W*K (mm) | (kg) | (A) |
| BBG-SF-LFP2408 | Silver fish | LiFePO4 | 24 | 8 | 75*110*378 | 4 | 2 |
| BBG-SF-LFP24081 | Silver fish | LiFePO4 | 24 | 8 | 89*89*401 | 4 | 2 |
| BBG-SF-LN2410 | Silver fish | LNCM | 24 | 10 | 89*89*401 | 3.5 | 2 |
| BBG-RR-LFP2408 | Rear rack | LiFePO4 | 24 | 8 | 70*150*245 | 4 | 2 |
| BBG-RR-LN2410 | Rear rack | LNCM | 24 | 10 | 70*150*246 | 3.5 | 2 |
| BBG-SF-LFP2410 | Silver fish | LiFePO4 | 24 | 10 | 75*110*378 | 4.2 | 2 |
| BBG-LF-LFP2410 | Frog | LiFePO4 | 24 | 10 | 80*150*180 | 4.2 | 2 |
| BBG-RR-LFP2410 | Rear rack | LiFePO4 | 24 | 10 | 70*150*245 | 4.2 | 2 |
| BBG-WB-LFP2410 | water bottle | LiFePO4 | 24 | 10 | 91*91*410 | 4.5 | 2 |
| BBG-SF-LFP2420 | Silver fish | LiFePO4 | 24 | 20 | 135.5*88.8*395 | 6 | 5 |
| BBG-SF-LFP3608 | Silver fish | LiFePO4 | 36 | 8 | 75*110*385 | 4.2 | 2 |
| BBG-RR-LFP3608 | Rear rack | LiFePO4 | 36 | 8 | 70*150*365 | 4.2 | 2 |
| BBG-LF-LFP3606 | Frog | LiFePO4 | 36 | 6 | 80*150*180 | 4 | 2 |
| BBG-SF-LFP3610 | Silver fish | LiFePO4 | 36 | 10 | 75*110*385 | 4.5 | 2 |
| BBG-RR-LFP3610 | Rear rack | LiFePO4 | 36 | 10 | 70*150*365 | 4.5 | 2 |
| BBG-WB-LN3610 | water bottle | LNCM | 36 | 10 | 91*91*435 | 4 | 2 |
| BBG-FB-LN3610 | Frog | LNCM | 36 | 10 | 80*150*180 | 4 | 2 |
| BBG-RR-LFP3612 | Rear rack | LiFePO4 | 36 | 12 | 69*150*480 | 4.5 | 2 |
| BBG-SF-LFP3612 | Silver fish | LNCM | 36 | 12 | 89*85*385 | 4.5 | 2 |
| BBG-RR-LN3614 | Rear rack | LiFePO4 | 36 | 14 | 68*148*385 | 5.5 | 3 |
| BBG--RR-LFP4810 | Rear rack | LiFePO4 | 48 | 10 | 68*150*480 | 7 | 2 |
| BBG-LFP4820 | Epoxy board & PVC packaged | LiFePO4 | 48 | 20 | 320*140*150 | 14.5 | 4 |
