| Prod Model: |
HPM20KL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
48V/60V/72V/96V |
| Rated Power: |
2kw-3kw |
| Peak Power: |
6kw |
| Efficeincy: |
>90% |
| Rated Torque: |
10 N.M |
| Peak Torque: |
25 N.M |
| Dimension: |
18cm Dia. 12.5cm Height |
| Weight: |
8kg |
| Application: |
Power Tools |
| Operating Speed: |
High Speed |
| Excitation Mode: |
Excited |
| Structure And Working Principle: |
Brushless |
| Certification: |
CE, SGS, FDA |
Product Description
high power brushless dc motor with sine wave controller
Introduction:
We are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the voltage range from 24V to 120V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.
Product Features:
Long working life (>20,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage : 24-120 VDC
Rated power : 200W-20,000W
Rated speed: 2000-6000 rpm
Stepless speed control, dual-direction
NEW!!
BLDC Motor
(HPM3000A)
Air cooling |
Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan |
Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN
Type: 72V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |
NEW!!
BLDC Motor
(HPM3000L)
Liquid cooling |
Voltage:48V/60V/72V
Rated Power:2KW-3KW
Peak Power: 6KW
Efficeincy: >90%
Speed: 3000-5000rpm
Rated torque: 10 N.m
Peak torque: 25 N.m
Dimension: 18cm dia. 12.5cm height
Weight: 8KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan |
Type: 48V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN
Type: 72V3000W
Weight: 8kgs/unit Measurement:25cm*25cm*26cm/CTN |

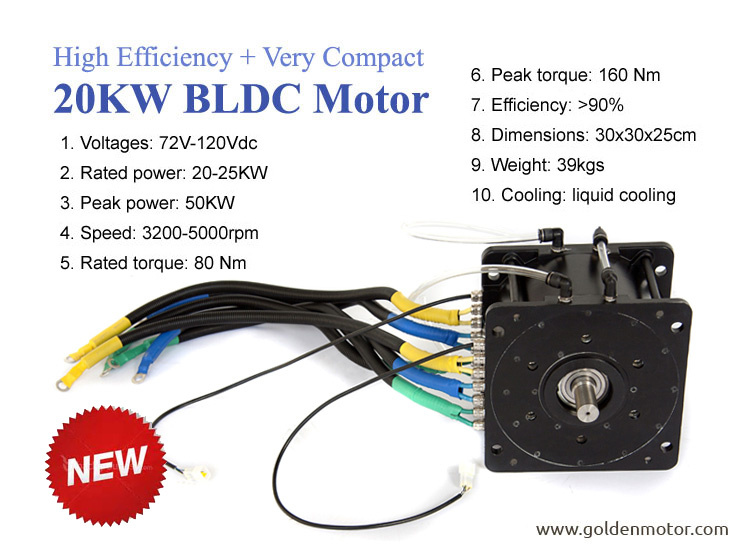

NEW!!
BLDC Motor
(HPM20KL)
-Liquid cooling |
Voltage:72V-120VDC
Rated Power:20KW-25KW
Peak Power: 50KW
Efficeincy: >90%
Speed: 3200-5000rpm
Rated torque: 80 N.m
Peak torque: 160 N.m
Dimension: 30x30x25cm
Weight: 39KG
Features: Compact design,Water resistent, Stainless Steel Shaft, Self Cooling Fan |
Type: 72V20KW
Weight: 39kgs/unit
Type: 96V20KW
Weight: 39kgs/unit |
