| Prod Model: |
SBW Three Phase Voltage Stabilizer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Range(V): |
304~456V, 175-254V |
| Output Voltage: |
380V,220V±(1-5%)Settable |
| Ambient Temperature: |
-5~+40 |
| Response Time: |
<0.5s |
| Efficency: |
>98% |
| Temperature-Rise: |
≤80k |
| Waterproof Class: |
IP54 |
| Withstand Voltage: |
2000V/1min |
| Waveform Distortion: |
<1% |
| Current Type: |
AC |
| Usage: |
SVC |
| Frequency: |
Industrial Frequency |
| Phase: |
1,3 |
Product Description

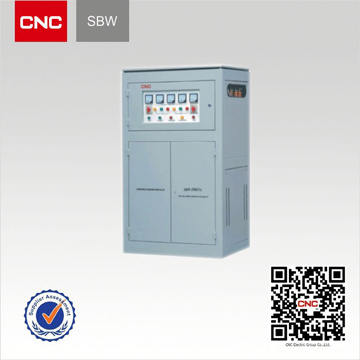

High Power Compensation Single, Three Phase Voltage Stabilizer(SBW)
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
This product is designeg and developed with the international advanced compensation technology. It can keep the output voltage in steady state automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer run smoothly. It has the advantage of large capacity, high efficiency, no waveform distortion, simple operation and maintenance, reliabie running, full-capacity output under tower input voltage if compared with other voltage stabilizer. It is provided with over-voltage, over-current, phase sequence and so on protection function
It is suitable for electric supply in small-sized plant, workshop and department inmiddle, large-sized mining enterprise, it can be widely used in the precision machine tool, precision instrument, test device, elevator, imported electromechanical device, production flow-line in the mining enterprise, oil field, railway, building site, school, hospital, hotel, scientific research department and so on, it is also suitable for the user in the LV electric network end with low power voltage and big wave range.
General
SBW svr automatic voltage stabilizer
1. Servo motor control
2. Professional of stabilizer
3. Competitive price
WHY US?
1. We Are Suppler of Three Gorges Project, China National Petroleum, Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
Model
|
SBW20KVA-1000KVA(Triple)
|
DBW10KVA-100KVA(single)
|
Input voltage range
|
304V-456V
|
176V-264V
|
Output voltage
|
380V±(1-5%)settable
|
220V±(1-5%)settable
|
Regulation accuracy
|
±(1-5%)settable
|
Insulation resistance
|
≥2M Ω
|
Withstand voltage
|
2000V1min no disruption or
flashover phenomenon
|
1500V1min no disruption or
flashover phenomenon
|
Frequency
|
50HZ/60HZ
|
Response time
|
≤1.5S(when output voltage has changed 10%)
|
Efficiency
|
≥98%
|
Waveform aberration
|
<1%
|
Ambient temp
|
-5°C-+40°C
|
Relative humidity
|
<90%
|
Model
|
Measurement (cm)
|
Output power(KVA)
|
Weight (KG)
|
SBW-50K
|
80×62×135
|
50
|
250
|
SBW-60K
|
80×62×135
|
60
|
350
|
SBW-100K
|
85×62×150
|
100
|
420
|
SBW-150K
|
100×72×170
|
150
|
550
|
SBW-180K
|
100×72×170
|
180
|
570
|
SBW-200K
|
100×72×200
|
200
|
630
|
SBW-225K
|
110×80×180
|
225
|
660
|
SBW-250K
|
110×80×200
|
250
|
700
|
SBW-300K
|
110×80×210
|
300
|
740
|
SBW-320K
|
110×80×210
|
320
|
760
|
SBW-400K
|
100×80×210/2cabinet
|
400
|
1100
|
SBW-500K
|
100×80×210/2cabinet
|
500
|
1500
|
SBW-600K
|
100×80×210/2cabinet
|
600
|
2200
|
SBW-800K
|
85×100×220/3cabinet
|
800
|
2800
|
SBW-1000K
|
85×100×220/3cabinet
|
1000
|
3500
|
SBW-1200K
|
85×100×220/3cabinet
|
1200
|
4100
|
SBW-1600K
|
110×110×220/4cabinet
|
1600
|
5560
|
SBW-2000K
|
110×110×220/4cabinet
|
2000
|
7100
|
