High Power GPS Tracker PCBA PCB Board Assembly Factory with Turnkey Service

Name: High Power GPS Tracker PCBA PCB Board Assembly Factory with Turnkey Service
Brand: all-electronics-online.com
SKU: 765006055
Availability: InStock
Rating: 4.9 (37 reviews)

Price:	US $ 0.05-0.23/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fl9916
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB Layer:	1-26 Layers
Solder Mask:	Green
Silk Screen:	White
Surface Treatment:	HASL
PCB Assembly Type:	SMT and DIP
PCB Service:	One Stop Service
Small Orders:	Accepted
Copper Thickness:	1oz
Board Thickness:	1.6mm
Lead Time:	12-20 Days
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Multilayer
Base Material:	FR-4
Certification:	UL
Customized:	Customized
Condition:	Customized

Product Description

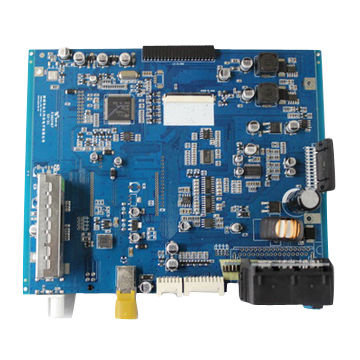

High Power GPS Tracker PCBA PCB Board Assembly Factory with Turnkey Service

Commodity Introduction
This is a type of FR-4 PCB for the application of GPS tracker. It's a 2 layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 2 boards or panels are packed separately.

Parameters & Data Sheet

Board dimension	120x 73mm
Board Type	Double Sided PCBA
Board Thickness	1.6mm +/-0.16
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	135ºC

Surface Finish	HASL Lead free
RoHS Required	Yes
Surface Cu thickness	35 um (1oz)

Color of Silkscreen	White
Number of Silkscreen	1
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Through hole assembly	YES
Sides of through hole assembly	2
SMD assembly	YES
Sides of SMD assembly	2

Total quantity of components	15
Quantity of SMT	8
Quantity of Through holes	7
Applications
RoHS Required	YES

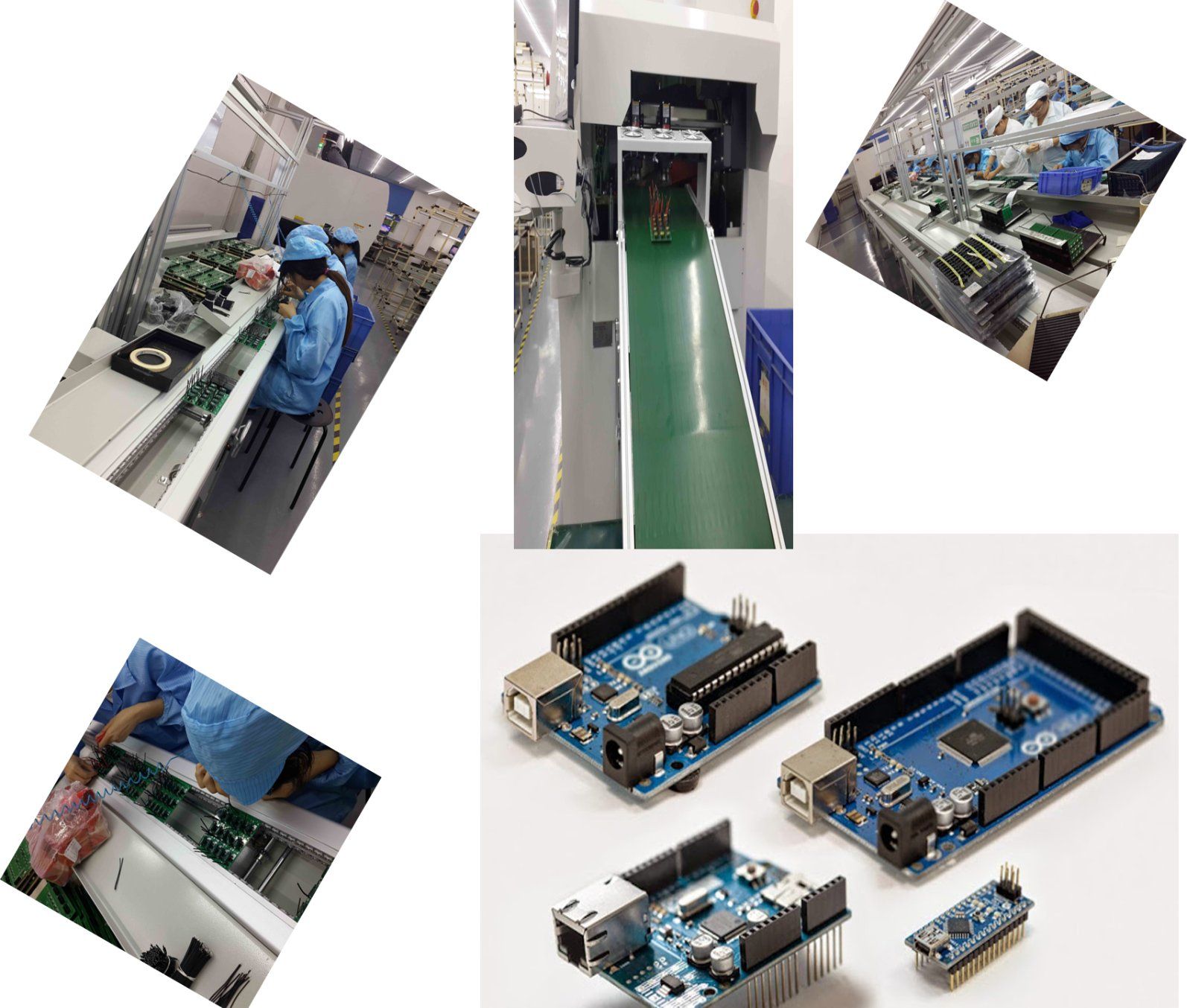

Workshop:

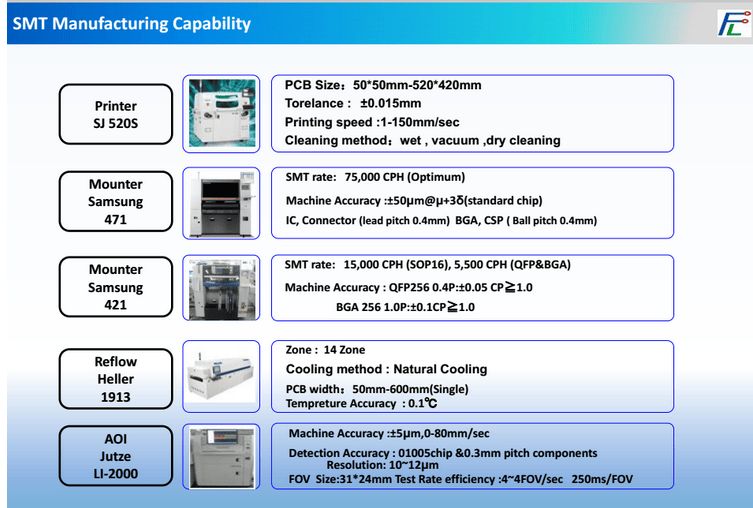

Capability

Payment&ship

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
