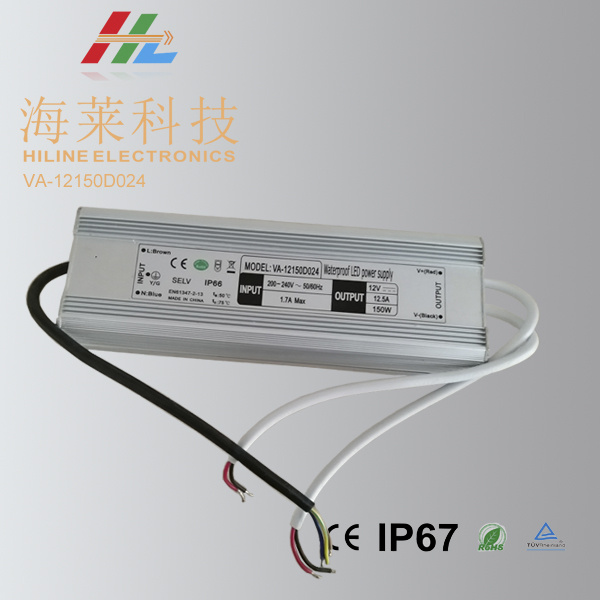

High Power LED 12VDC/24VDC 150W Waterproof Driver for Lighting

Name: High Power LED 12VDC/24VDC 150W Waterproof Driver for Lighting
Brand: all-electronics-online.com
SKU: 808995885
Availability: InStock
Rating: 4.5 (21 reviews)

Price:	US $ 17.5-19/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HL-VA-12150D024
Size:	24067.544.8mm
Color:	White or Black
Material:	Aluminum
Usage:	Vehicle
Output Type:	Single
Circuit Structure:	PWM Controlled
Driving Method:	Constant Voltage
Power Supply Voltage:	AC90-130V/AC170V-250V
Brand:	Hl

Product Description

150W LED IP67 Waterproof Driver Features:

1.Small size,High efficiency,High reliability,Long lifetime;

2·IP67 rating;

3·Working temperature -25~+50°C

4·Protection:Overload,Short-circuit pratection,Over-temperature;

5·Typical efficiency:89%

6·Start delay design,which can reduce the starting current when multiple simulatance start;

7·CE,IP67 certifide,ROHS compliant;

8·Low output ripple moises.

150W LED IP67 Waterproof Driver Specifications:

Item No.	HL-VA-12150D024/ HL-VA-24150D024
Input Voltage	170-264V
Output Voltage	12V±0.5V/24V±0.5V
Output Current	12.5A/6.25A
Output Power	150W
Power type	Constant Voltage
Color	Silver
Material	Aluminum
Quality	High reliability
Series	Diamond
Strong point	High reliability and Low price
MOQ	1Pcs

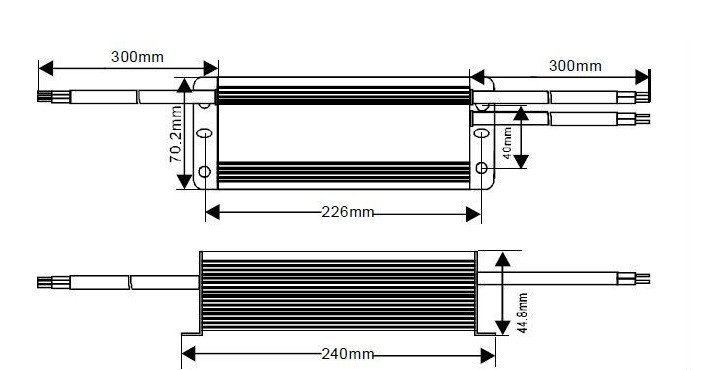

Size	24067.544.8mm
Weight	1300g
Electric wire request	Input with SJTW 18AWG×3C(UL)500mm
	output with SJTW 18AWG×2C
	black "-" white "+" (UL)500mm
Protected functions	Short circuit/Over voltage/Over temperature
Warranty	2 years warranty
Maket	Europe&Australia&American and Others
Standard	CE&IP67

Applications

*Office lighting, Artwork lighting, Display case

*Home lighting

*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.

*Hotel, Restaurant lighting

*Other public lighting

Important Parameter

Store Temperature: -25~75°C

Working Temperature: -25~50°C

Work environment: Indoor or outdoor installations

Waterproof Rating: IP66

Packing

10PCS/Carton

Carton size: 320*245*200mm

Structure:

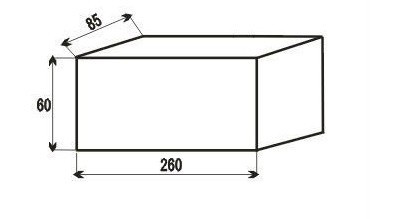

Dimension of inner box

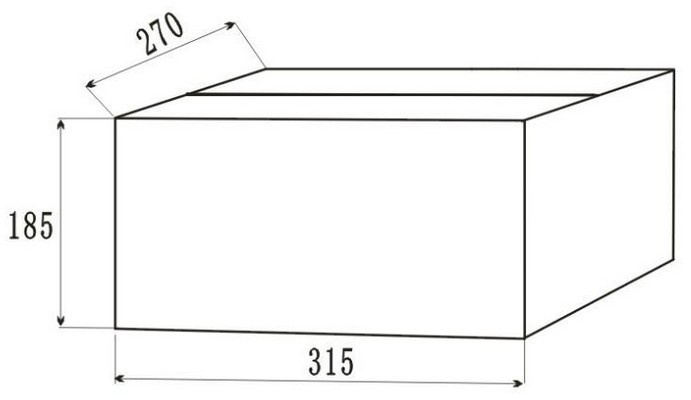

Dimension of outer carton

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
