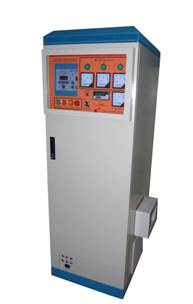

High Power Medium Frequency Induction Heating Machine (SPZ-300)

High Power Medium Frequency Induction Heating Machine (SPZ-300)
Price: Negotiable
Min Order: 1
Prod Model: SPZ-300

Product Description

Features:

1. All-solid-state IGBT frequency conversion and power adjustment, soft-Switching resonance dual-control and frequency automatic tracking Technology is the reliability of guarantee.
2. Super small size, greatly reduces occupation space.
3. High efficiency and energy saving: A high power factor and powerEfficiency within the scope of full power.
4. With wide frequency 1-20KHz automatic tracking ability, no need Adjustment at scene.
5.100% duty cycle, 24 hours continuous working ability.
6. Constant output voltage or power control modes are alternative;
7. Full display of output frequency, power, voltage and current.

            Name


High Power Medium Frequency Induction Heating Machine with separated capacity box

Model No.

SPZ-300

Max.Input Power

300KW

Output Voltage

70-550V

Input Voltage

3-phase 380V  50 or 60HZ

Max Output Current

480A

Output
Oscillation Frequency

2KHZ-20KHZ

Duty Cycle

100%  24 hours continuous working

Main Machine Dimension

56 X 175 X 56cm

Capacity Box
Dimension

106 x 46 x 67 cm

Remark:

Front panel with timer is optional

Located in Shenzhen, Guangdong province, Shenzhen Magtech Company Limited is specialized in sales and services of High and Medium Frequency Induction Heating Generators and related equipment. Our company is the sole export agent for Shenzhen Shuangping Power Supply Technologies Co., Ltd., which is the biggest manufacturer of Soild State Transistor Induction Heating Equipment in China.

We are the first in China to make and sell portable Transistor induction Heating Machines. We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base in Dongguan which has been awarded the Quality Certificate ISO9001: 2000.

We manufacture a broad range of product lines which include induction heating generators in range of power from 3KW to 300KW and output frequency range from 2kHz to 1.1MHz. Our induction generators have been trusted and used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.

We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications. We are dedicated to help customers for after-sales service in overseas market.

Our market includes America, Canada, Brazil, Australia, Belgium, the Netherland, Poland, Korea, Vietnam, India, Indonesia, Japan, Malaysia, Turkey, Hungary, Belarus, Lebanon Thailand, Iran, Saudi Arabia, Pakistan, Greece, Taiwan, We have professional distributors who offer quick service in some areas.

Our mission is to provide good quality products and professional technical as well as personalized service we care about each machine sold, each customer gets our response in no time, wherever they are in the world.
