High Power Professional Audio Sound Amplifier Power Amplifier Cq20

Name: High Power Professional Audio Sound Amplifier Power Amplifier Cq20
Brand: all-electronics-online.com
SKU: 835866365
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 298-350/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CQ20
OEM:	Yes
Power:	1350W
Transistors:	32PCS
Type:	Professional Amplifier
Usage:	KTV System
Used For:	Professional
Tube Type:	Transistor Amplifier
Function:	Post Amplifier
Sound Channel:	2.1
Output Number:	8
Voltage:	AC 220V
Element Number:	Push-Pull Amplifier
Conductive Mode:	AB

Product Description

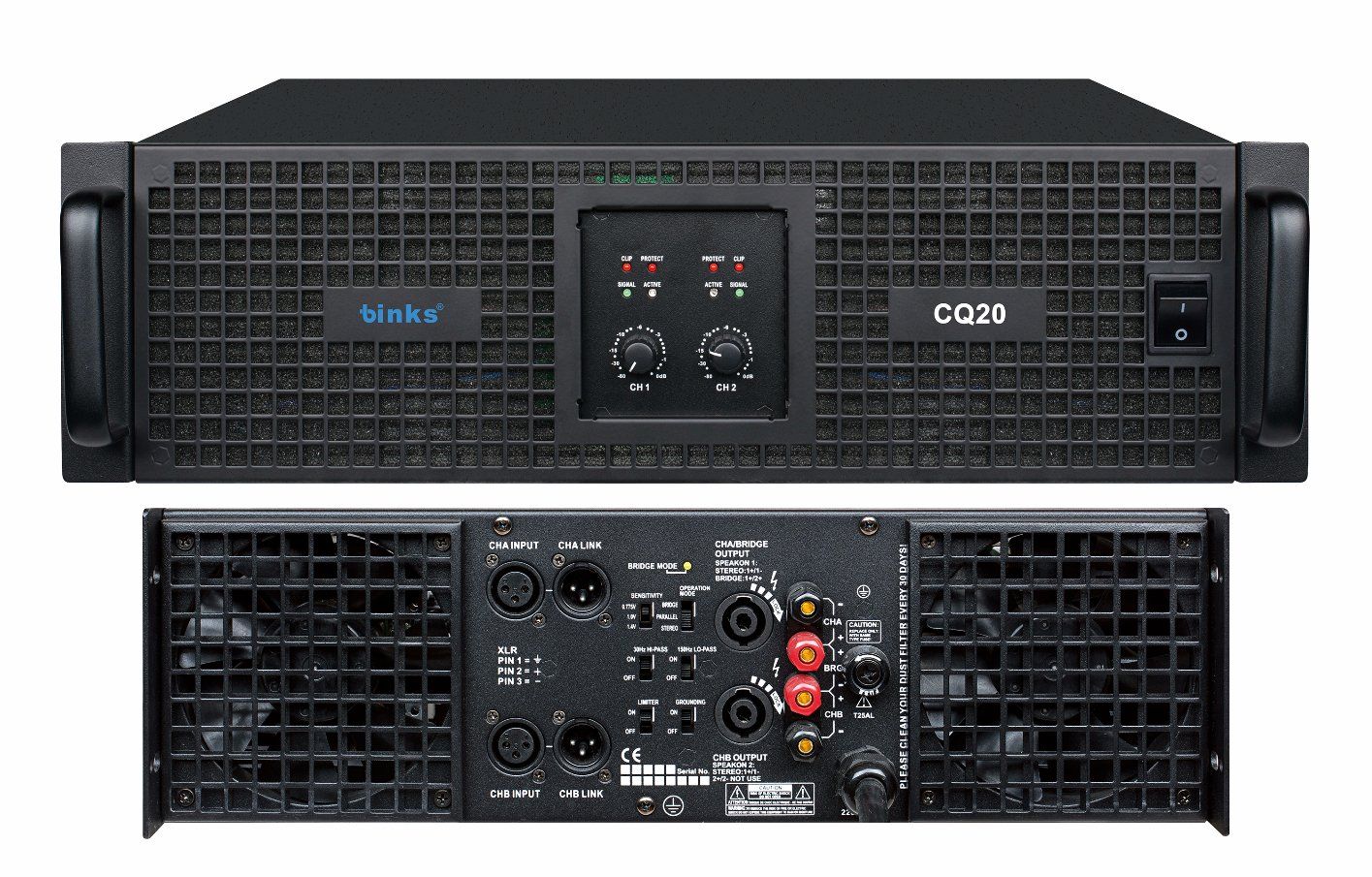

High power Professional audio sound amplifier power amplifier CQ20

Features
1.CQ Series provide extensive protection features such as Overheat short currents; DC protection; zero current; clip limiter; soft start
2. Copper transformer,big capacitor,level-2 or 3 power supply.
3. Flow-through ventilation from front to back
4. 200W-1300W power area
5.High power toroidal Copper transformer
6.Internal heat sinks with forced air cooling for rapid, heat dissipation
7. Dual fans for proper cooling to maintain performance and proper working levels
8. Can endure 8ohm, 4ohm and 2ohm loads

Technical Parameters:

Model	CQ12	CQ18	CQ20
Stereo power 8Ω	2×800W	2×1100W	2×1350W
Stereo power 4Ω	2×1310W	2×1850W	2×2025W
Stereo power 2Ω	2×1650W	2×2210W	2×2780W
Bridge power 8Ω	2450W	3610W	4050W
Bridge power 4Ω	3210W	4430W	5420W
Frequency Resoponse	5Hz-35KHz(+0/-0.5dB)@1W
THD+N	<0.03% 8Ω 1KHz 1/3Po
Sighal to Noise	>95dB
Damping coefficient	>400
Crosstalk	>80dB @ 8Ω 1KHz
Input impedance	20KΩ(Balance)/10KΩ(Unbalance)
Input sensitivity	0.775V/1.0V/1.4V
Protection	Output Relay-Zero Cument Switch,Irtellctual Cup Limiter.
Height	3U
G.W	39KG	40KG	41KG
Dimension(L×W×H)	655×590×205mm

Detailed Pictures

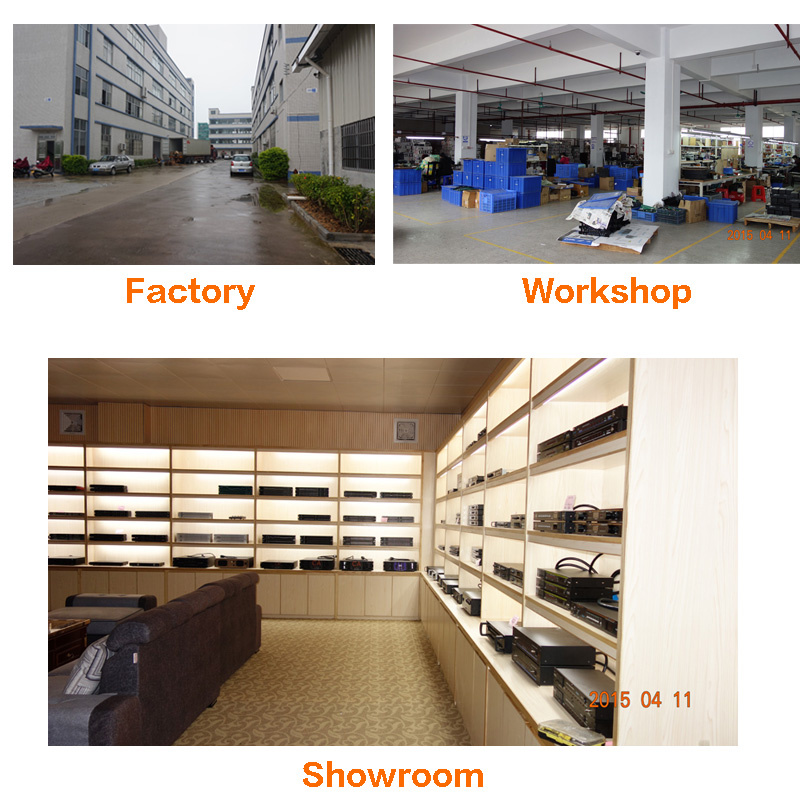

Located in Enping city with convenient traffic, Brun Audio Equipment Factory is a professional manufacturer of Power amplifier and audio processor such as Graphic Equalizer, Crossover, Power sequencer controller, Compressor Limiter and so on.

Founded in 2009, from the audio processor to power amplifier, from karaoke amplifier to 2 channel and 4 channel power amplifer, we integrate design, research, production and sales and adopt advanced technology.

Our Enterprise Propagation language is "Trust comes from Quality". We strictly control the quality all the time. Obey to provide the all the clients with good quality.

Our products widely use for Entertainment, meeting room, stage outdoors performance and so on. With 8 years of production experience, we are able to meet all the needs from our clients. We have won a high reputation both at home and abroad. We sincerely hope to cooperate with customers from all over the world to create a bright future together. If you are interested in any of our products, please contact us for more details.

OEM/ODM are available.
