| Prod Model: |
GS-LS3DA |
| Power Instability: |
±2%; |
| Working Method: |
Continuous |
| Max. Power Consumption: |
15kw |
| Rated Laser Output Power: |
4000W |
| Laser Wavelength: |
900-1070nm |
Product Description
Coaxial powder feeding system
Equipped with paraxial pneumatic type coaxial feeding device, installed below the laser head,move with the laser head, output powder overlaps with light beam focus, It is used for laser cladding processing of artifacts or work piece local repair, convenient, quick, efficient. It can feed powder with coaxial laser beam to complete the processing for the complex surface laser cladding.
Product
Specification
| Max.Outside Diamater | 70mm |
| Optical Diameter | 50.8mm |
| Machine Weight | 5kg(Does Not Contain The Nozzle) |
| Optical Spec | |
| Laser Beam Quality | 60mm.Mrad |
| Collimating Focal Length | 105mm |
| Focal Length | 300mm |
| Spot Size | Ф3mm | 22mm×3mm(Optional) |
| Optical Fiber Connector Socket | LLK-D |
| Storage Temperature | 5-65ºC |
| Operating Temperature | Max.50ºC |
| Temperature | Non-Condensing |
| Facula dimension | 15mm*2.85mm |

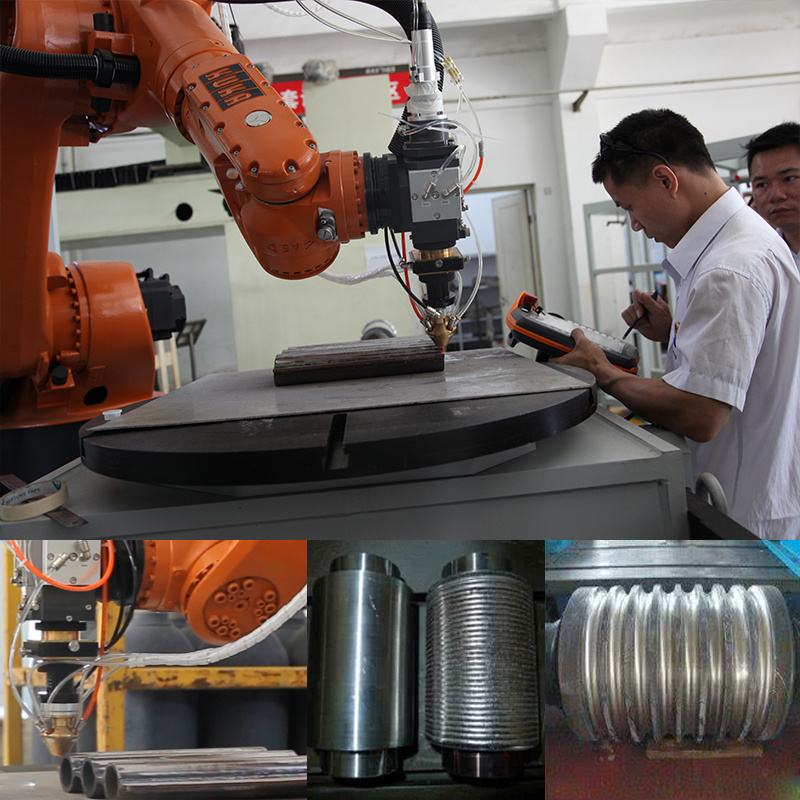

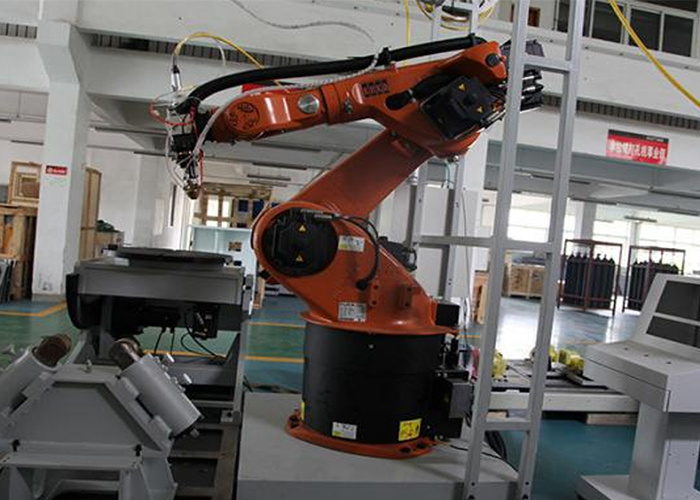

Robot horizontal displacement slider
1.To match usage with semiconductor fiber laser and robots, to make the machine tool adapt to a wider range work piece processing, it is specially equipped with a set of horizontal displacement sliding table to carry robot,like what the complete sets of equipment left view shows, it stands besides the work piece, move along with the length direction of work piece making the work piece assembly convenient, at the same time reducing the workload of the laser machining robot programming; When installing,adjust the slider parallel to the horizontal axis of the rotary tables.
2.In order to facilitate the laser processing of the artifacts, linear displacement of the slide stroke length must be longer than the work piece, the travel distance is 3000 mm. Movement speed 5 m/min; Positioning accuracy: ±0.1mm mm; Repeat positioning accuracy: ±0.05mm; Servo motor: 2.5 KW (KUKA).
3.Linear displacement sliding table adopts with KUKA servo motor driver, Taiwan linear guide way and ball screw pair drive, sliding table frame adopts welded steel structure,artificial aging treatment.
Centralized-control system
1.Through our secondary developed KUKA operation control system, the optical semiconductor laser robot flexible manufacturing system units (optical semiconductor laser, robot, chiller, sliding table base and send powder, etc.) are centralized control automation, making the user operate more conveniently and reliably.

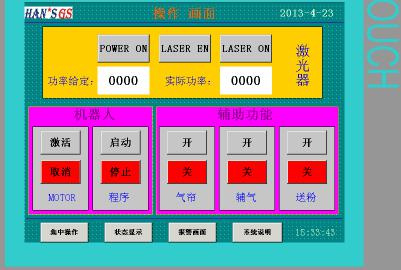

2.Control system adopts Siemens PLC controller and has security protection function, when there is emergency stop or collision,it can directly operate teaching device to start the laser and the robot each axis, no need manual release, models: S7-1200, the system is equipped with 10 inch touch screen operation panel,to display running status and the fault type of equipment.
3.Touch screen console, have alarm information display function, as well as part of the robot and laser status information, etc.;And set up with the workstation three color tower that indicates working state, and a failure sound and light alarm;Have a pause and stop button at the same time, prominently placed in the control panel;fault alarm for the protective gas, the cooling unit, the laser, and would stop working when it is beyond the requirements process.

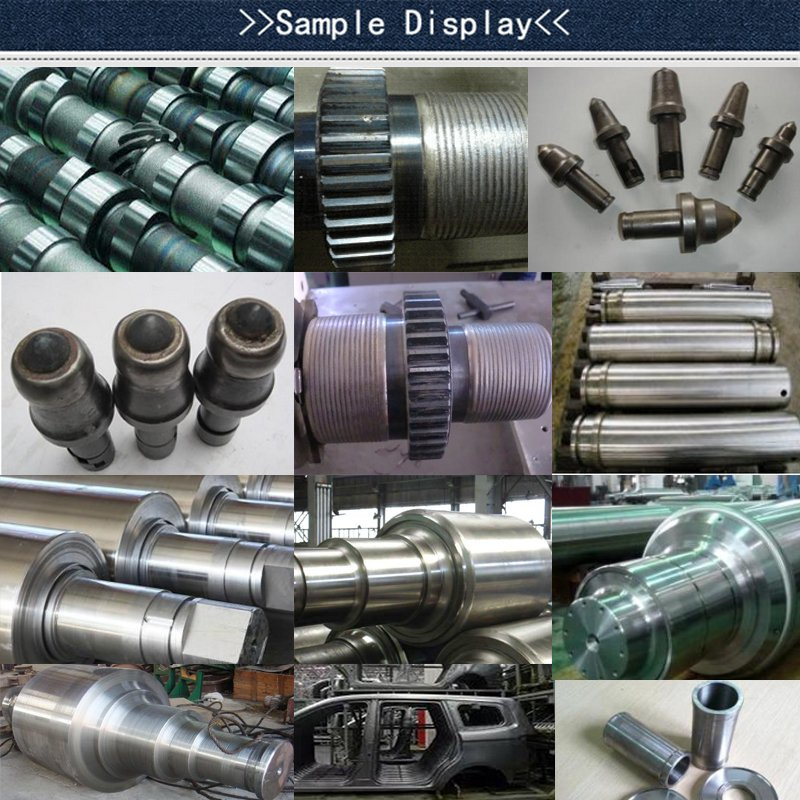

Sample
Our company
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
