| Certifications: |
Ce, UL, RoHS |
| Application: |
High-Current Device, Medical Equirment etc |
| Warranty: |
1years |
| Cycle Life: |
>2000 Times |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Overview
Place of Origin:Guangdong, China (Mainland) Brand Name:REVESI Composed Type:customized Type:Li-Ion Components:PVC Combination:3S7P+PCM
Size:customized size Voltage:12V Weight:1.5kg
Nominal Capacity:20Ah Application:Solar system Maintenance Type:Free
Usage:storage Standard discharge current:0.2C
Battery:18650 Li-ion 2200mAh Part:BMS Chemistry:LiFePO4
Certifications: RoHS Cycle Life:>2000 cycles Warranty:12 Months
Packaging & Delivery
Packaging Details:
Original package or according to customer requirement.
Delivery Detail:Shipped in 7 days after payment

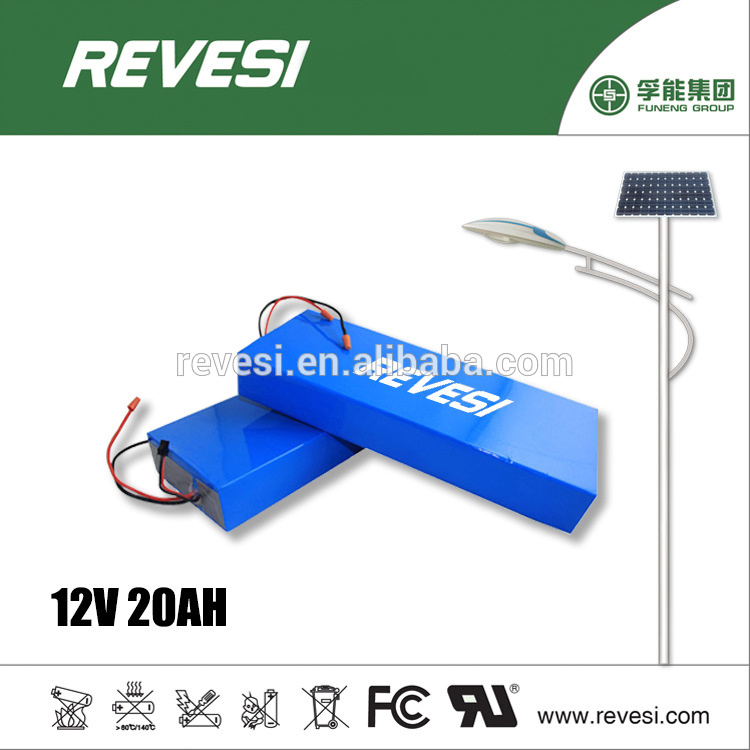

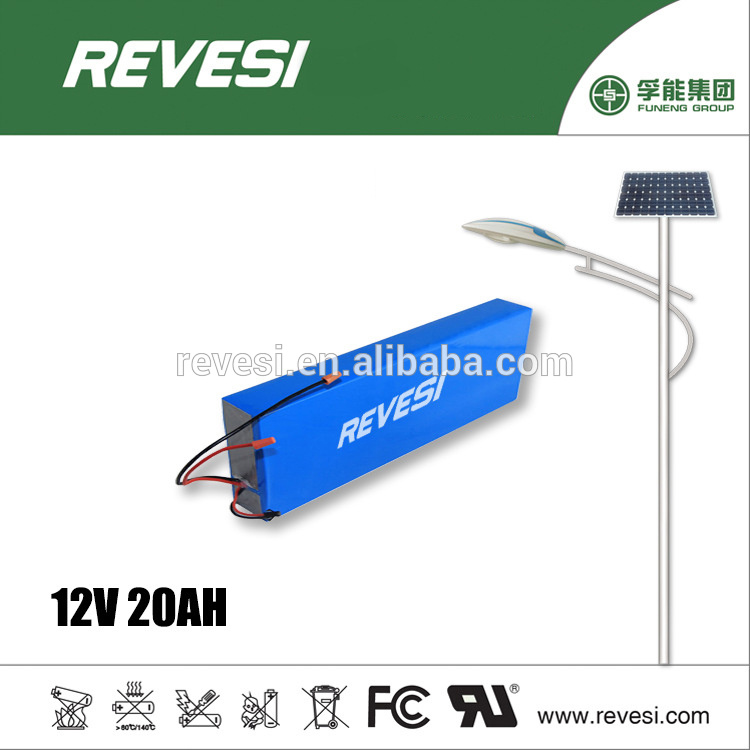

2000 deep cycle life 12v 20ah lifepo4 battery pack
| 1 | Battery cell model | 26650 |
| 2 | Combination | 3S7P+PCM |
| 3 | Nominal voltage | 11.1V |
| 4 | Nominal capacity | 20Ah |
| 5 | Standard discharge current | 0.2C |
| 6 | Max discharge current | 10C |
| 7 | Standard charge current | 0.2C |
| 8 | Fast charge current | 0.5C |
| 9 | Inner resistance | 82mohm |
| 10 | Over discharge cut off voltage/series | 2.4 ± 0.06V |
| 11 | Over charge protection voltage/series | 4.25± 0.03V |
| 12 | Discharge working temperature | -20-60°C |
| 13 | Charge working temperature | 0-45°C |
| 14 | Recommended storage temperature | 23 ± 5°C |
| 15 | Flow value | 100A |
| 16 | Weight | about 1.5kg |
| 17 | Size | L*W*H=130*56*69.5mm/customized |
Advantages
1.Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 500 times deep cycle 80% capacity left,4 times of lead acid battery
5. No memory effect,highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20~70°C
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH/Ni-Cd battery, 1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly
Safety Precaution
1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway.
LiFePO4 Battery Advantage:
1.Long cycle life:2000+cycles
2.High voltage,low self-discharge
3.Environment friendly
4.No memory effect
The main application
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment

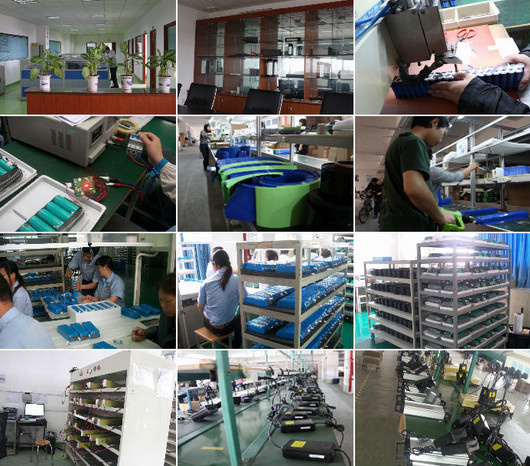

Testing Process
Our comprehensive testing procedure guarantees the quality that we promise to our customers.
We ensure that we only ship out goods which we have tested and approved with the following testing methods used:
| -Impact Test | -Heating Test |
| -Vibration Test | -Over charge Test |
| -Drop Test | -Over discharge Tes |
| -Pulling Test | -Altitude Simulation Test |
| -Puncture Test | -Short Circuit Test |
FAQ
1. SHIPPING: We will ship by Fedex,UPS,TNT,DHL door to door.Shipping time is 3-5 working days.
2.Discount:if you order above 5pcs per order please contact with us we can give you some discount.
3.Guarantee;1 year warranty,if there is any quality problem in one month we can return the money after you provide the proof.
4.All the battery we use high quality cell and BMS,we 100% test every battery before shipping.Rest assured purchased!
Any question will be highly appreciated!

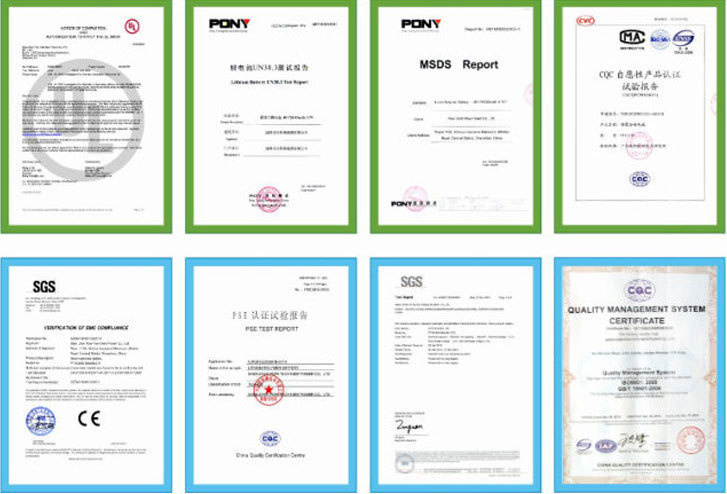

Certifications
Our company supplies different kinds of batteries. We stick to the principle of "quality first, service first, continuous improvement and innovation to satisfy the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality and reasonable price.
