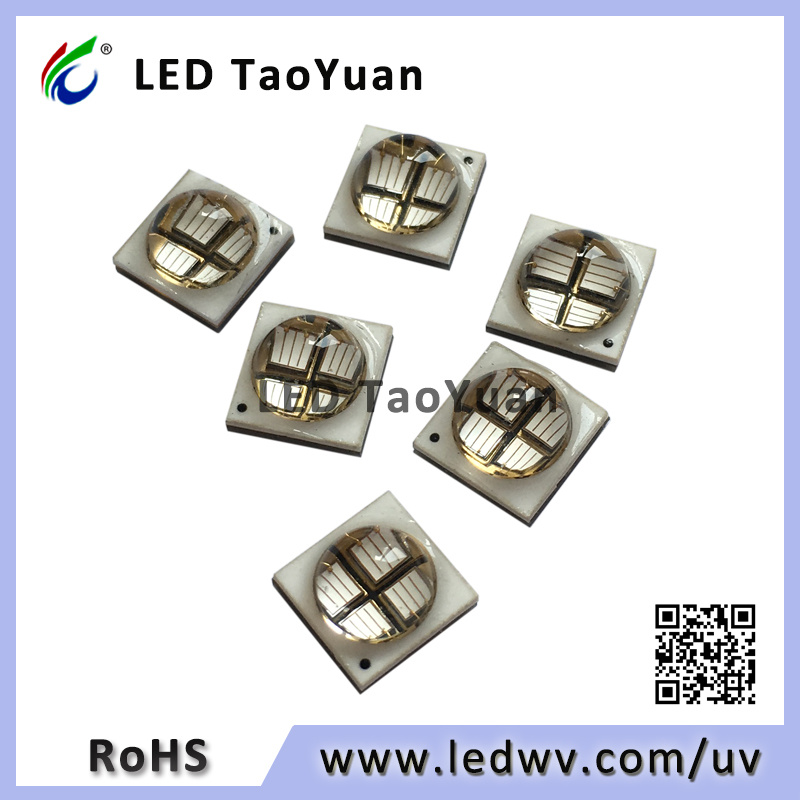

High Power UV 395nm 10W 4chips LED Diode

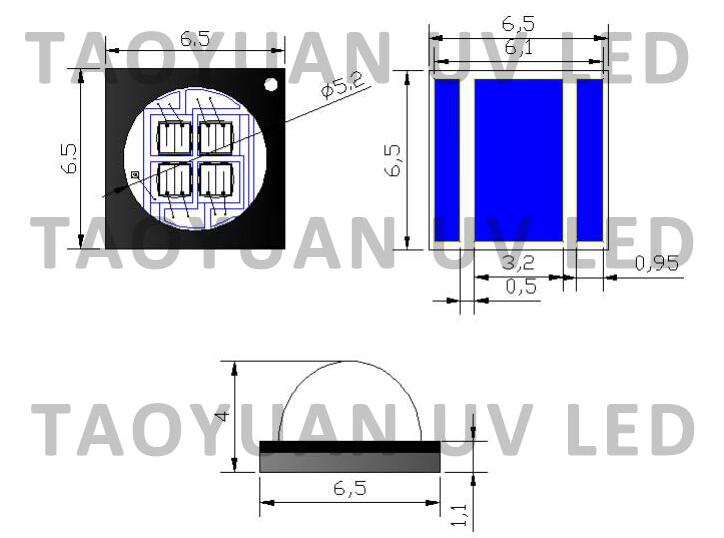

Prod Model:	TY-SMD-6565-395nm-10W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wavelength (Nm):	395nm

Product Description

1.Top UV LED 390-395nm 10W 4Chip Electro-Optical characteristics at 1A  (Ta=25ºC, RH=30%)

Parameter	Rating
	TY-SMD-6565-395nm-10W
DC Forward Current(mA)	1400mA
VF	6-7V
Calculated Minimum Radiometric Power 700mA	6300-7000mW
LED Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~100°C
Viewing Angle	60°
ESD Sensitivity	2,000 V HBM(JESD-22A-114-B)
Thermal resistance(RθJ-s[5])	3.3°C/W

High Power UV LED 395nm 10W Features:
Aiuminum and quartz lens package.
Extremly narrow viewing angle.
Suitable for all SMT assembly and solder process.

High Power UV LED 395nm 10W Application:
UV curing refers to a special way in which coatings, inks and adhesives are cured or dried using "energy" from UV light sources, rather than conventional heat. In effect, the ultraviolet light spectrum in a UV lamp interacts with specially formulated chemistries to cure materials--typically more quickly, using less energy and thereby at lower cost than by other methods.

 The advantages of UV have been well-documented, particularly when used with manufactured products that include inks, adhesives and coatings on substrates that are sensitive to heat. In addition, UV is considered environmentally friendly since most of the solvents in inks, paints, adhesives and coatings can be eliminated, thanks to the special capabilities of UV curing.

 The UV LED technology is further revolutionizing the UV curing space. Since traditional UV light sources such as tubes and arc lamps contain Mercury, a notorious pollutant, the availability of mercury free UV LEDs is bringing further environmental soundness to the UV curing industry.

 TaoYuan LEDs provides a wide range UV LEDs in the UVA range (360nm - 420nm). Please visit our Products page to learn more about our UV products.
