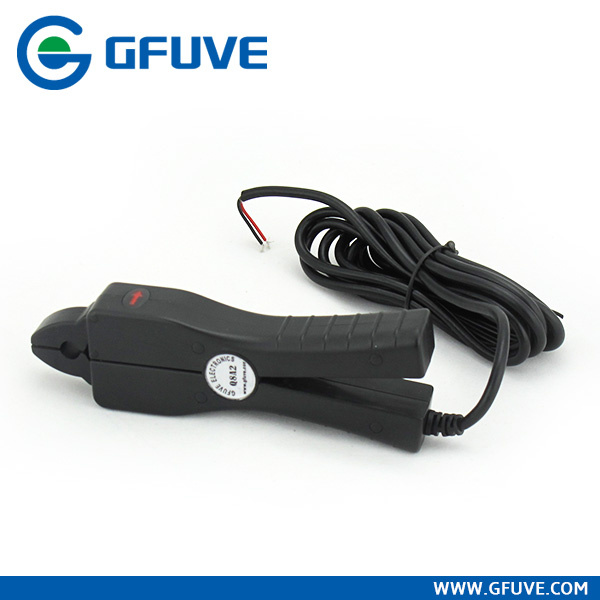

High Precision 10A/2.5mA Clamp AC Current Sensor

Name: High Precision 10A/2.5mA Clamp AC Current Sensor
Brand: all-electronics-online.com
SKU: 688869442
Availability: InStock
Rating: 4.3 (85 reviews)

Price:	US $ 18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8A-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Nominal Input:	10A
Max. Cont. Input Current:	12A
Accuracy:	0.1 %, 0.2%
Output Signal:	10mA AC at Nominal Input Current
Frequency Range:	40 Hz....2000 Hz
Dielectric Strength:	3kv 50Hz/60Hz at 1 Minute
Temperature Range:	-20 °c...+55 °c
Output:	2.5m Cable with D01 Connector
Types:	AC Current Sensor
Material:	Permalloy
Application:	Energy Instruments

Product Description

Q8A-2 High Precision 10A/2.5mA clamp ac Current Sensor
The model Q8A2 permalloy core 10A/2.5mA clamp ac Current Sensor with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 10A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output (2.5m)

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy	0.1 %,0.2%
Primary current	0 - 10A AC
Secondary current	0 - 10mA AC (customized)
Max. Cont. Input current	12 A
Over voltage category	CAT III 600V
Output signal	10mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	45x158x25
Weight (g)	250
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
