High Precision 200A Class 0.1 AC Mini Split Core AC Current Clamp on Cts

Name: High Precision 200A Class 0.1 AC Mini Split Core AC Current Clamp on Cts
Brand: all-electronics-online.com
SKU: 718245272
Availability: InStock
Rating: 4.8 (78 reviews)

Price:	US $ 100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ20
Ratio:	1000:1
Color:	Red, Yellow, Blue, Green
Cable:	2.5m
Class:	0.1
Types:	200A Clamp on Cts
Jaw:	20mm
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight:	420g
Using:	Watt Hour Meter Tester
Application:	Power Intruments

Product Description

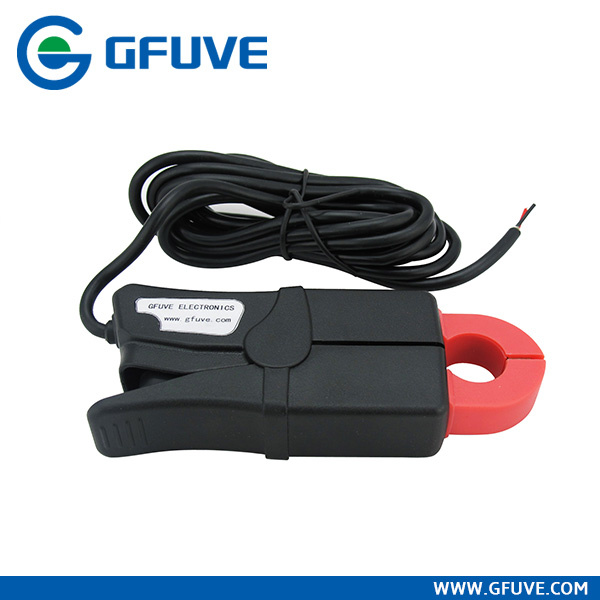

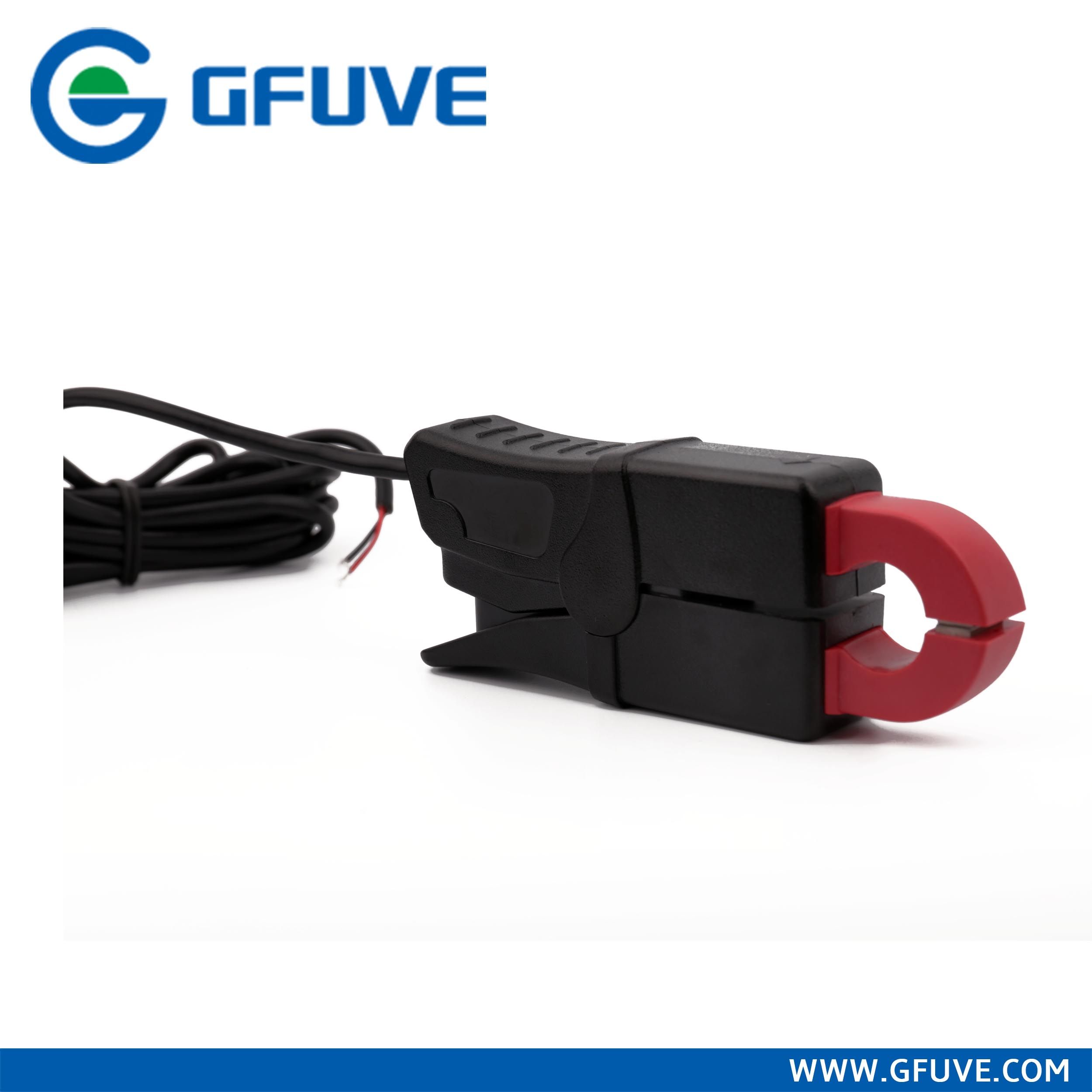

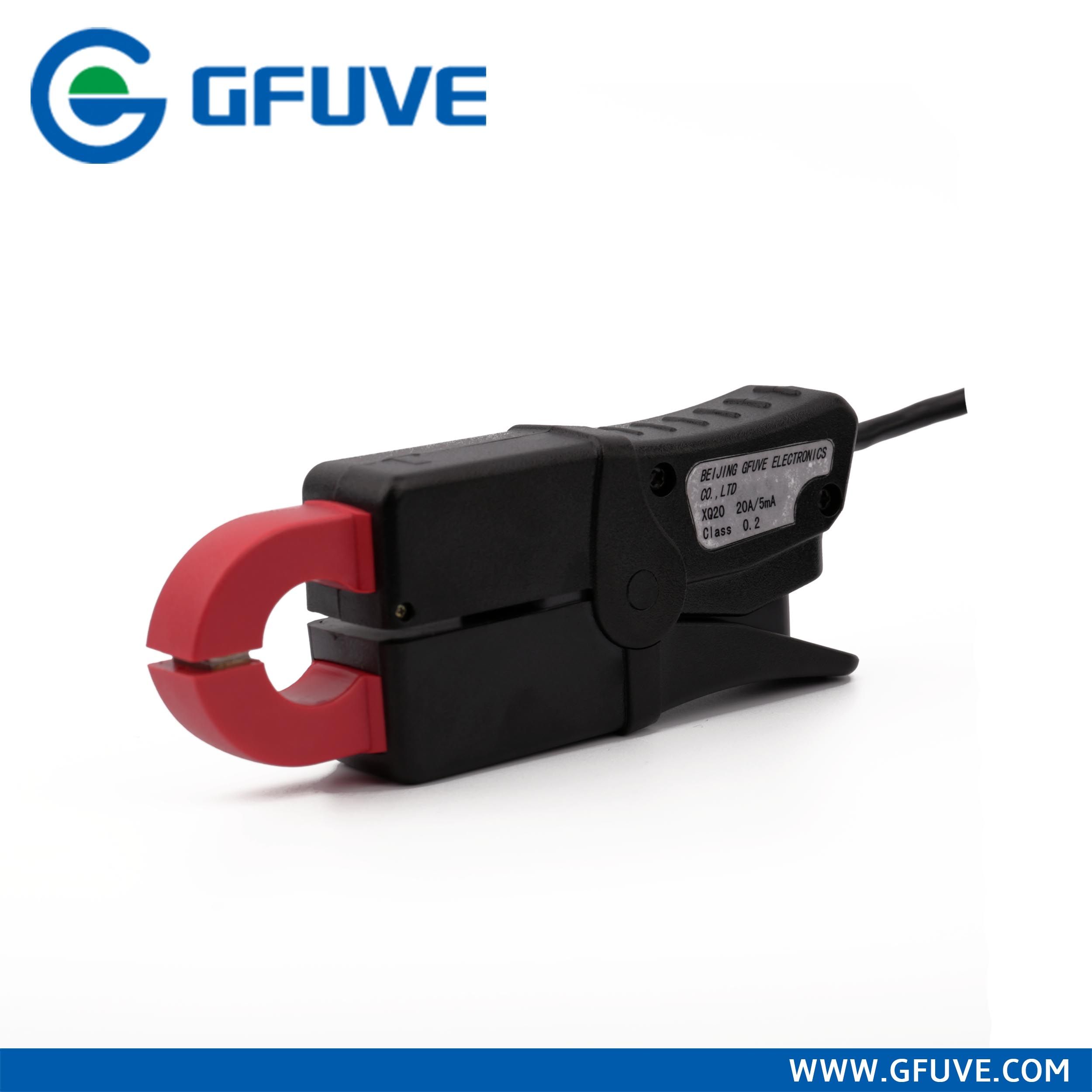

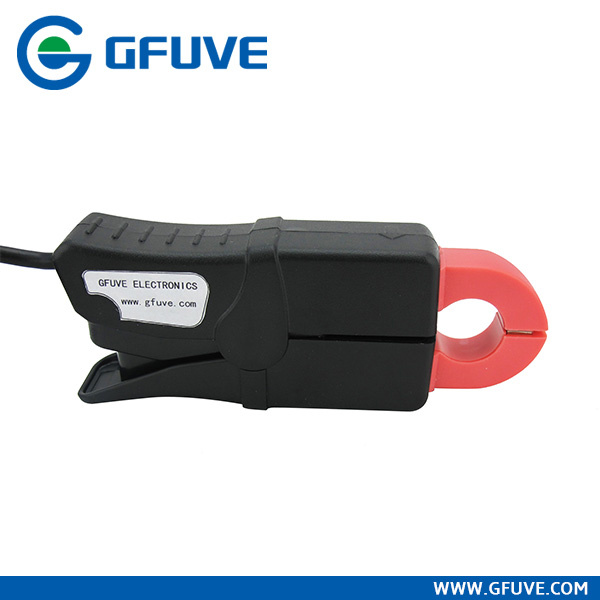

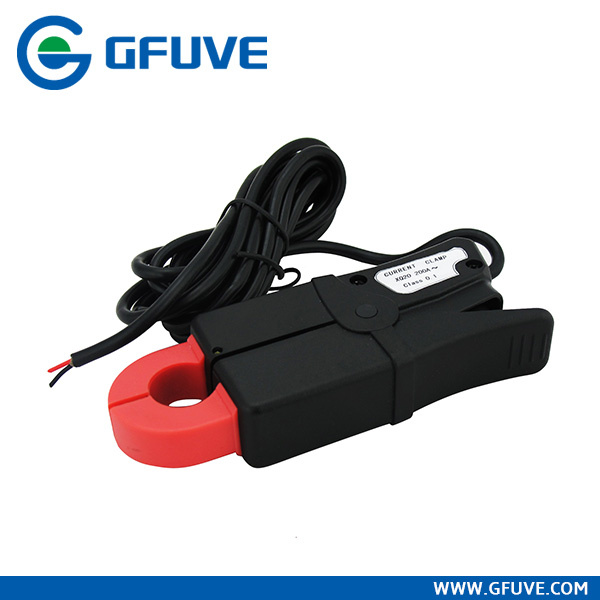

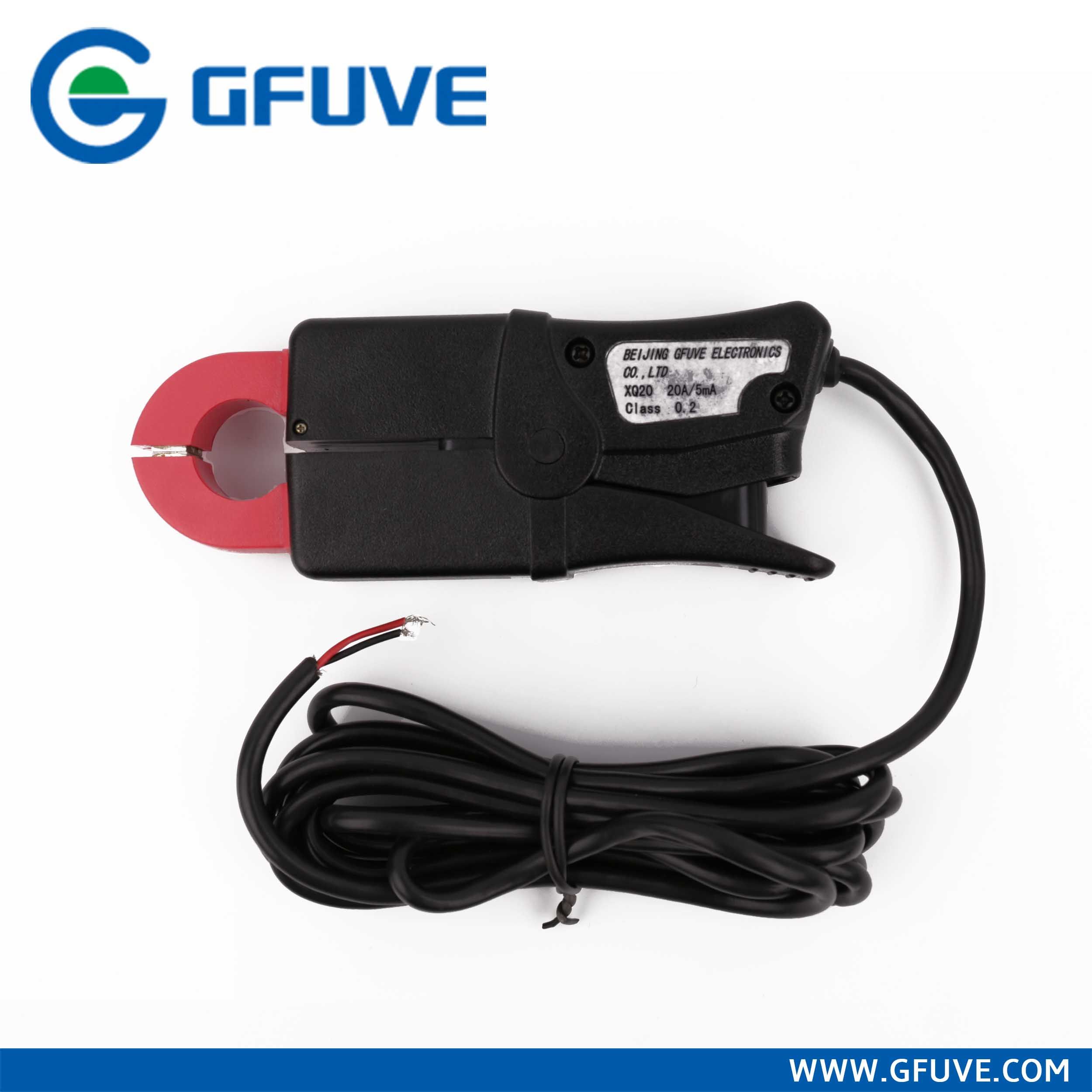

XQ20 HIGH PRECISION 200A CLASS 0.1 AC MINI SPLIT CORE AC CURRENT CLAMP ON CTS

The model XQ20 openable jaw AC current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
The XQ20 Series AC current clamp on cts are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The XQ20 Series current clamp on cts is an excellent probe to be used in power and low level current measurement applications.

APPLICATIONS

Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator

FEATURES

Suitable for 0A-200A cable online measurement.
Holding wire diameter: φ20mm
Dimension: 52.5mm×137.5mm×28mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 200A AC
Secondary current	0 - 200mA AC (customized)
Max. Cont. Input current	240A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 200mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	From 0 to 2V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	52.5 x 137.5 x 28
Weight (g)	400
Holding wire diameter (mm)	φ20
Max. jaw opening (mm)	20
Jaw color	Red, yellow, blue, green, black
Material	PC+ABS+Polycarbonate, UL94 V0
