High Precision Aluminium Parallel Mini Load Cell 0.3kg to 6kg
| Price: |
US $ 8-15/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
QL-52B load cell |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
0.3kg to 6kg |
| Accuracy: |
0.02%Fs |
| Signal Output: |
1.0mv/V or 2.0mv/V |
| Recommended Excitation: |
9~12VDC |
| Recommended Platform Size: |
120X120mm |
| Structure: |
Parallel Beam Type |
| Application: |
Electronic Weighing Device |
| Pattern: |
Micro Load Cell |
| Out-Wire: |
4 Wires |
| Material: |
Aluminum Alloy |
Product Description
Product Introduction:
QL-52B miniature sensor is available in the capacities from 0.3kg to 6kg.
Aluminum-alloy construction with parallel beam type, silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance and other high accuracy electronic weighing devices.
Features:
Capacity :0.3kg to 6kg
Defend grade: IP65
High accuracy, parallelbeam type, reliable performance.
Integral structure and easy installation.
Recommended platform size:120x120mm

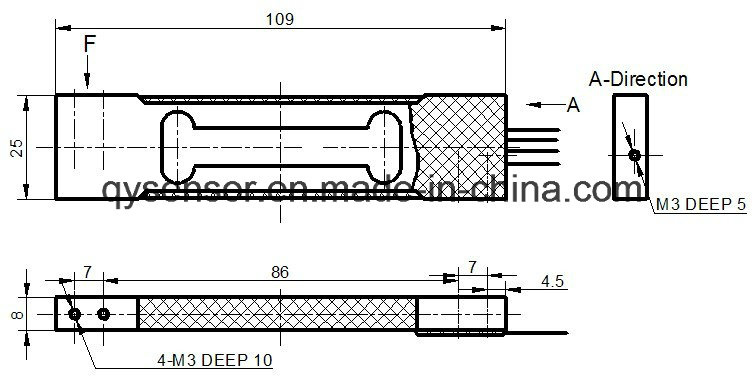

Electrical connection and Dimensions: (dimension unit: mm)
Technical Specifications:
| Specifications: |
| capacity | kg | 0.3~6 |
| safe overload | %FS | 120 |
| ultimate overload | %FS | 150 |
| rated output | mV/V | 1.0 ± 0.1 | 2.0 ± 0.2 |
| excitation voltage | Vdc | 9 ~ 12 |
| combined error | %FS | ± 0.03 | 0.02 |
| zero unbalance | %FS | ± 2 |
| non-linearity | %FS | ± 0.03 | ± 0.02 |
| hysteresis | %FS | ± 0.03 | ± 0.02 |
| repeatability | %FS | ± 0.01 |
| creep | %FS/30min | ± 0.02 |
| input resistance | Ω | 405 ± 6 |
| output resistance | Ω | 350 ± 5 |
| insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
| operating temperature range | ºC | -20 ~ +55 |
| compensated temperature range | ºC | -10 ~ +40 |
| temperature coefficient of SPAN | %FS/10ºC | ± 0.024 | ± 0.017 |
| temperature coefficient of ZERO | %FS/10ºC | ± 0.03 | ± 0.02 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-color one line.
calbe length:300mm.
The cable length could be chose by customer's application.
Packaging & Shipping:
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services:
1. OEM/ODM Services:
Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.
FAQ:
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
