Chongqing HLA Mechanical Equipment Co., Ltd. >> High Precision Dew Point & Temperature Transmitter

High Precision Dew Point & Temperature Transmitter

High Precision Dew Point & Temperature Transmitter
Price: US $ 3000-5000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: EE35
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Production: E+E
Accuracy: 2 °c
Quality Standard: CE
Testing Type: Online

Product Description

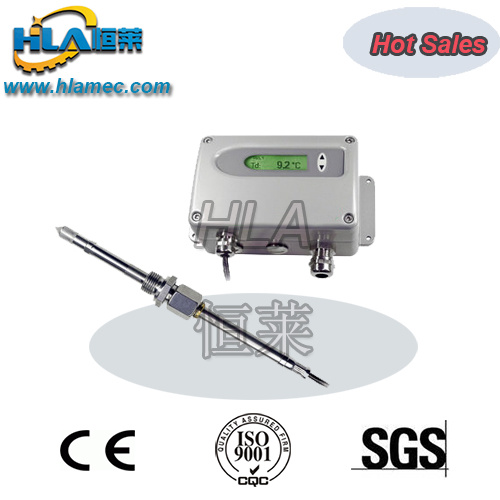

The EE35 dew point and temperature transmitter is ideal for accurate measurement of low dew point teperature in demanding applications such as drying processes or compressed air monitoring.
Integrated Auto-Calibration:
Best reliability and long term stability are ensured by the auto-calibration procedure in combination with the well proven E+E humidity sensors. The auto-calibration adjusts periodically the EE35 dew point transmitter without disturbing the industrilal process, and leads to an accuracy of ± 2 °C (±3.6 °F) Td down to -60 °C (-76 °F) Td.
Two freely configurable and scalable analogue outputs are available for the measurement values dew point (Td), frost point (Tf) and temperature (T).
An optional relay output provides an alarm signal when the dew point threshold set with a potentiometer is exceeded. The optional display and the associated MIN/MAX values allow for a quick status check in the field.
With the optional ball valve the sensing probe can be mounted and dismounted without process interruption.

Technical Data
Power supply:8-35V DC, 12-30AC. ( Option: Built-in 100-240AV, 50/60HZ)
Output0-5V, 0-10V, 4-20mA, 0-20mA


Temperature range-40~ 180°C
Accuracy± 0.013~± 0.015 aw, ± 0.005°C
Sensor Pressure Range0.01~20bar

Chongqing HLA Mechanical Equipment Co., Ltd is a professional machinery manufacturer from China. Since the foundation of HLA, we have specialized in providing innovative oil purification and air drying solutions & services for demanding applications on a global scale. The scope of our products and services covers a wide range, including oil purifier, air compressor and relative testing equipment. HLA product lines ensure efficient performance of equipments, reduce ecological disposal problems and help our customers save money.

Depending on experienced engineers, completely technical supports, advanced design, strict quality inspection line, fast and outstanding after-services. We have been in devoting our efforts to design and build the most effective, durable, and user-friendly equipments on the market today.

HLA are widely applied in projects of power substation, steel structure, metallurgy, automotive, railway, marine, mine, aviation, medicine, chemicals, petroleum etc. Our policies of performance and protection cut maintenance costs, extend equipment life, keep equipment working at peak efficiency, prevent down time and meet today's ecological requirements.
