High Precision Flexible Rogowski Coil AC Current Clamp

Name: High Precision Flexible Rogowski Coil AC Current Clamp
Brand: all-electronics-online.com
SKU: 703987222
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	US $ 199/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FQ-RCT02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy:	1%
Measurement Range:	0~3000A
Phase Error:	<60' @25°c (45-65Hz)
Input/Output:	3000A/300mv, 1000A/1000mv
Types:	Flexible Current Clamp
Frequency:	25Hz~20kHz
Working Temperature:	-20~+70deg
Color:	Red and Black
Output Cable:	3m Cable
Output Signal:	0-300mv

Product Description

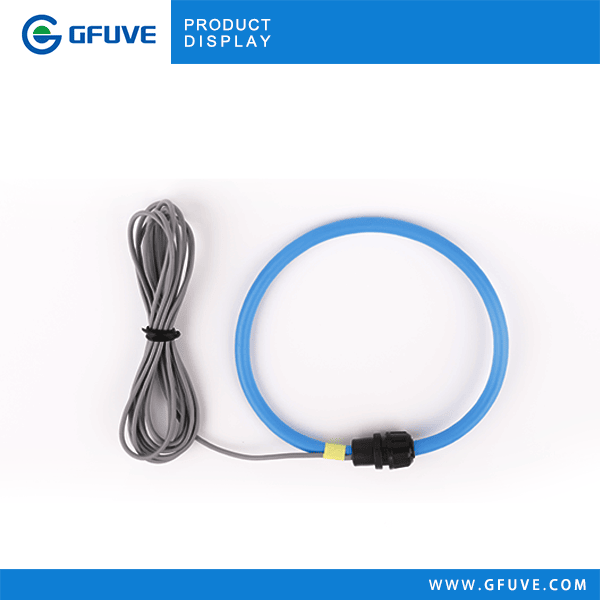

FQ-RCT02 High precision flexible rogowski coil AC current sensor clamp

The FQ-RCT02 Flexible AC current sensor clamp are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

APPLICATIONS
Power quality monitoring
Power meters
Smart logger
Energy sub-meters
Distributed measurement systems

FEATURES
Flexible and light weights
Easy & quick installation in tight spaces
No danger from open-circuited secondary
No core saturation or damage if overloaded
Excellent linearity
Multi-size are available

GENERAL DATA
Ambient operating temperature: -20~+70°C
Ambient storage temperature: -25~+75°C
Standards safety:IEC 61010-1:2001, 600 V CAT III

PARAMETERS

Electrical parameters
Model	FQ-RCT02-120	FQ-RCT02-190	FQ-RCT02-305	FQ-RCTA02-120	FQ-RCTA02-190	FQ-RCTA02-305
Current range		10A~30kA			10A~6000A
Frequency		25Hz~20kHz			45Hz~600Hz
Output voltage	Rated current	1000A	2000A	3000A	250A, 500A, 800A, 1000A	1000A, 1500A, 2000A, 2500A	1000A, 2000A, 2500A, 3000A
	50Hz	100mV AC	200mV AC	300mV AC
	50Hz	100mV AC	200mV AC	300mV AC	333mV 1mV/A@1000-3000A(0.5mV/A@4000-6000A)
Max output		/			3.0V AC max
Accuracy		<1% @25°C (45-65Hz)			<1% @25°C (45-65Hz)
Phase error		<60' @25°C (45-65Hz)			<60' @25°C (45-65Hz)
Output sensitivity		±2% Max (No Calibration) ±0.5% @25°C (With Calibration)			1%
Linearity error		±0.2% (10%-100%I1n)			±0.2%
Position sensitivity		±2%			±2%
External influence		±2% Max			±1.5% Max
Power supply		/			10-30VDC,30mA Max.
