High Precision Fuel Sensor for Fleet Management

High Precision Fuel Sensor for Fleet Management
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: JT606X
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Input: 4 ~ 70V
Signal Output: RS232, RS485, Current, Voltage, Resistance, Can
Medium: Disel, Petrol, etc.
Output: Digital Sensor
Usage: Liquid Level Sensor
Theory: Capacitive Principle
Length: 0.1 ~ 3m
Type: Capacitive

Product Description

Features:

1. Resolution: Less than 1mm / acquisition accuracy: Less than 0.5%

2. Can be cut off in the field as per the tank' height

3. Wide power input: 4-70V

4. Patented technology: Simple installation flange

5. Signal output: (RS485, RS232, voltage, Resistance, Current)

6. Support on-site calibration and remote parameter configuration

7. Can be used to replace the original car fuel level sensor

SPECIFICATION:
Output:
Current: 4 - 20mA                                                              Voltage: 0 - 5V
Emulated resistive:     10 - 500Ω
Baud rate:               2400, 4800, 9600, 57600, 115200

Resolution:   0.5mm                                                          Accuracy: 0.5%

Material:
Housing: Industrial aluminum        Electrode pole: Aluminum alloy

Medium Types:
Diesel; biodiesel; Petrol, not suitable for conducting medium

Environment rating:
Temperature operating:   -40° C - +85° C
Temperature storage:           -40° C - +105° C

Sealing:   IP67                                                                  Weight: 40G (500mm)

APPLICATION:

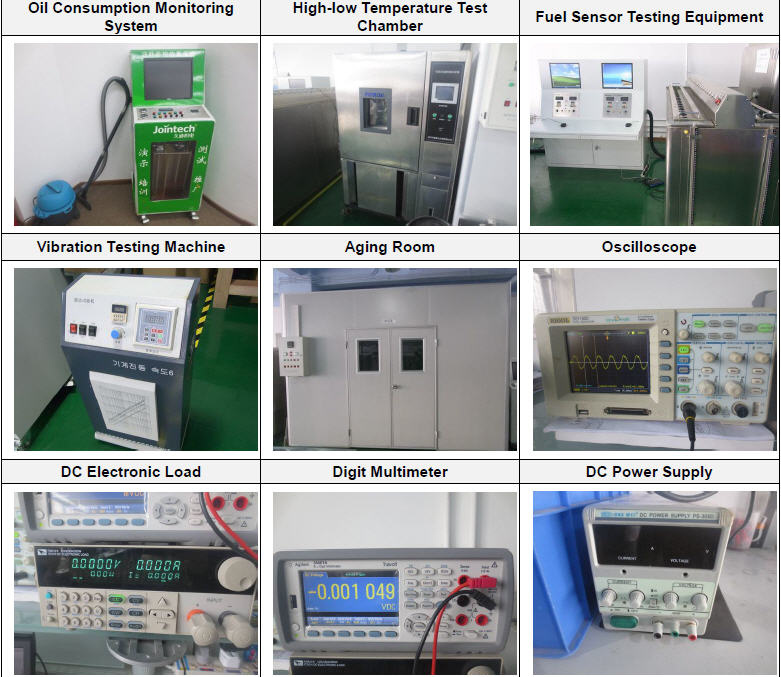

TESTING:
Every single unit has been carefully tested before delivery:

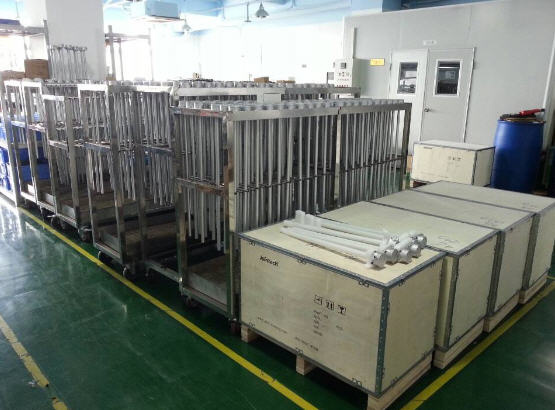

Packing & Delivery:
The goods will be packed in carton or plywood box:


COMPANY INTRODUCTION:
- JOINTECH is an ISO9001:2008 certified company, with more than 10 years focus on providing hardware/software/solutions on fleet & asset management.


 Technical support/after sales service:
1). We have engineers online to provide technical support on time.
2). Free training is available in our company.
3). Technical assistance is also available for big project
Skilled professionals dedicated to flexible customised solutions

For more than 10 years, the JOINT Industrial development team has been creating and implementing highly effective and innovative solutions to meet the varied needs of their customers. They have a proven reputation as the experts in cost-effectively deploying solutions for any equipment monitoring and management requirement

The JOINT industrial development team is also very experienced in streamlining ongoing operations to improve the performance of your monitoring and management solution in order to give you the greatest continuing return on your investment. The JOINT development team are proud of this reputation which not only boasts absolute flexibility, but also highlights their ability to come up with the perfect solution for all their customers irrespective of how unique or obscure the customer need.

When you choose a JOINT solution, their developers will work closely with you to design a solution to suit both your needs and your budget. They will investigate alternatives, clarify your requirements, project manage your order, train your staff and commission your system, all with the backup of an interactive database that keeps you informed and properly supported.

At your discretion, JOINT can fully train your staff and hand-over your system to enable ongoing in-house operations and management. This includes allowing full administrative rights over the software and the ability to modify the configuration / setup of any component of your system to best suit your company needs.

Their engineering team will continue to work with you to analyse your implementation, look for ways to improve the operations and useability of their implemented systems, and utilise their experience to help you find ways of more effectively integrating your new solution.

JOINT have a large global network of distributors and OEM product partners who have deployed to many companies across most industries. Contact JOINT today to discuss your needs and how they may be able to help. Who knows, they may have already deployed a solution to match your specific requirement.
