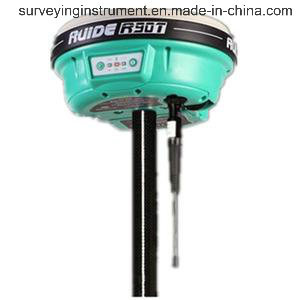

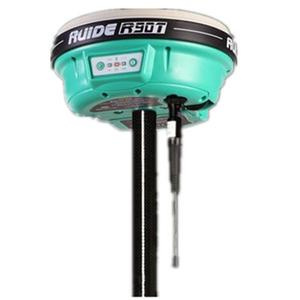

High-Precision Ruide R90t Gnss Rtk GPS
| Price: |
US $ 3300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
Ruide R90t |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
GPS Receiver |
| Use: |
Automotive&Hand Held |
| Port Number: |
220 Channel |
| Model: |
R09t |
| Brand: |
Ruide |
Product Description
Product Details
Basic Info.
Model NO.:Ruide R90T
Place of Origin:China (Mainland)
Brand Name:Ruide
Model Number:Ruide R90t
Channels:220
(Rtk)Real Time Kinematics Horizontal:8 mm + 1 Ppm RMS
(Rtk)Real Time Kinematics Vertical:15mm + 1 Ppm RMS
Initialization Time:Typically <8 Seconds
Initialization Reliability:Typically >99 9%
Radio Frequency:430-450 MHz/450-470 MHz
Waterproof:IP67
Export Markets:Global
Product Description
Product Description
high precision 220 channel ruide r90T gps geodesico with trimble bd970
| Model | R90 | R90-T | R90-X |
| No. of Channel |
| 120 | 220 |
| Configuration |
| Dual frequency for GPS, GLONASS, BEIDOU & SBAS. |
| Single Tracked | GPS | L1, L2, L2C | L1 C/A, L2E, L2C, L5 (reserved) |
| GLONASS | L1, L2 | L1C/A,L1P,L2C/A(GLONASS M only),L2P |
| BEIDOU | E1 | B1, B2 |
| Position Accuracy |
|
| Code Differential | Horizontal | 25cm+1ppm RMS |
| Vertical | 50cm+1ppm RMS |
| SBAS | Typically <5m 3DRMS |
| Realtime Kinematic | Horizontal | 10.0mm+1.0ppmRMS | 8.0mm+1.0ppm RMS |
| Vertical | 20.0mm+1ppm RMS | 15.0mm+1.0ppm RMS |
| Time to Work | <10s | <8s |
| Static & Fast Static | Horizontal | 5.0mm+0.5ppm RMS | 3.0mm+0.5ppm RMS |
| Vertical | 10.0m+0.5ppm RMS | 5.0m+0.5ppm RMS |
| Long Observation | Horizontal | 5.0mm+0.5ppm RMS | 3.0mm+0.1ppm RMS |
| Vertical | 10.0m+0.5ppm RMS | 3.5m+0.4ppm RMS |
| Communication |
| UHF RX/TX antenna port |
|
| GPRS/GSM signal antenna port |
|
| 9-pin serial port (baud rate up to 115,200kbps) |
|
| 5-pin LEMO interface |
|
| Multicable with USB interface for connecting with PC |
|
| Bluetooth 2.4GHz class II, maximum range 50m |
| Internal Radio Modem | Frequency | 450-470MHz | 410-430MHz or 430-450MHz or 450-470MHz |
|
| RX | RX & TX |
| Output Power | 0.5W |
| GSM/GPRS Modem | Protocol | NTRIP |
| Bluetooth |
| 2.4GHz Bluetooth, Stollmann's BlueMod+B20 functioned |
| Power | Internal Battery | 7.4V, 2500mAh Li-on battery, 12-15V DC power input |
| Battery Running Tim | 6-10 hours on average |
| Weight |
| 1.2kg with internal battery & internal radio |
| Dimension |
| 184mm x 18mm x 96mm |
| Environmental | Operation Temp. | -40°C to 75°C (-49°F to 167°F) |
| Storage Temp. | -55°C to 85°C (-67°F to 185°F) |
| Shock/Drop | 2m |
| Waterproofing |
| IP67 |
| Data Output | Internal | 64MB | 4GB |
|
| Update rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz & 50Hz outputs |
|
| Reference outputs: CMR, CMR+, RTCM 2.1, RTCM 2.2, RTCM 2.3, RTCM 3.0, RTCM 3.1 |
| Accessories | Standard | 2 internal batteries with charger |
|
| 450MHz all-direction antenna |
|
| GPRS antenna |
|
| Multi-communication cable |
|
| Tribrach and 30cm mounting pole |
|
| Carbon fiber pole for rover
|
Packaging & Shipping
Within 7 days after receive 100% payment
Original package
Our Services
your inquiry will be replied within 24 hours, we welcome your email and call at any time.
our products are original and 100% new. and they will be carefully checked before we ship them out.
we provide one year quality warranty, within one year since you bought the products from us, you will get our technology support.
Company Information
Shanghai Galaxy International Trade Co., Ltd., established in 2007, is located in Pudong Developing Zone, Shanghai, China. We are the professional supplier and producer of surveying instrument and accessories.
We carry almost all kinds of surveying instrument and accessories, like total station, electronic theodolite, automatic level, laser level, rotary laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff, USB cable for total station, battery and charger. And we are dealer of TOPCON, NIKON, LEICA, SOKKIA, PENTAX surveying instrument. Not only are we the supplier of instrument but we have our specialized engineer department (R&D) for maintaining and researching.
Nanjing Hanzhong Surveying Instruments Co., Ltd. is a company to provide professional surveying and mapping services for the country mapping units. The company set sales, repair and service, company is in specialized in sales of surveying instruments in demestic and abroad.
Mainly sales of total station, auto/digital level, auto/electronic theodolite, GPS, GNSS RTK, GPS, receiver, laser distance meter, handheld GIS. UAV. etc. And and some accessories for these surveying instruments. We can supply with trimble, leica sokkia, spectra, nikon, topcon, sanding, hi-target, south, kolida, sanding, chc, stonex, unistrong, foif brand. etc.
The Company's employees graduated from engineering, surveying and mapping professional institutions of higher learning, professional knowledge, is a high-quality sales and service team to provide you with excellent quality instrument service, customized, comprehensive, practical and efficient measuring solutions at the same time, also for users you track, intimate after-sales service.
Our aim: Integrity, professional, service
Our goal: To do the best mapping equipment supply service providers
