High Precision Split Core Current Transformer 0.333V Output

Name: High Precision Split Core Current Transformer 0.333V Output
Brand: all-electronics-online.com
SKU: 839342875
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 2/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GWCTSA016
Accuracy Grade:	0.5g
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

APPLICATION	SPECIFICATIONS
Current Measurement	Standard Input Current 0.5-150a
Electrical load monitoring	Frequency 50hz-400hz
Energy and sub-metering products	Custom design turns-ratio available
Network equipment	Standard accuracy 0.5
Instruments and sensors	Approximate weight 100g
Control systems	Clamping voltage on selected models
Go GREEN initiatives	ANS C57.13 and C12.20 Standards

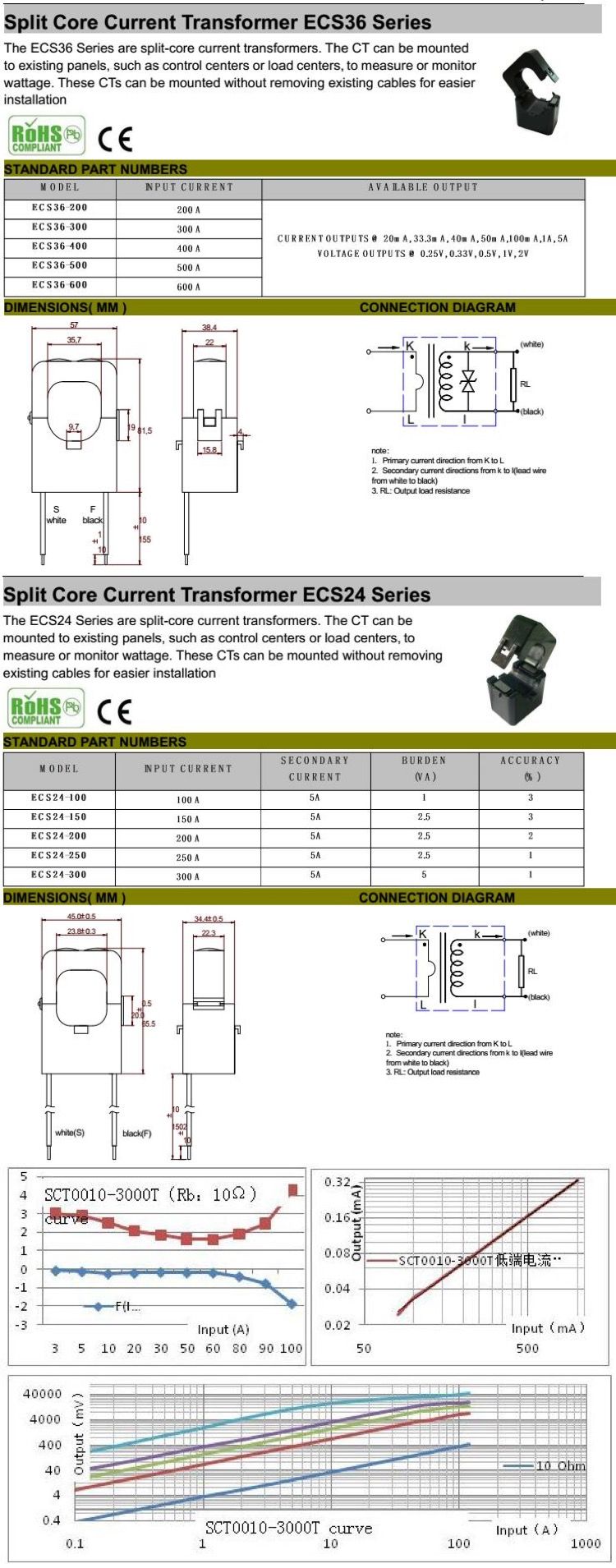

The split-core current transformers can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These current transformer's can be mounted without removing existing cables for easier installation.

1), Rated Primary Current(AMP. ) 50/60Hz: 50nom(1~42A max)

2), Max. Current (continuous): 60A

3), Turn ratio: Np: Ns=1: 2000

4), Current Ratio: 50A/0.333V

5), D. C. Resistance Max at 20 º C: 460 Ω

6), Accuracy@RL≤ 10Ω : 1%

7), Linearity@RL≤ 10Ω : 0.5%

8), Phase error at rated current range: ≤ 4°

9), Operating Temperature Range: -25~65º C

10), Storage Temperature Range: -35~85º C

11), Dielectric Withstanding Voltage(Hi-pot): 2.5KV/1mA/1min

12), Impulse Withstand Voltage: 5KV Peak

13), Insulation Resistance: DC500V/100MΩ Min

CAUTION
Before installation, safety precautions must be followed by licensed professional Never energize primary unless short circuited terminals or burden connected to secondary.

How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 6-10 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.

Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.

Warranty:
1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
