High Precision Standard Mini Clamp-on Current Transformer CT

Name: High Precision Standard Mini Clamp-on Current Transformer CT
Brand: all-electronics-online.com
SKU: 672659931
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q20A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Class:	0.1
Operating Temperature:	-20~55
Measuring Current Range:	0~200A
Dimensions:	48mm186mm27mm
Weight:	300g
Types:	Current Transformer CT
Color:	Black
Diameter:	20mm
Output Signal:	0-200mA or 0-2V AC
Ratio:	1000: 1 or 2000:1, Customized
Application:	Lighting
Type:	Current Transformer
Phase:	Single
Installation:	Clamp Type

Product Description

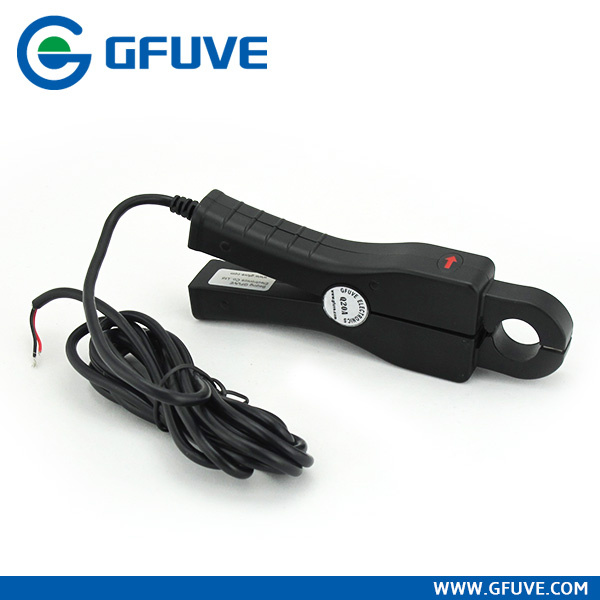

Q20A High Precision Standard Mini Clamp-on Current Transformer CT
Product Description
Q20A High precision standard mini clamp-on current transformer ct belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.
Characteristic and application
Suitable for 200 A cable online measurement.
Holding wire diameter: Φ 20mm
Dimension: 48mm× 186mm× 27mm
Load capacity: ≤ 4Ω
Installation: Clamp type
Output mode: Lead output

Primary current	Secondary current	Compensation turns	Precision
30A	30mA	No	Class 0.2%
80A	20mA	No	Class 0.2%
80A	20mA	400 circle	Class 0.2%
100A	20mA	No	Class 0.1%, 0.2%
100A	50mA	No	Class 0.1%, 0.2%
100A	100mA	No	Class 0.2%
200A	50mA	No	Class 0.1%, 0.2%
200A	100mA	No	Class 0.1%, 0.2%
200A	200mA	No	Class 0.2%

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	200 A
Max. Cont. Input current	240A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	200mA AC at nominal input current
Frequency range	40 Hz-2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C to +55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	20 mm
Standard	EN 61010-1
Dimensions	48mm x 186mm x 27mm
Weight	300 g

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
