High Presicion Closed Loop NEMA 23 Stepper Motor with Encoder

High Presicion Closed Loop NEMA 23 Stepper Motor with Encoder
Price: US $ 20-40/Piece
Min Order: 3/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: 57SHD4811-26Q
Holding Torque: 2000mn.M
Rated Current: 4.2A
Wire: Direct Wire
Shaft: Square Flat Shaft
Frame Size: 57X57X76mm
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Application: CNC Machine, Laser Machine
Brand: Casun
Certification: Ce, RoHS, TUV

Product Description



Casun closed-loop stepper motor offers
 2 phase ,3 phase hybrid stepper motor in three basic step angles :0.9 deg. 1.8deg. and 1.2 deg. and a wide rang e of frame size from Nema 8 (20mm) up to Nema 34 (86mm) , which also offers many axial options at the end of processing of the shaft ,hollow shaft  ,single flat shaft , double flat shat etc. This Series stepper motors offer high efficiency, low vibration, continuous operation with the security of closed loop performance without hunting or gain tuning. Smaller rotary stepping motor find widely applications in3d printers and many robotics. The larger NEMA frames are common in CNC machines and industrial applications. OEM & ODM are available,  your motors also can be customized as your requirements.

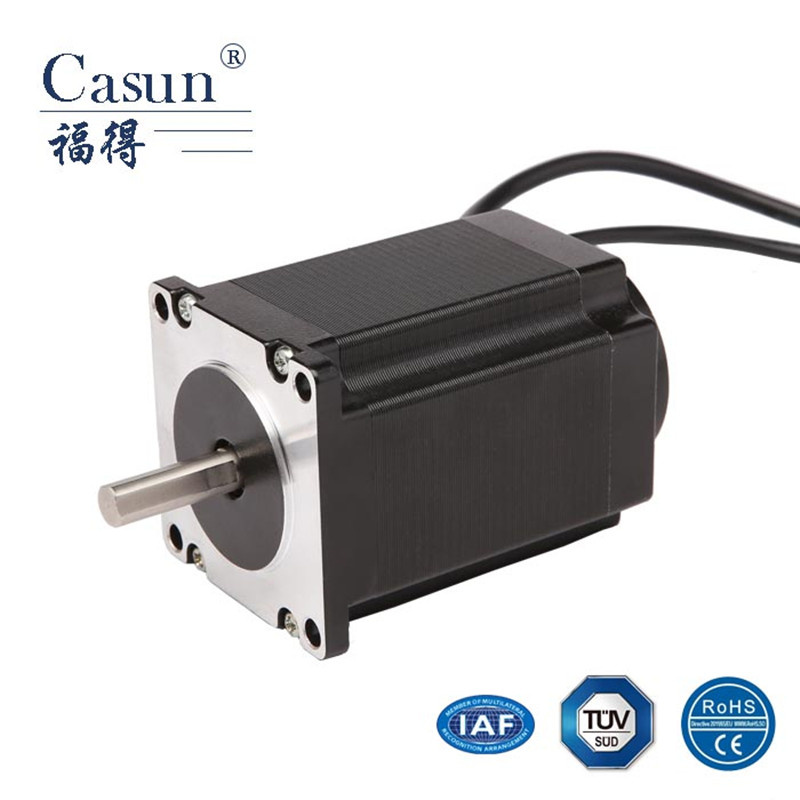

57x76mm 1.8 deg. 2000mN.m high torque high efficiency  nema 23 closed-loop stepper motor (57SHD4811-26Q1)

CASUN           57SHD4811-26Q1
Rated Current4.2A
Rated Voltage:2.1V
Step angle:1.8 degree
Number of phase :2 phase
Resolution1024  pps
Wire :4 wire
Size :57x57x76mm
Certification:CE , ROHS

General Specifications :
ModelHolding torque Rated current Resistance per phase Inductance per phase Detent torque Rotor inertiaLead wireMotor length
mN.mAohmmHmN.mg.cm²No.mm
57SHD00014000.5122022135441
57SHD00023500.41835221354
57SHD00063501.05.02812386
57SHD01016000.6122825155445
57SHD01196002.02.04.1251554
57SHD02039000.6124032220450
57SHD02047501.62.65.0322206
57SHD040810002.51.24.240260454
57SHD04097503.00.751.2402606
57SHD080117500.8124870460476
57SHD480517502.52.49.0704604
57SHD493430003.02.81110030004100

Above is our partial products parameter, for more products please contact us . Your samples can be customized.

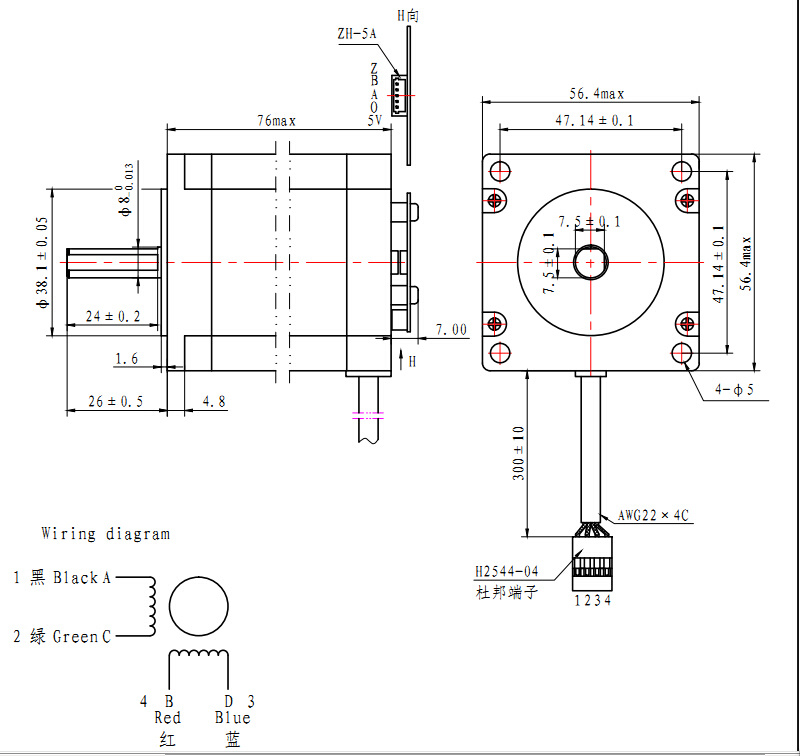

Figure Dimensions:





Our company :
Guangzhou Fude  Electronic Technology Co., Ltd., established in 2011, engaged in stepper motor research ,  development, production and sales , are one of the hi-tech enterprises. After several  years of technology researching  and development, market development, we gradually become the one of best quality stepper motor manufacturers in China. In order to offer our best service and  meet customer's  requirements , we all try our best to  customize the motor  and provide solutions.

Our company has
numerous world-class clients all over the mainland China, Taiwan, Europe and America, Japan, Korea and other countries or regions. Our products including hybrid stepper motor , lead screw stepper motor , planetary stepper motor with gearbox and closed-loop stepper motor . They are widely used in robots, sculpture, laser machine , medical machine, stage lighting,  3d printer,, automation equipment, SMT and other equipments.


Certifications:
1.We have pass ROHS & CE certifications
2.We have our own paten stepper motors.


Packing & Payment &Delivery :
Payment TermT/T, PayPal, Western Union, Cash, Escrow
Accepted Payment CurrencyUSD, CNY
Packaging Detailcusomized packages, poly bag/customized blister/color box etc. as per your need
Delivery Detail10 Day(s)
Delivety Porthuangpu,luogang,shenzhen
Accepted Delivery TermsFOB, EXW , CIF ,CFR etc
