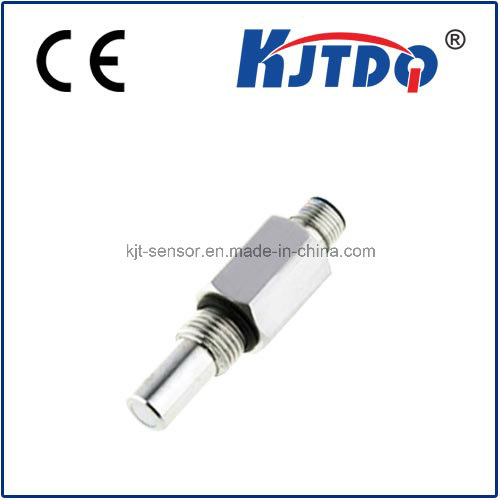

Name: High Pressure Sensor M18 Inductive Proximity Sensor Switch
Brand: all-electronics-online.com
SKU: 802176035
Availability: InStock
Rating: 4.6 (142 reviews)

Price:	US $ 34-35/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KJT-GY18-ZNK
Material:	Stainless Steel
Voltage Type:	DC Voltage
Protection Degree:	IP 67
Output Signal Type:	Digital Type
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Switch
Principle:	Inductive
Wires:	NPN/PNP 3 Wire
Application:	Position Sensor

Product Description

KJT-J12GY Series Proximity Sensor/ inductive proximity switch

Detailed Product Description

Features:

1) Shape code: Cylindrical

2) Housing material: Stainless steel

3) Connection: 2m PVC cable, M12 connector

4) Ambient temp.: -25~+70C.

5) Power display: None.

6) Ingress Protection Rating: IP67.

Dust completely unable to enter object.

No damage happens when housing immerses in water under designated hydraulic pressure.

7) Non-contact detection. Effectively avoids abradion, safe and reliable. Rarely abrasive wear.

8) Built-in ASLC ensures quick response, high frequency, stable performance.

9) Complete range of specification: Cylinder series: 1.5mm

10) Surge and reverse polarity protection

Mounting	Flush
SN	1.5mm
Power supply	10-36V DC
Housing size	M18*78
Thread size

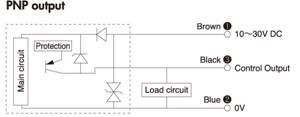

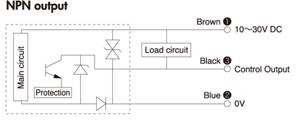

Output	NPN/PNP NO/NC
Temperature drift	≤±10%
Hysteresis	1-20%
Repeat accuracy	≤5%
Load current	≤150mA
Residual voltage	≤2.5V
Consumption current	≤15mA
Protection circuit	surge, overload, short-circuit, reverse polarity
Indicator	LED
Ambient temp.	-25 ~ +75ºC
Ambient RH	35-95%
Frequency	600Hz
Protection degree	IP67
Housing material	Stainless steel
Connection	M12 Connector

Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
