Antenk Electronics Co., Ltd. >> High Qualily a Type Receptacle Straight DIP, Half Shield USB 2.0

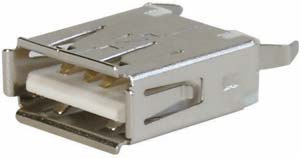

High Qualily a Type Receptacle Straight DIP, Half Shield USB 2.0

High Qualily a Type Receptacle Straight DIP, Half Shield USB 2.0
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1000/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: USB 2.0 B Type series 001
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Shield: Phosphor Bronze
Housing Material: PBT, UL94V-0 Rated
Contact: Phosphor Bronze
Type: USB Convertor
Certification: CE, UL

Product Description

High qualily  A Type Receptacle Straight Dip, Half shield of USB 2.0

Specifications:

Current Reating: 1.6A Max
Contact Resistance: 30 milliohms MAX
Dielectric Withstanding Voltage:500V AC AT Sea Levol
Insulation Resistance: 1000 Megohms MIN
Housing: Temperature Thermoplastics, LCP UL94V-0
Contact: Copper ALLOY T=0.25mm Piated Gold in Mating Area: Tin On Solder Talls
Shell: Iron T=0.30MM Nickel / Plating

Color Insulator: White, Black.


Packing:
Inside Packing: 1) Tray    2) Bag    3)Tube     4)Tape Reel
Outside Packing: Strong Carton Packing



We Antenk welcome OEM !

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
